47Hz Impact Current 60A Switch Mode Power Supplies 110v NES 350W

    Buy cheap 47Hz Impact Current 60A Switch Mode Power Supplies 110v NES 350W from wholesalers

    Buy cheap 47Hz Impact Current 60A Switch Mode Power Supplies 110v NES 350W from wholesalers
    • Buy cheap 47Hz Impact Current 60A Switch Mode Power Supplies 110v NES 350W from wholesalers

    47Hz Impact Current 60A Switch Mode Power Supplies 110v NES 350W

    Ask Lasest Price
    Brand Name : Winston/OEM
    Model Number : NES-350W
    Certification : CE,ROSH
    Price : USD24.2
    Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD
    Supply Ability : 10000PCS/Month
    Delivery Time : 3-15days after get payment.
    • Product Details
    • Company Profile

    47Hz Impact Current 60A Switch Mode Power Supplies 110v NES 350W

    47Hz Impact Current 60A Power Supply Single Output 110v 87% Efficiency NES 350W


    Summary

    • Single output: power 350w
    • Input voltage: 90-132VAC/180-264VAC by switch

    Technique parameter:

    Model

    NES-

    350-5

    NES-

    350-12

    NES-

    350-15

    NES-

    350-24

    NES-

    350-27

    NES-

    350-36

    NES-

    350-48

    NES-

    350-60

    NES-

    350-70

    NES-

    350-110

    DC output voltage current

    5V

    0-60A

    12V

    0-29A

    15V 0-

    23.2A

    24V 0-

    14.6A

    27V

    0-13A

    36V 0-9.7A48V 0-7.3A60V 0-5.83A

    70V

    0-5A

    48V 0-3.18A
    Wave and noise150mVp-p150mVp-p150mVp-p150mVp-p

    200mVp

    -p

    240mVp

    -p

    240mVp

    -p

    240mVp

    -p

    240mVp

    -p

    240mVp

    -p

    Inlet stability±0.5%±0.5%±0.5%±0.5%±0.5%±0.5%±0.5%±0.5%±0.5%±0.5%
    Load stablity±1%±0.5%±0.5%±0.5%±0.5%±0.5%±0.5%±0.5%±0.5%±0.5%
    Efficiency78%83%84%87%87%87%87%87%87%87%
    Adjustable range for DC voltage±10%±10%±10%±10%±10%±10%±10%±10%±10%±10%
    Impact currentCold start current 40A/115VAC 60A/230VAC
    Overload proctection105%-160% cut off the output, automatic recovery
    Over-voltage protection115%-135% shut down O/P voltage, re-power on to recover
    Setup rise hold up time800ms, 60ms, 50ms/230vac at full load
    Withstand voltage

    I/P-O/P: 1.5KV I/P-FG:1.5KV O/P-FG:0.5KV 1minute

    Isolation resistanceI/P-O/P I/P-FG O/P-FG: 500VDC/100MΩ
    Dimension215*115*50mm
    Packing48*31.5*26cm/20PCS/20kg

    The use of power supply


    1 . Use the power of money make sure the input voltage specification (110 v / 220 v / 380 v) and going to install and use the power of the input voltage of nominal value.Domestic use products, the main input 220 VAC, so have a selection of 110 V / 220 V, under normal circumstances, the selector switch in the 220 VAC, please pay more attention to customers to use.


    2 . In strict accordance with the drawings standard connection, check whether the input and output wires is correct before electricity, so as not to damage the user equipment


    PS: If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.


    Trade Information


    Trade Terms

    FOB ,CIF ,CFR,EXW,DDP

    Payment terms

    T/T,L/C,Western union,Paypal,Escrow,MoneyGram

    Payment conditions

    30% deposit in advance,70% balance before shipping.

    Delivery time

    3-7working days after deposit,2-4 working days for inventory

    Packing

    Neutral carton,Wooden case for large size

    Shipping

    By sea,by air and by express delivery

    Payment conditions

    30% deposit in advance,70% balance before shipping.

    Delivery time

    3-7working days after deposit,2-4 working days for inventory

    Packing

    Neutral carton,Wooden case for large size

    Shipping

    By sea,by air and by express delivery


    Product Picture

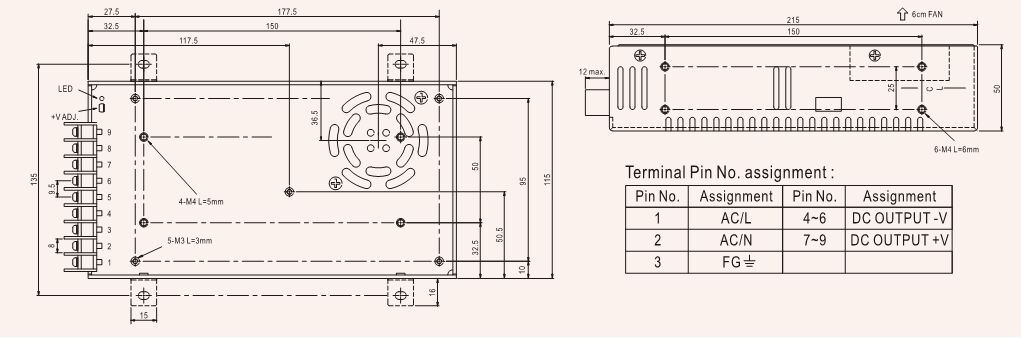

    Dimensions
