    25A Cold Start Current Switching Power Supply Overload Protection S - 600w

    Ask Lasest Price
    Brand Name : Winston/OEM
    Model Number : S-600W
    Certification : CE,ROSH
    Price : USD50.6
    Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD
    Supply Ability : 10000PCS/Month
    Delivery Time : 3-15days after get payment.
    • Product Details
    • Company Profile

    25A Cold Start Current Switching Power Supply Overload Protection S - 600w

    25A Cold Start Current Switching Power Supply Overload Protection S - 600w


    Summary

    • Single output: power 600w

    Technique parameter:

    ModelS-600-12S-600-24S-600-36S-600-48
    DC output voltage current12V 0-50A24V 0-250A36V 0-16.7A48V 0-12.5A
    Wave and noise100mVp-p150mVp-p150mVp-p150mVp-p
    Inlet stability±0.5%±0.5%±0.5%±0.5%
    Load stablity±0.5%±0.5%±0.5%±0.5%
    Efficiency83%85%86%87%
    Adjustable range for DC voltage±10%±10%±10%±10%
    input voltage range90-132VAC/180-264VAC by switch 254-370vdc 47-63Hz
    Inpact currentCold start current 50A/230VAC 25A/115VAC
    Overload proctection105%-300% cut off the output, automatic recovery
    Over-voltage protection115%-140% shut down O/P voltage, re-power on to recover
    Setup rise hold up time1000ms, 50ms, 16ms/230vac at full load
    Withstand voltage

    I/P-O/P: 1.5KV I/P-FG:1.5KV O/P-FG:0.5KV 1minute

    Isolation resistanceI/P-O/P I/P-FG O/P-FG: 500VDC/100MΩ
    Working temperature-10℃~+50℃
    Dimension247*127*63.5cm
    Packing44*26*27cm/12PCS/18kg



    The use of power supply

    1 . Use the power of money make sure the input voltage specification (110 v / 220 v / 380 v) and going to install and use the power of the input voltage of nominal value.Domestic use products, the main input 220 VAC, so have a selection of 110 V / 220 V, under normal circumstances, the selector switch in the 220 VAC, please pay more attention to customers to use.

    2 . In strict accordance with the drawings standard connection, check whether the input and output wires is correct before electricity, so as not to damage the user equipment.

    PS: If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.

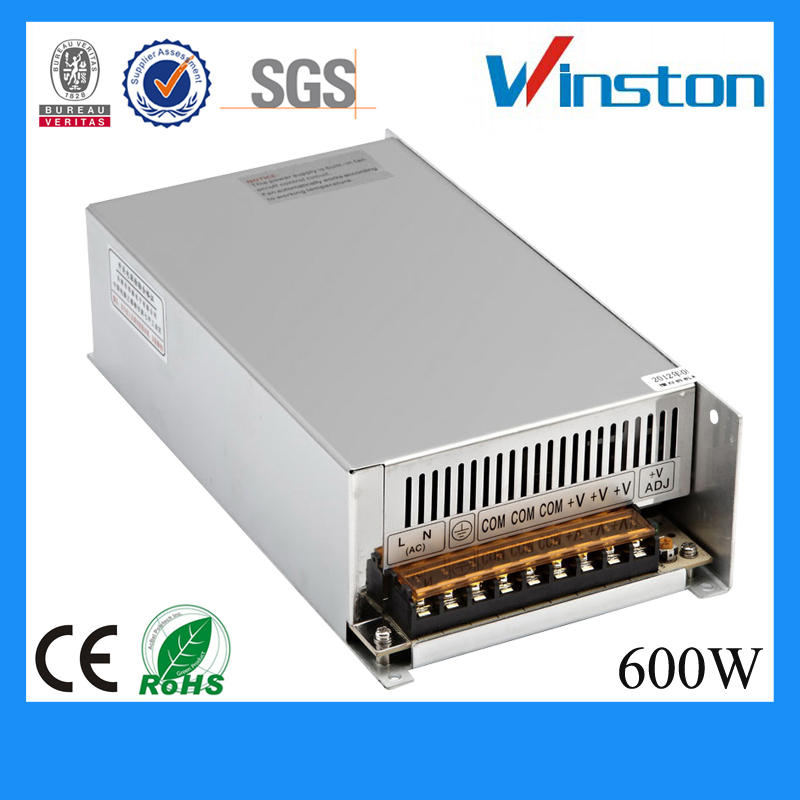

    Product Picture



    Dimensions
