    SP - 500W Switching Power Supply Input 100 - 240vac Over Voltage Protection

    Ask Lasest Price
    Brand Name : Winston/OEM
    Model Number : SP-500W
    Certification : CE,ROSH
    Price : USD55.44
    Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD
    Supply Ability : 10000PCS/Month
    Delivery Time : 3-15days after get payment.
    • Product Details
    • Company Profile

    SP - 500W Switching Power Supply Input 100 - 240vac Over Voltage Protection

    Single Output SP - 500W Power Supply Input 100 - 240vac Over Voltage Protection


    Summary

    • Single output: power 500w
    • PF>0.96@115VAC: PF>0.93@230VAC

    Technique parameter:

    ModelSP-500-12SP-500-15SP-500-24SP-500-48
    DC output voltage current12V 0-40A15V 0-32A24V 0-20A48V 0-10A
    Wave and noise240mVp-p240mVp-p240mVp-p300mVp-p
    Inlet stability±0.5%±0.5%±0.5%±0.5%
    Load stablity±0.5%±0.5%±0.5%±0.5%
    Efficiency84%84%85.5%87%
    Adjustable range for DC voltage±10%±10%±10%±10%
    Inpact currentCold start current 32A/230VAC 18A/115VAC
    Overload proctection105%-135% cut off the output, automatic recovery
    Over-voltage protection115%-140% shut down O/P voltage, re-power on to recover
    Setup rise hold up time1500ms, 50ms, 20ms/230vac at full load
    Withstand voltage

    I/P-O/P: 1.5KV I/P-FG:1.5KV O/P-FG:0.5KV 1minute

    Isolation resistanceI/P-O/P I/P-FG O/P-FG: 500VDC/100MΩ
    Packing40*26*22cm/8PCS/14.5kg



    The installation of power supply

    Please use the appropriate screw, fixed the power supply to the right environment, screw length should be less than 6 mm, not to the circuit boards, conductive danger to avoid touching the internal components. Power supply working space should have ventilation channel or exhaust equipment;In order to ensure the safety of using and reduce interference, please ensure that the grounding line should be good grounding, grounding line is greater than the AWGI#. After the installation, please measure the shell with the input, the output, insulation resistance in order to avoid electric shock.


    PS: If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.


    Our Services


    1. Prompt reply: Any inquiry or questions would be replied within 24 hours.

    2. Quality Product: Manufacture company, each of the products is tested and calibrated.

    3. Hospitality: Offer smiling service and your visiting is highly welcomed

    4. Fast delivery: delivery time is within 3-7 days usually, other occasion depends on the order qty.


    Trade Information


    Trade Terms

    FOB ,CIF ,CFR,EXW,DDP

    Payment terms

    T/T,L/C,Western union,Paypal,Escrow,MoneyGram

    Payment conditions

    30% deposit in advance,70% balance before shipping.

    Delivery time

    3-7working days after deposit,2-4 working days for inventory

    Packing

    Neutral carton,Wooden case for large size

    Shipping

    By sea,by air and by express delivery

    Payment conditions

    30% deposit in advance,70% balance before shipping.

    Delivery time

    3-7working days after deposit,2-4 working days for inventory

    Packing

    Neutral carton,Wooden case for large size

    Shipping

    By sea,by air and by express delivery

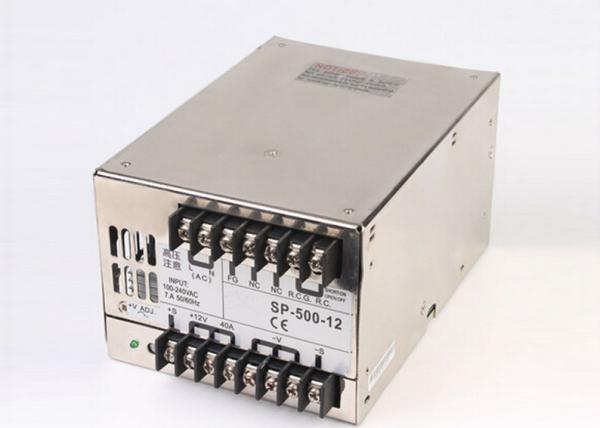

    Product Picture

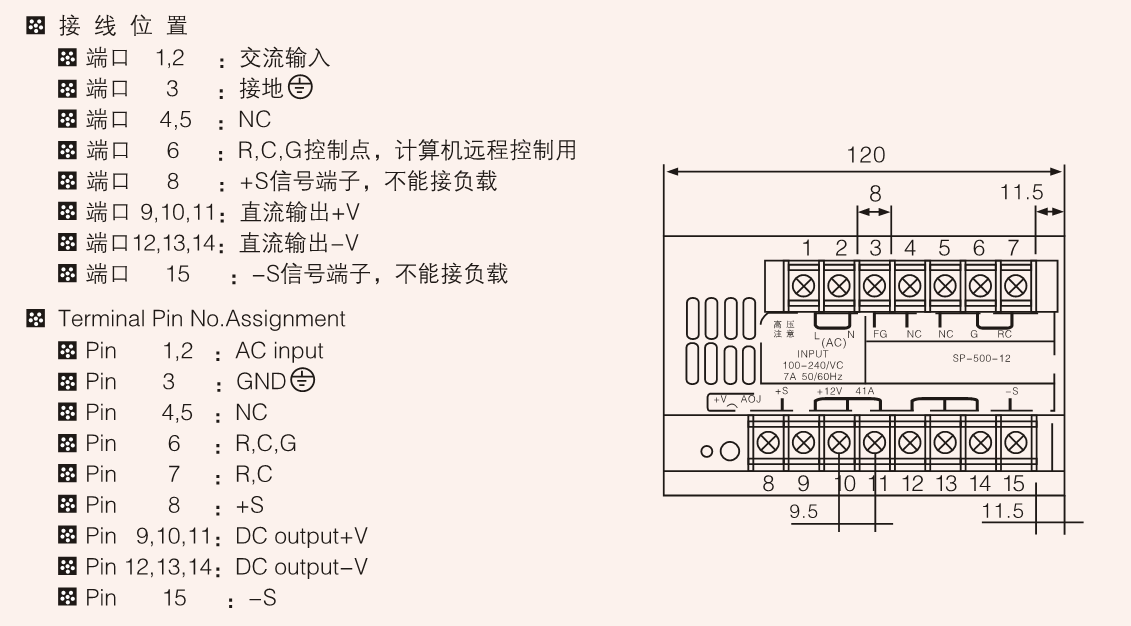

    Dimensions
