Single Output With PFC Switchmode Power Supply 199 * 99 * 50mm

    Buy cheap Single Output With PFC Switchmode Power Supply 199 * 99 * 50mm from wholesalers

    Buy cheap Single Output With PFC Switchmode Power Supply 199 * 99 * 50mm from wholesalers
    • Buy cheap Single Output With PFC Switchmode Power Supply 199 * 99 * 50mm from wholesalers

    Single Output With PFC Switchmode Power Supply 199 * 99 * 50mm

    Ask Lasest Price
    Brand Name : Winston/OEM
    Model Number : SP-200W
    Certification : CE,ROSH
    Price : USD24.1
    Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD
    Supply Ability : 10000PCS/Month
    Delivery Time : 3-15days after get payment.
    • Product Details
    • Company Profile

    Single Output With PFC Switchmode Power Supply 199 * 99 * 50mm

    Single Output With PFC Switching Power Supply 199 * 99 * 50mm Efficiency 79%


    Summary

    • Single output: power 200w
    • PF>0.96@115VAC: PF>0.93@230VAC

    Technique parameter:

    ModelSP-200-5SP-200-12SP-200-24SP-200-48
    DC output voltage current5V 0-40A12V 0-16.7A24V 0-8.4A48V 0-4.2A
    Wave and noise100mVp-p100mVp-p150mVp-p240mVp-p
    Inlet stability±0.5%±0.5%±0.5%±0.5%
    Load stablity±1%±0.5%±0.5%±0.5%
    Efficiency75%79%83%84%
    Adjustable range for DC voltage±10%±10%±10%±10%
    input voltage range85-264VAC 120-370VDC 47-63Hz
    Inpact currentCold start current 40A/230VAC
    Overload proctection105%-150% cut off the output, automatic recovery
    Over-voltage protection110%-135% shut down O/P voltage, re-power on to recover
    Setup rise hold up time600ms, 30ms, 20ms/230vac at full load
    Withstand voltage

    I/P-O/P: 1.5KV I/P-FG:1.5KV O/P-FG:0.5KV 1minute

    Isolation resistanceI/P-O/P I/P-FG O/P-FG: 500VDC/100MΩ
    Working temperature-10℃~+60℃
    Overall dimension199*99*50mm
    Weight0.85kg
    Packing42.5*28.5*22.6cm/20PCS/17kg

    PS: If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.


    Our Services


    * Prompt reply: Any inquiry or questions would be replied within 24 hours.


    * Quality Product: Manufacture company, each of the products is tested and calibrated.


    * Hospitality: Offer smiling service and your visiting is highly welcomed


    * Fast delivery: delivery time is within 3-7 days usually, other occasion depends on the order qty.


    Trade Information


    Trade Terms

    FOB ,CIF ,CFR,EXW,DDP

    Payment terms

    T/T,L/C,Western union,Paypal,Escrow,MoneyGram

    Payment conditions

    30% deposit in advance,70% balance before shipping.

    Delivery time

    3-7working days after deposit,2-4 working days for inventory

    Packing

    Neutral carton,Wooden case for large size

    Shipping

    By sea,by air and by express delivery

    Payment conditions

    30% deposit in advance,70% balance before shipping.

    Delivery time

    3-7working days after deposit,2-4 working days for inventory

    Packing

    Neutral carton,Wooden case for large size

    Shipping

    By sea,by air and by express delivery

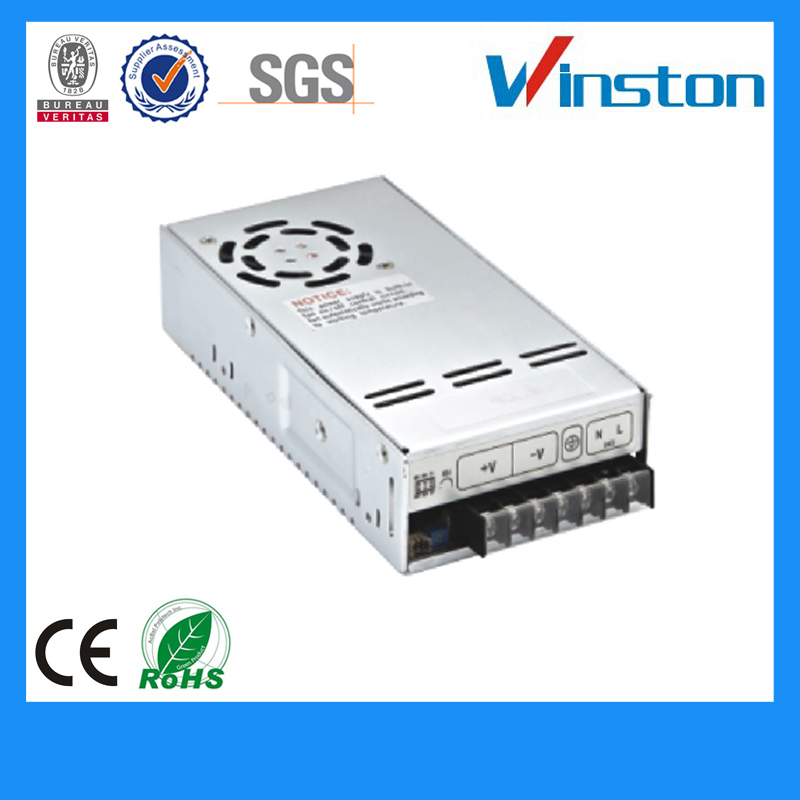

    Product Picture



    Dimensions
