    80mVp - p Single Output Switching Power Supply NES-25W 47 - 63Hz

    80mVp-p Single Output Switching Power Supply NES-25W 47 - 63Hz


    Summary

    • Single output: power 25w
    • Input voltage: 85-264VAC 120-370VDC

    Technique parameter:

    ModelNES-25-5NES-25-12NES-25-15NES-25-24NES-25-48
    DC output voltage current5V 0-5A12V 0-2.5A15V 0-1.7A24V 0-1.1A48V 0-0.57A
    Wave and noise80mVp-p120mVp-p150mVp-p200mVp-p240mVp-p
    Inlet stability±0.5%±0.5%±0.5%±0.5%±0.5%
    Load stablity±1%±0.5%±0.5%±0.5%±0.5%
    Efficiency78%83%84%86%86%
    Adjustable range for DC voltage±10%±10%±10%±10%±10%
    input voltage range85-264VAC 120-370VDC 47-63Hz
    Inpact currentCold start current 45A/230VAC
    Overload proctection105%-160% cut off the output, automatic recovery
    Over-voltage protection115%-135% shut down O/P voltage, re-power on to recover
    Setup rise hold up time800ms, 60ms, 50ms/230vac at full load
    Withstand voltage

    I/P-O/P: 1.5KV I/P-FG:1.5KV O/P-FG:0.5KV 1minute

    Isolation resistanceI/P-O/P I/P-FG O/P-FG: 500VDC/100MΩ
    Working temperature-10℃~+50℃
    Overall dimension98*82*35mm
    Weight0.3kg
    Packing41.5*22.7*27.8cm/60PCS/18kg

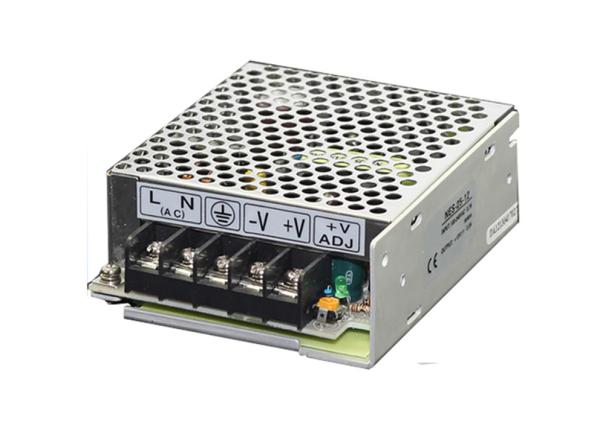

    Product Picture

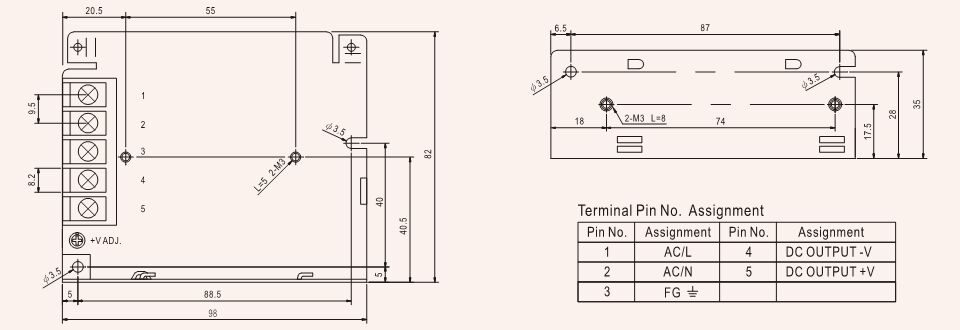

    Dimensions



    The installation of power supply

    Please use the appropriate screw, fixed the power supply to the right environment, screw length should be less than 6 mm, not to the circuit boards, conductive danger to avoid touching the internal components. Power supply working space should have ventilation channel or exhaust equipment;In order to ensure the safety of using and reduce interference, please ensure that the grounding line should be good grounding, grounding line is greater than the AWGI#. After the installation, please measure the shell with the input, the output, insulation resistance in order to avoid electric shock.
