    Original MS-100W Switching Power Supply Re - power On To Recovery

    Ask Lasest Price
    Brand Name : Winston/OEM
    Model Number : MS-100W
    Certification : CE,ROSH
    Price : USD9.02
    Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD
    Supply Ability : 10000PCS/Month
    Delivery Time : 3-15days after get payment.
    • Product Details
    • Company Profile

    Original MS-100W Switching Power Supply Re - power On To Recovery

    MS-100W Single Output Mini - size Power Supply Re - power On To Recovery


    Summary

    • Single output: power 100w
    • Input voltage: 90-132VAC/180-264VAC by switch

    Technique parameter:

    ModelMS-100-5MS-100-12MS-100-15MS-100-24
    DC output voltage current5V 0-20A12V 0-8.5A15V 0-7A24V 0-4.5A
    Wave and noise100mVp-p120mVp-p120mVp-p150mVp-p
    Inlet stability±0.5%±0.5%±0.5%±0.5%
    Load stablity±0.5%±0.5%±0.5%±0.5%
    Efficiency80%83%84%86%
    Adjustable range for DC voltage±10%±10%±10%±10%
    input voltage range90-132VAC/180-264VDC by switch 254-370VDC 47-63Hz
    Inpact currentCold start current 30A/230VAC 15A/115VAC
    Overload proctection105%-150% cut off the output, automatic recovery
    Over-voltage protection115%-135% shut down O/P voltage, re-power on to recover
    Setup rise hold up time200ms, 50ms, 20ms/230vac at full load
    Withstand voltage

    I/P-O/P: 1.5KV I/P-FG:1.5KV O/P-FG:0.5KV 1minute

    Isolation resistanceI/P-O/P I/P-FG O/P-FG: 500VDC/100MΩ
    Working temperature-10℃~+50℃
    Overall dimension159*98*38mm
    Weight0.55kg
    Packing34*32*24cm/30PCS/16.5kg


    Product Picture

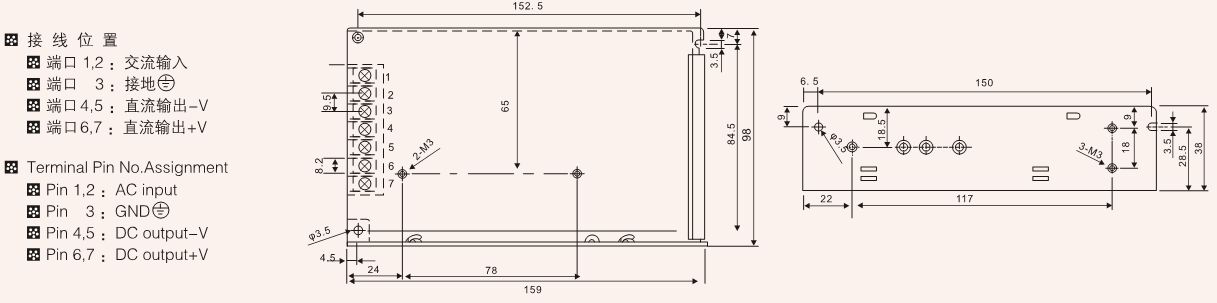

    Dimensions



    The installation of power supply

    Please use the appropriate screw, fixed the power supply to the right environment, screw length should be less than 6 mm, not to the circuit boards, conductive danger to avoid touching the internal components. Power supply working space should have ventilation channel or exhaust equipment;In order to ensure the safety of using and reduce interference, please ensure that the grounding line should be good grounding, grounding line is greater than the AWGI#. After the installation, please measure the shell with the input, the output, insulation resistance in order to avoid electric shock.
