    DRP - 240W Din Rail Power Supply Kits 1.2KG Low - loss Nature Air Cooling

    Ask Lasest Price
    Brand Name : Winston/OEM
    Model Number : DRP - 240W
    Certification : CE,ROSH
    Price : USD48.4
    Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD
    Supply Ability : 10000PCS/Month
    Delivery Time : 3-15days after get payment.
    • Product Details
    • Company Profile

    DRP - 240W Din Rail Power Supply Kits 1.2KG Low - loss Nature Air Cooling

    DRP - 240W Single Output Din Rail Power Supply 1.2KG Low - loss Nature Air Cooling


    Summary

    • Single output: power 240w
    • Input voltage: 85-264VAC 120-370VDC

    Features


    ● Comply with EN61000-3-2 passive PFC function
    ● High efficiency as 89%, low-loss
    ● Protection type :cutting-out/over-load/ over-voltage/ over-temperature
    ● Nature air cooling
    ● Built-in constant current limit circuit
    ● Installation rail:TS-35/7.5 or TS-35/15
    ● Comply with UL508 (Industrial control equipment)
    ● Comply with EN61000-6-2(EN50082-2)
    ● 100% full-load age test
    ● Three years quality warranty


    Technique parameter:

    ModelDRP-240-24DRP-240-48
    DC output voltage current24V 0-10A48V 0-5A
    Wave and noise80mVp-p150mVp-p
    Inlet stability±0.5%±0.5%
    Load stablity±1%±0.5%
    Efficiency84%85%
    Adjustable range for DC voltage±10%±10%
    input voltage range85-264LAC 120-370VDC 47-63Hz
    Inpact currentCold start current 45A/230VAC 27A/115VAC
    Overload proctection105%-150% cut off the output, automatic recovery
    Over-voltage protection30-36V for 24V model, 54-60V for 48V model
    Setup rise hold up time800ms, 40ms, 20ms/230vac at full load
    Withstand voltage

    I/P-O/P: 1.5KV I/P-FG:1.5KV O/P-FG:0.5KV 1minute

    Isolation resistanceI/P-O/P I/P-FG O/P-FG: 500VDC/100MΩ
    Working temperature-10℃~+50℃
    Overall dimension125.125.100mm
    Weight1.5kg
    Packing41.5*27.5*25cm/12PCS/14.5kg

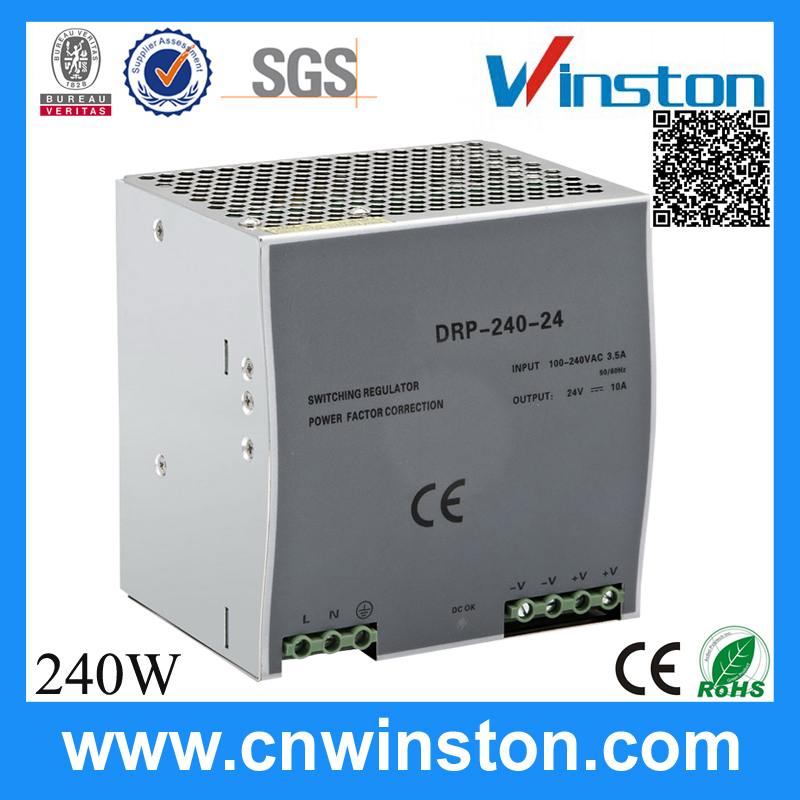

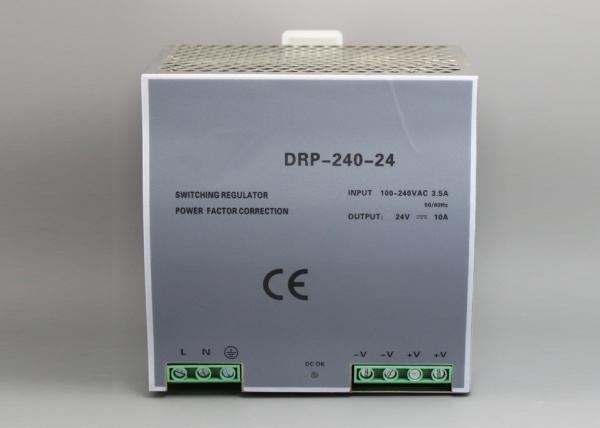

    Product Picture



    Dimensions



    The installation of power supply

    Please use the appropriate screw, fixed the power supply to the right environment, screw length should be less than 6 mm, not to the circuit boards, conductive danger to avoid touching the internal components. Power supply working space should have ventilation channel or exhaust equipment;In order to ensure the safety of using and reduce interference, please ensure that the grounding line should be good grounding, grounding line is greater than the AWGI#. After the installation, please measure the shell with the input, the output, insulation resistance in order to avoid electric shock.

    The use of power supply

    1 . Use the power of money make sure the input voltage specification (110 v / 220 v / 380 v) and going to install and use the power of the input voltage of nominal value.Domestic use products, the main input 220 VAC, so have a selection of 110 V / 220 V, under normal circumstances, the selector switch in the 220 VAC, please pay more attention to customers to use.

    2 . In strict accordance with the drawings standard connection, check whether the input and output wires is correct before electricity, so as not to damage the user equipment.

    PS: If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.
