    MY Series General Purpose Solid State Relays Ssr Solid State Relays

    Ask Lasest Price
    Brand Name : Winston/OEM
    Model Number : MY Series
    Certification : CE,ROSH
    Price : USD0.45 to USD1
    Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD
    Supply Ability : 10000PCS/Month
    Delivery Time : 3-15days after get payment.
    • Product Details
    • Company Profile

    MY Series General Purpose Solid State Relays Ssr Solid State Relays

    MY Series General Purpose Solid State Relays Low Power Miniature

    Description

    1 . Universal relay cross to Omron MY series.
    2 . LED and test lever options available.
    3 . Matching socket available.

    Technical data
    ContactForm2A,2B,2C 3A,3B,3C 4A, 4B, 4C
    Load (Resistive Leakage)5A/240VAC 28VDC
    3A/240VAC 28VDC
    Contact resistance (initial)≤100mΩ
    MaterialSilver alloy
    Electric life≥10 5
    Machine life (300 times/min)≥10 7
    Pick-up voltage (25 deg.)DC:≤75%×rated voltage
    AC:≤80%×rated voltage
    Release voltage (25 deg.)DC:≥10%×rated voltage
    AC:≥30%×rated voltage
    Maximum voltage (25 deg.)110%×rated voltage
    Specifications of coilsDC6-220V (Customizable Voltage )
    AC6-380V (Customizable Voltage )
    Coil powerDC0.9 W
    AC1.2 VA
    Pick-up time (rated voltage)≤20ms
    Release time (rated voltage)≤20ms
    Initial withstandBetween Same-pole contacts1000VAC/1min (leakage current:1mA)
    Between Different-pole contacts1200VAC/1min (leakage current:1mA)
    Between contact and coil1500VAC/1min (leakage current:1mA)
    Insulation resistance≥100mΩ(500VDC)
    Ambient temperature-55-70 deg.
    Ambient humidity35%-80%RH
    Atmospheric pressure86-106KPa
    Shock resistance10G (sinusoidal half-wave pulse: 11ms)
    Vibration resistance10-55Hz (double amplitude: 1.0mm)
    InstallationPCB; Guide socket; Screw
    PackingInner box20 relays each carton;
    50 each bubble box;
    Outer case30 cartons each case;
    10 bubble boxes each case;
    Dimension of outer case330×310×345MM
    440×310×345MM
    WeightApprox.35g each relay;

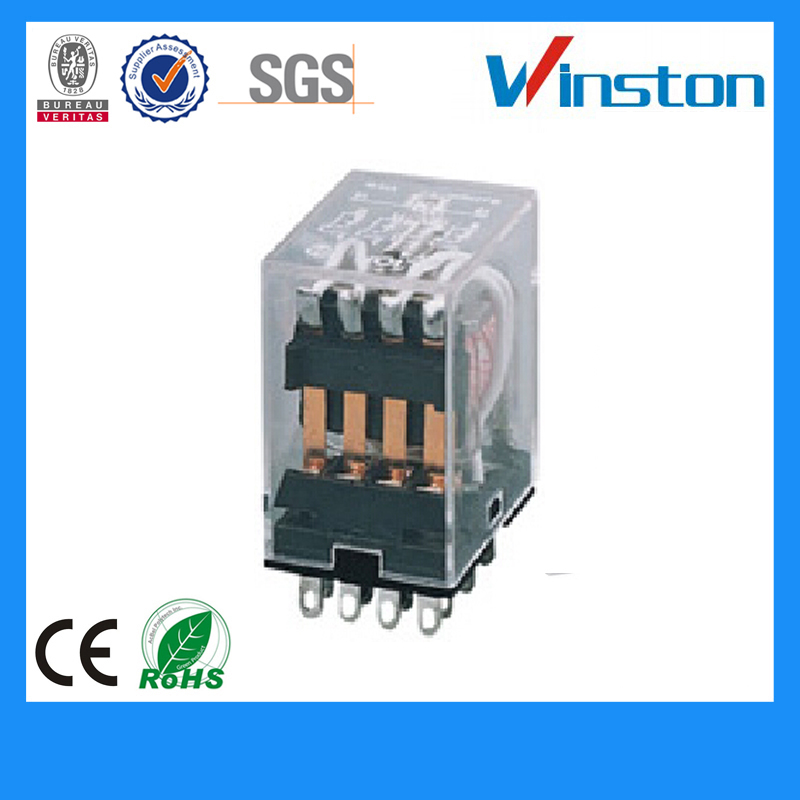

    Product picture
