    ATDV - N / Y SSR Twin Solid State Relays Telemecanique Timer Sealed 5A

    Ask Lasest Price
    Brand Name : Winston/OEM
    Model Number : ATDV-N/Y
    Certification : CE,ROSH
    Price : USD3 to USD5
    Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD
    Supply Ability : 10000PCS/Month
    Delivery Time : 3-15days after get payment.
    • Product Details
    • Company Profile

    ATDV - N / Y SSR Twin Solid State Relays Telemecanique Timer Sealed 5A

    ATDV - N / Y SSR Twin Timer Relay / Telemecanique Timer Relay Sealed 5A

    Professional technology
    High Quanlity
    Lower price

    Technical data
    ClassificationMulti Range TimerTwin TimerTwin Timer
    Specification ModelAH2-N/YATDV-NATDV-Y
    Dimension61H×49W×70D 88H×58W×68D61H×49W×70D88H×58W×68D
    Mounting & SocketSurface(-N)PF083A PS-08P2CF-08 PS-08PF083A
    Flush(-Y)US-08 P3G-08PF083AUS-08 P3G-08
    Full Timing RangeA: 1S,10S,1M,10M
    B: 3S,30S,3M,30M
    C: 6S,60S,6M,60M
    D: 1M,10M,1H,10H
    E: 3M,30M,3H,30H
    6S×6S,6S×60S, 60S×6S,60S×60S, 6M×6M,6M×60M, 60M×6M,60M×60M, Longest time 12Hours upon clients' request6S×6S,6S×60S, 30S×30S, 30S×60S 60S×6S,60S×60S, 6M×6M,6M×60M, 60M×6M,60M×60M, Longest time 12Hours upon clients' request
    Rated Voltage (V)AC: 12,24,110,220, 240 50/60Hz DC: 12,24AC: 12,24,110,220,240 50/60Hz DC: 12,24AC: 12,24,110,220,240 50/60Hz DC: 12,24
    Indicator OperatingON-UP Two Indicator LampON,OFF OperatingON,OFF Operating
    O/P ContactModelAH2-N/AH2-YATDV-NATDV-Y
    Time Limit 1C5A5A5A
    Time Limit 2C
    Instantaneous 1C5A
    LifeMechanical5×106 Times5×106 Times5×106 Times
    Electrical105 Times105 Times105 Times
    AccuracyRepeat Error±1% max±1% max±2% max
    Setting Error±10% max±10% max±20% max
    Voltage Error±1% max±1% max±1% max
    Temp Error±2% max±2% max±2% max
    Reset Time0.1 sec max0.2 sec max0.2 sec max
    Consumed Power3VA3VA3VA
    Ambient temperature-10oC~+55oC-10oC~+55oC-10oC~+55oC
    Ambient Huminity48~85% RH48~85% RH48~85% RH
    Weight220g160g210g

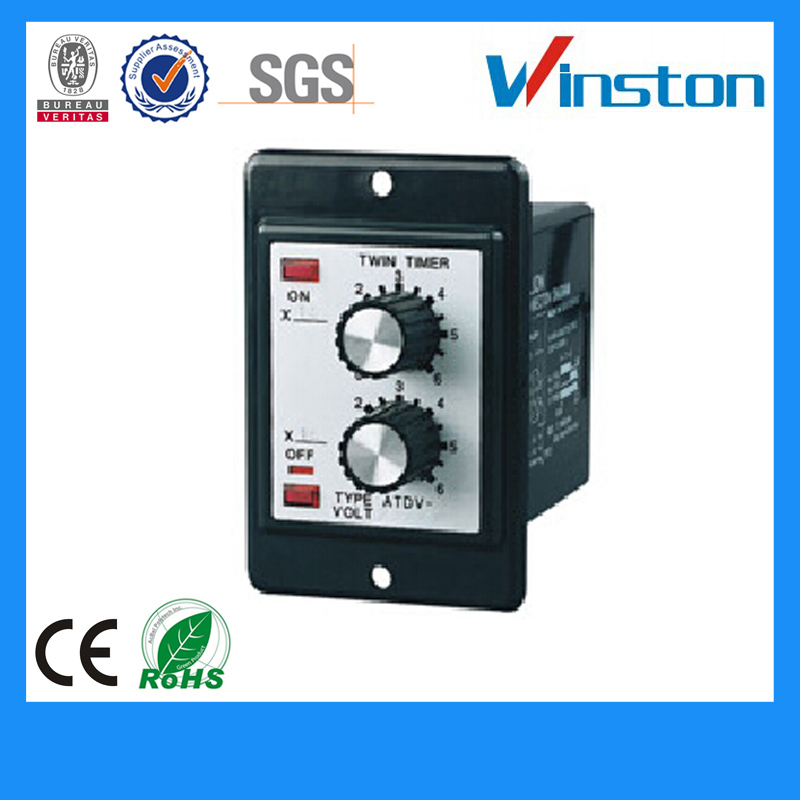

    Product picture
