MSF - 10w Single Output Ultrathin Switching Power Supply Cold Start Current 30A / 230VAC

    Buy cheap MSF - 10w Single Output Ultrathin Switching Power Supply Cold Start Current 30A / 230VAC from wholesalers

    Buy cheap MSF - 10w Single Output Ultrathin Switching Power Supply Cold Start Current 30A / 230VAC from wholesalers
    • Buy cheap MSF - 10w Single Output Ultrathin Switching Power Supply Cold Start Current 30A / 230VAC from wholesalers
    • Buy cheap MSF - 10w Single Output Ultrathin Switching Power Supply Cold Start Current 30A / 230VAC from wholesalers

    MSF - 10w Single Output Ultrathin Switching Power Supply Cold Start Current 30A / 230VAC

    Ask Lasest Price
    Brand Name : Winston/OEM
    Model Number : MSF-10w
    Certification : CE,ROSH
    Price : Negotiable
    Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD
    Supply Ability : 10000PCS/Month
    Delivery Time : 3-15days after get payment.
    • Product Details
    • Company Profile

    MSF - 10w Single Output Ultrathin Switching Power Supply Cold Start Current 30A / 230VAC

    Single Output Ultrathin Power Supply 78*48*21 Cold Start Current 30A / 230VAC


    Summary

    • Single output: power 10w
    • Input voltage: 85-264VAC 120-370VDC

    Technique parameter:

    ModelMSF-10-5MSF-10-12MSF-10-15MSF-10-24
    DC output voltage current5V 0-2A12V 0-1A15V 0-0.8A24V 0-0.5A
    Wave and noise50mVp-p50mVp-p50mVp-p50mVp-p
    Inlet stability±0.5%±0.5%±0.5%±0.5%
    Load stablity±1%±0.5%±0.5%±0.5%
    Efficiency68%71%72%75%
    Adjustable range for DC voltage±10%±10%±10%±10%
    input voltage range85-264VAC 120-370VDC 47-63Hz
    Inpact currentCold start current 30A/230VAC
    Overload proctection105%-135% cut off the output, automatic recovery
    Over-voltage protection
    Setup rise hold up time200ms, 50ms, 20ms/230vac at full load
    Withstand voltage

    I/P-O/P: 1.5KV I/P-FG:1.5KV O/P-FG:0.5KV 1minute

    Isolation resistanceI/P-O/P I/P-FG O/P-FG: 500VDC/100MΩ
    Working temperature-10℃~+50℃
    Overall dimension78*48*21mm
    Weight0.15kg
    Packing24.5*17.5*26.5*cm/100PCS/15kg

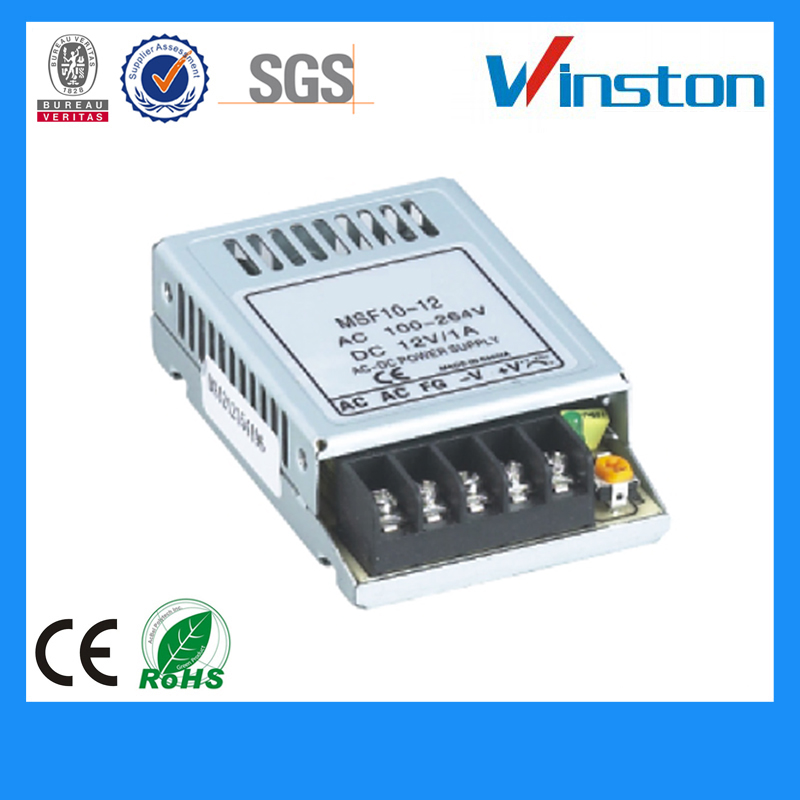

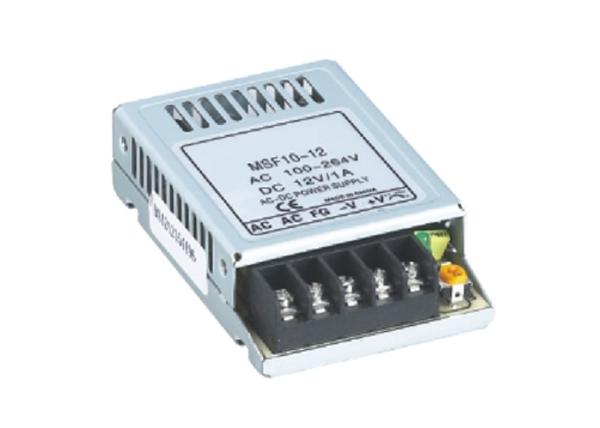

    Product Picture



    Dimensions



    Where is our power supply use?

    1.Power tools series:Electric saw,Drilling machine,Ginder,Sand blast Machine,Puching Machine,Weeding Machine,Air Compressor etc.

    2.Office series:Computer,Printer,LCD Monitor,Scanning Machine etc.

    3.Household Appliance series:Dust Collector,Fan Lamp or LED,Sewing Machine etc.

    4.Kitchen Appliance series:Microwave Oven,Fridge,Freezr,Coffemarker etc.

    5.Industrial Equipment series:Shipping,Vehicle,Metalhalide lamp,Solor system,Wind power generation etc.

    6.Electric filed series:TV,VCRS,Radio ect.

    PS: If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.
