    DC 10W / 20W Aluminium Industrial Electrical Heaters Din Rail Temperature Limiting

    Ask Lasest Price
    Brand Name : Winston/OEM
    Model Number : HGK047 10W 20W 30W
    Certification : CE,ROSH
    Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD
    Supply Ability : 10000PCS/Month
    Delivery Time : 3-15days after get payment.
    • Product Details
    • Company Profile

    DC 10W / 20W Aluminium Industrial Electrical Heaters Din Rail Temperature Limiting

    DC 10W / 20W Aluminium Industrial Electrical Heaters Din Rail Temperature Limiting

    Application

    ● Pressure clamp conectors

    ● Dynamic heating up

    ● Wide voltage range

    ● Temperature limiting

    ● Energy saving

    ● Clip fixing

    ● Quick installation


    These heaters are used in enclosures where damage from condensation must be prevented, or where the temperature may not fall below a minimum value. The aluminium profile heater body design has a chimney effect and distributes the heat evenly. The heaters are designed for permanent operation. Pressure clamb connectors save time and simplify installation.

    TECHNICAL PARAMETER

    Operating voltage

    120-240V AC/DC* (min. 110V, max. 265V)

    Heating element

    PTC resistor, temperature limiting

    Heater body

    extruded aluminium profile, anodised

    Connection

    3 pressure clamps for stranded wire 0.5-1.5mm² (with wire end ferrule) and rigid wire 0.5- 2.5mm²

    Connection casing

    plastic according to UL94 V-0, black

    Mounting

    clip for 35mm DIN rail, EN 60715

    Fitting position

    vertical airflow (air outlet up, connection on bottom)

    Operating/Storage temperature

    -45 to +70 °C (-49 to +158 °F)

    Operating / Storage humidity

    max. 90 % RH (non-condensing)

    Protection type/Protection class

    IP20 / I (earthed)

    Approvals

    VDE + UL File No. E150057

    Accessoires

    screw fixing, Art. No. 09024.0-00 (1 packing unit = 2 pieces)

    * Operating with voltages below 140V AC/DC reduces heating performance by approx. 10%.

    Art. No.

    Operating voltage

    Heating capacity⊃1;

    Inrush current max.

    Pre-fuse T (time delay)

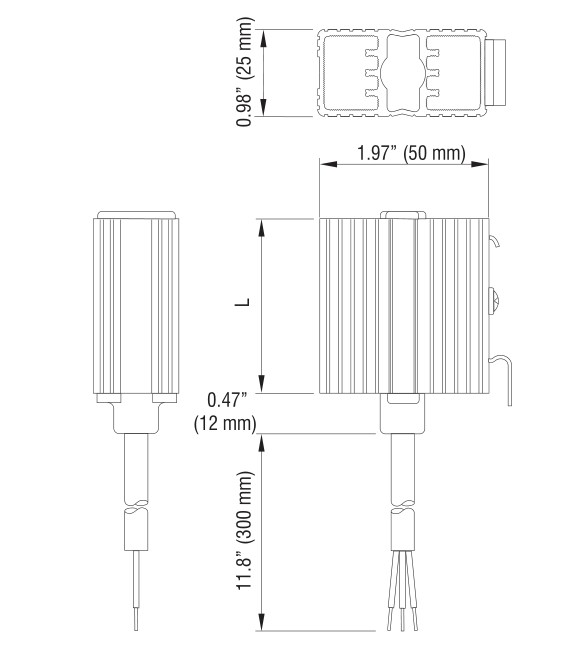

    Length (L)

    Weight (approx.)

    Connection

    04700.0-00

    120-240V AC/DC

    10W

    1.0A

    1A

    52mm

    0.1kg

    3 x 0,5mm2; x 300mm cable (silicone)

    04701.0-00

    120-240V AC/DC

    20W

    2.5A

    2A

    60mm

    0.2kg

    3 x 0,5mm2; x 300mm cable (silicone)

    04702.0-00

    120-240V AC/DC

    30W

    3.0A

    2A

    70mm

    0.2kg

    3 x 0,5mm2; x 300mm cable (silicone)

    04700.9-00

    110-120V AC/DC

    10W

    1.0A

    1A

    52mm

    0.1kg

    3 x AWG 20 x 300mm cable

    04701.9-00

    110-120V AC/DC

    20W

    1.5A

    2A

    70mm

    0.2kg

    3 x AWG 20 x 300mm cable

    04702.9-00

    110-120V AC/DC

    30W

    1.5A

    2A

    100mm

    0.2kg

    3 x AWG 20 x 300mm cable


    1; at 20°C (68°F) ambient temperature;
    2; (min. 110V, max 265V) Operating with voltages below 140V AC/DC reduces heating performance by approx. 10%.

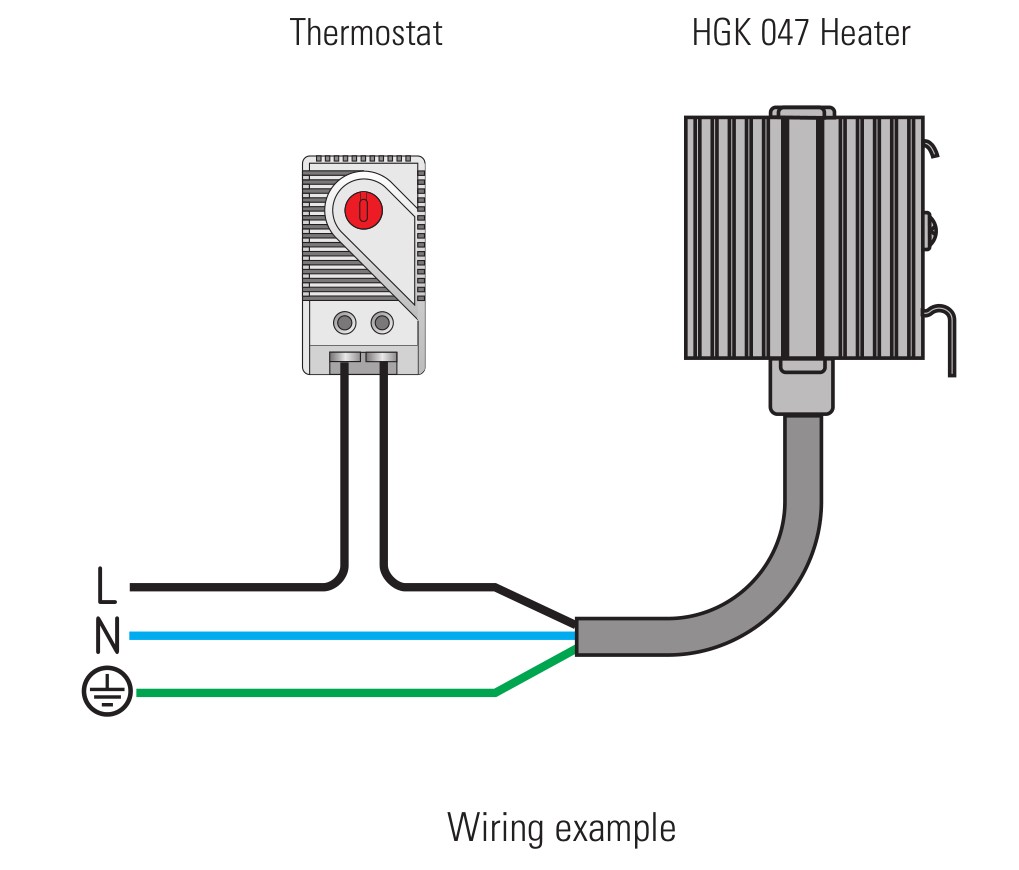

    WIRING DIAGRAM


    Product picture
