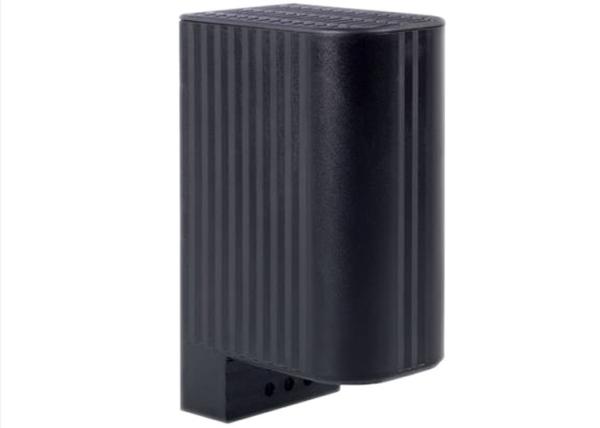

    CS060150W Industrial Electric Heaters Touch Safe , Hazardous Area Heater IP20

    Ask Lasest Price
    Brand Name : Winston/OEM
    Model Number : CS060 50W 100W 150W
    Certification : CE,ROSH
    Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD
    Supply Ability : 10000PCS/Month
    Delivery Time : 3-15days after get payment.
    • Product Details
    • Company Profile

    CS060150W Industrial Electric Heaters Touch Safe , Hazardous Area Heater IP20

    CS060150W Industrial Electric Heaters Touch Safe , Hazardous Area Heater IP20


    ● Low surgace temperature

    ● Quick mounting due to clip fixing

    ● Doble insulated(plastic)

    ● Wide ovltage range

    ● Small size


    Touch-safe heater for the use in enclosures with electrical/electronical components.

    The design of the heater supports the natural convection which results in a high air-current of warm air.

    The surface temperatures on the accessible side surfaces of he housing are kept down as a result of the heater design.

    Our complete range of thermostats and hygrostats can directly be connected to the heater CS 060.

    This heater is also avaiable in a version with plug-in thermostat requiring no additional wiring (CSF 060).

    Both versions are designed for permanent operation.

    TECHNICAL PARAMETER

    Operating voltage

    120-240V AC/DC* (min. 110V, max. 265V)

    Heating capacity

    See table

    Heater element

    PTC resistor-temperature limiting

    Surface temperature

    <80 °C(176 °F),except upper protective grille

    Connection

    4-pole terminal 2.5mm2, torpue 0.8Nm max.

    Casing

    Plastic according to UL94-V-0, black

    Mounting

    Clip for 35mm DIN rail, EN 50022

    Fitting position

    Vertical

    Operating/Storage temperature

    -45 to +70 °C (-49 to +158 °F)

    Protection type/Protection class

    IP20 / II (double insulated)

    Accessoires

    Mounting clips (see illustration), Art. No. 09008.0-01

    Note

    Other voltages on request

    Operating with voltages below 140V AC/DC reduces heating performance by approx.10%

    Art. No.

    Heating capacity⊃1;

    Inrush current (max.)

    Pre-fuse T (time-delay)

    Air outlet temperature⊃2;

    Dimensions

    Weight (approx.)

    06000.0-00

    50W

    2.5A

    4A

    +86°C (186.8°F)

    110 x 60 x 90mm

    0.3kg

    06010.0-00

    100W

    4.5A

    8A

    +120°C (248°F)

    110 x 60 x 90mm

    0.3kg

    06020.0-00

    150W

    8A

    8A

    +145°C (293°F)

    150 x 60 x 90mm

    0.5kg

    1. ambient temperature - see Heating capacity / Ambient temperature diagram;
    2; measured 50mm above protective grille

    WIRING DIAGRAM
