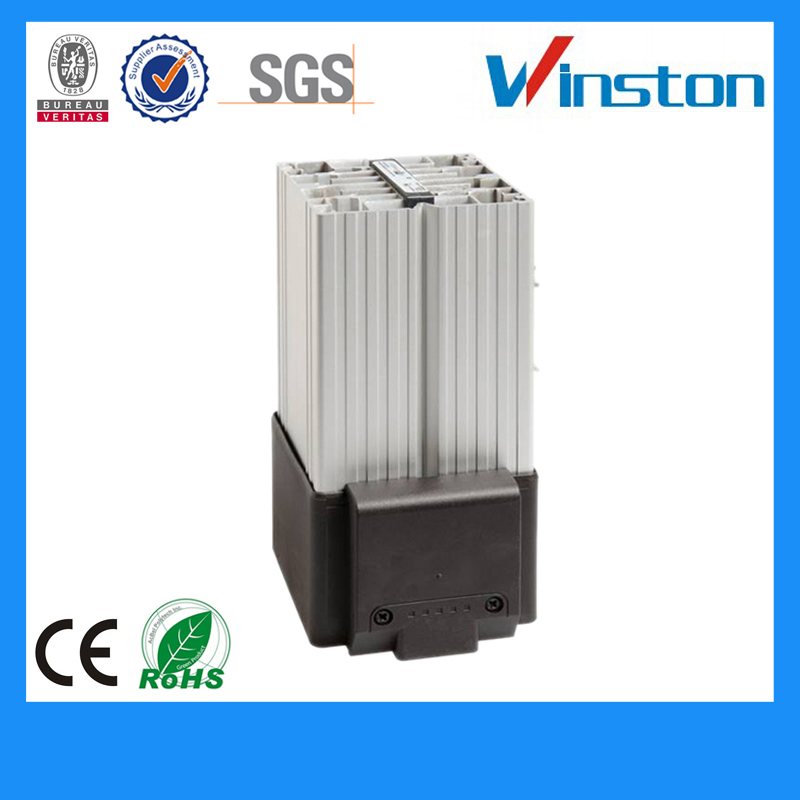

    Din Rail AC 120V Industrial Electric Heaters , Industrial Fan Heaters HGL046 Din Rail

    Ask Lasest Price
    Brand Name : Winston/OEM
    Model Number : HGL046
    Certification : CE,ROSH
    Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD
    Supply Ability : 10000PCS/Month
    Delivery Time : 3-15days after get payment.
    • Product Details
    • Company Profile

    Din Rail AC 120V Industrial Electric Heaters , Industrial Fan Heaters HGL046 Din Rail

    Din Rail AC 120V Industrial Electric Heaters , Industrial Fan Heaters HGL046 Din Rail


    ● Compact design

    ● Clip fixing

    ● Long service life

    ● Maintenance free

    ● Temperature safety cut-out


    Compact fan heater prevents formation of condensation.

    The integrated high performance axial fan provides forced air circulation and so guarantees an even temperature in enclosures.

    TECHNICAL PARAMETER

    Heating element

    Resistance heater

    Temperature safety cut-out

    To protect against overheating in case of fan failure, automatic reset

    Heater body

    Anodised extruded aluminium profile

    Surface temperature

    Max. 75°C (400W)

    Axial fan, ball bearing

    Airflow, free flow

    AC: 45m³/h (50HZ) or 54m³/h (60Hz)

    DC: 54m³/h

    Service life 50 000h at 25°C (77°F)

    Connection

    Internal connection terminal 1.5mm² with strain relief, clamping torque 0.8Nm max.

    Connection casing

    Plastic according to UL94 V-0,black

    Mounting

    Clip for 35mm DIN rail, EN 60715

    Fitting position

    Vertical airflow (air outlet up

    Operating/Storage temperature

    -45 to +70 °C (-49 to +158 °F)

    Operating / Storage humidity

    Max. 90 % RH (non-condensing)

    Protection type/Protection class

    IP20 / I (earthed)


    Note: In the case of 24VDC and 48VDC the fan heater has to be switched via a relay. For this purpose we recommend our electronic relay SM 010 (Art. No. 01000.0-00 and 01001.0-00).


    Art. No.Operating voltageHeating capacityPre-fuse T (time delay)Length (L)Weight (approx.)Approvals
    04640.0-00230VAC, 50/60Hz250W2A182mm1.1kg
    04641.0-00230VAC, 50/60Hz400W4A222mm1.4kg
    04640.9-00120VAC, 50/60Hz250W4A182mm1.1kg
    04641.9-00120VAC, 50/60Hz400W5A222mm1.4kg
    04640.1-0024VDC250W16A182mm1.1kg-
    04640.2-0048VDC250W8A182mm1.1kg-
    04641.2-0048VDC400W12.5A222mm1.4kg-

    WIRING DIAGRAM
