    OEM 1200W Energy Efficient Electric Heaters Industrial Adjustable Temperature Range

    Ask Lasest Price
    Brand Name : Winston/OEM
    Model Number : CS130
    Certification : CE,ROSH
    Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD
    Supply Ability : 10000PCS/Month
    Delivery Time : 3-15days after get payment.
    • Product Details
    • Company Profile

    OEM 1200W Energy Efficient Electric Heaters Industrial Adjustable Temperature Range

    OEM 1200W Energy Efficient Electric Heaters Industrial Adjustable Temperature Range


    ● Compact design

    ● High heating performance

    ● Double insulated

    ● Integrated thermostat(optional)

    ● Optional clip or screw fixing


    The compact high performance fan heater prevents formation of condensation and provides an evenly distributed interior air temperature in enclosures with electric/electronic components.

    The plastic enclosure provides double insulation and acts as protection against contact.

    The fan heater is available with optional integrated thermostat for temperature control.

    The CS 130 was designed as a stationary unit for wall fixing.

    For fixing on the bottom of the enclosure the fanheater CS 030 is recommended.

    TECHNICAL PARAMETER

    Heating element

    PTC resistor - temperature limiting

    Temperature safety cut-out

    to protect against overheating in case of fan failure

    Axial fan, ball bearing

    service life 50,000h at 25°C (77°F)

    Connection

    2-pole max. 2.5mm², clamping screw with strain relief, torque 0.8Nm max.

    Casing

    plastic according to UL94 V-0, black

    Mounting

    clip for 35mm DIN rail, EN 60715 or screw fixing (M6)

    Fitting position

    Hhorizontal

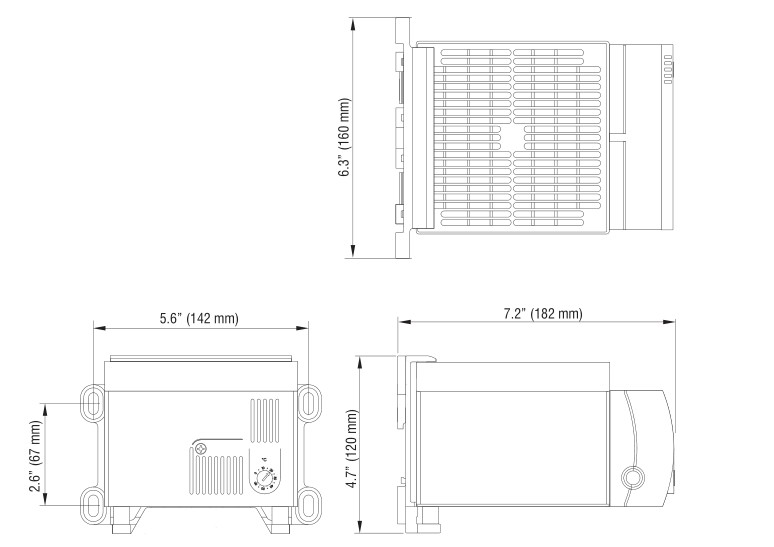

    Dimensions

    182 x 160 x 142mm

    Weight

    approx. 1.25kg

    Operating / Storage temperature

    -45 to +70°C (-49 to +158°F)

    Protection type / Protection class

    IP20 / II (double insulated)

    Art. No.

    Model

    Operating voltage

    Heating capacity⊃1;

    Inrush current max.

    Pre-fuse T (time-delay)

    Setting range

    Approvals

    13060.0-00

    Fan Heater with thermostat

    230VAC, 50/60Hz

    1,200W

    13A

    8A

    0 to +60°C


    13060.0-01

    Fan Heater without thermostat

    230VAC, 50/60Hz

    1,200W

    13A

    8A

    -


    13060.9-00

    Fan Heater with thermostat

    120VAC, 50/60Hz

    1,200W

    16A

    10A

    +32 to +140°F


    13060.9-01

    Fan Heater without thermostat

    120VAC, 50/60Hz

    1,200W

    16A

    10A

    -


    at 20°C (68°F) ambient temperature; ⊃2;according to UL 499, intended for the use within an enclosure in accordance with UL 508A

    WIRING DIAGRAM

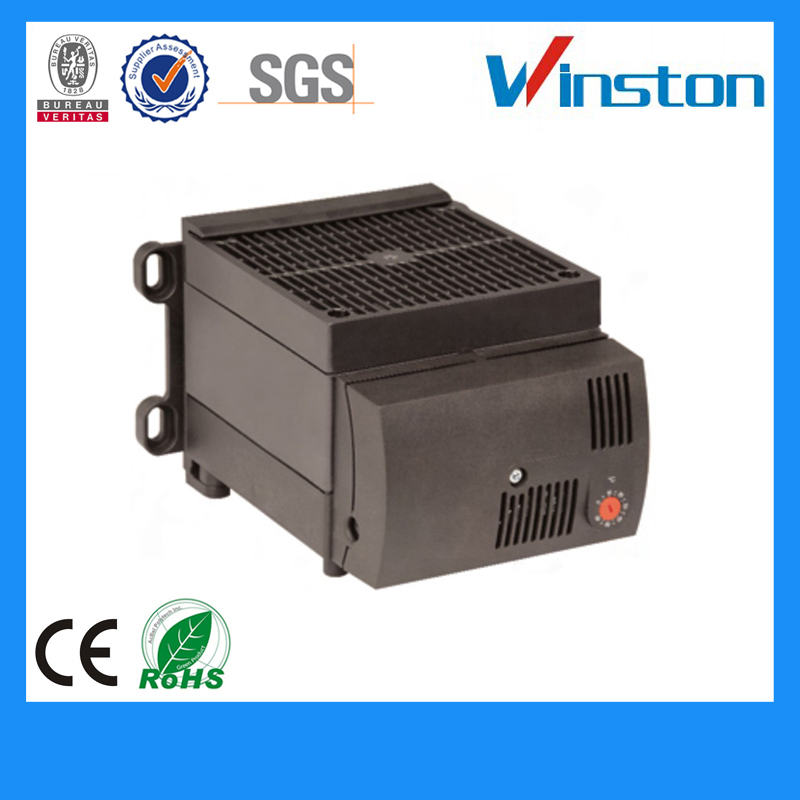

    Product picture



    Our Services
    • Customized Samples are acceptable
    • Accept different payment methods, such as T/T, L/C, Western Union, Escrow to meet your different financial requirements
    • Welcome and accept 100% customers factory inspection before the production
    • Supply skills training including product basic knowledge, installation, operation, maintenance skills training for the local people
    • We provide 7 days 24 hours service!

    PS: If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.
