Plastic 8A Industrial Electric Heaters 950W Ntegrated Thermostat / Hygrostat

    Buy cheap Plastic 8A Industrial Electric Heaters 950W Ntegrated Thermostat / Hygrostat from wholesalers

    Buy cheap Plastic 8A Industrial Electric Heaters 950W Ntegrated Thermostat / Hygrostat from wholesalers
    • Buy cheap Plastic 8A Industrial Electric Heaters 950W Ntegrated Thermostat / Hygrostat from wholesalers
    • Buy cheap Plastic 8A Industrial Electric Heaters 950W Ntegrated Thermostat / Hygrostat from wholesalers
    • Buy cheap Plastic 8A Industrial Electric Heaters 950W Ntegrated Thermostat / Hygrostat from wholesalers

    Plastic 8A Industrial Electric Heaters 950W Ntegrated Thermostat / Hygrostat

    Ask Lasest Price
    Brand Name : Winston/OEM
    Model Number : CR030
    Certification : CE,ROSH
    Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD
    Supply Ability : 10000PCS/Month
    Delivery Time : 3-15days after get payment.
    • Product Details
    • Company Profile

    Plastic 8A Industrial Electric Heaters 950W Ntegrated Thermostat / Hygrostat

    Plastic 8A Industrial Electric Heaters 950W Ntegrated Thermostat / Hygrostat


    ● Compact design

    ● Double insulated

    ● Integrated thermostat or hygrostat


    The compact high performance fan heater prevents formation of condensation and provides an evenly distributed interior air temperature in enclosures with electric/electronic components.

    The plastic enclosure provides double insulation and acts as protection against contact.

    The fan heater is available with integrated thermostat or pre-set hygrostat for temperature or humidity control

    The CR 030 was designed as a stationary unit for the bottom of the enclosure.

    For wall fixing the fan heater CR 130 is resommended.

    TECHNICAL PARAMETER

    Heating element

    High performance cartridge

    Temperature safety cut-out

    to protect against overheating in case of fan failure,automatic reset

    Heater body

    Extruded aluminium profile

    Axial fan, ball bearing

    Airflow 160m3/h, free flow,service life 50,000h at25°C(77°F)

    Connection

    2-pole max. 2.5mm², clamping screw with strain relief, torque 0.8Nm max.

    Casing

    plastic according to UL94 V-0, black

    Mounting

    Screw fixing (M5)

    Fitting position

    Hhorizontal

    Dimensions

    168 x 145 x 100mm

    Weight

    Approx. 1.4kg

    Operating / Storage temperature

    -45 to +70°C (-49 to +158°F)

    Protection type / Protection class

    IP20 / II (double insulated)

    Note

    Other heating capacities from 200W up available on request

    Operating temperature of heater with integrated hygrostat: 0 to +60°C(+32 to +140°F)


    Art. No.

    Model

    Operating voltage

    Heating capacity

    Pre-fuse T (time-delay)

    Setting range

    Approvals

    03051.0-00

    Fan Heater with thermostat

    230VAC, 50/60Hz

    950W

    8A

    0 to +60°C


    03051.0-02

    Fan Heater with hygrostat

    230VAC, 50/60Hz

    950W

    8A

    65% RH, factory-set


    03059.9-00

    Fan Heater with thermostat

    120VAC, 50/60Hz

    950W

    12.5A

    +32 to +140°F


    according to UL 499, intended for the use within an enclosure in accordance with UL 508A

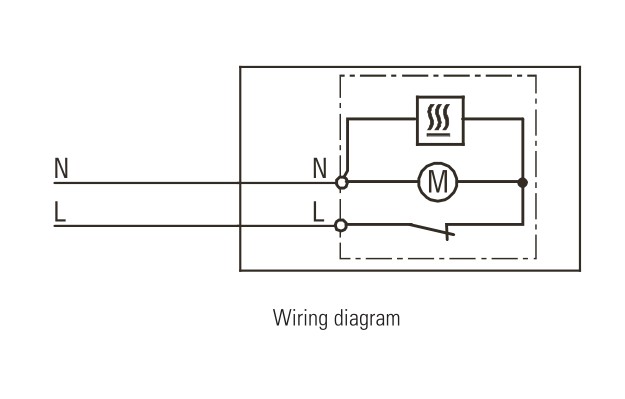

    WIRING DIAGRAM


    Product picture



    Our Services
    • Customized Samples are acceptable
    • Accept different payment methods, such as T/T, L/C, Western Union, Escrow to meet your different financial requirements
    • Welcome and accept 100% customers factory inspection before the production
    • Supply skills training including product basic knowledge, installation, operation, maintenance skills training for the local people
    • We provide 7 days 24 hours service!

    PS: If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.
