    120-240V Industrial Electric Heaters Dehumidifier Cabinet , 150 Watt Heater Energy Saving Black And White

    Ask Lasest Price
    Brand Name : Winston/OEM
    Model Number : HG 140 150W
    Certification : CE,ROSH
    Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD
    Supply Ability : 10000PCS/Month
    Delivery Time : 3-15days after get payment.
    • Product Details
    • Company Profile

    120-240V Industrial Electric Heaters Dehumidifier Cabinet , 150 Watt Heater Energy Saving Black And White

    Industrial Electric Heaters Dehumidifier Cabinet , 150 Watt Heater Energy Saving


    ● Pressure clamp conectors

    ● Dynamic heating up

    ● Wide voltage range

    ● Temperature limiting

    ● Energy saving

    ● Clip fixing

    ● Quick installation

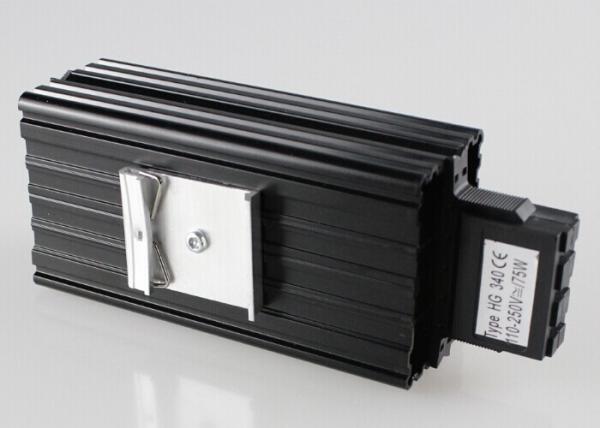

    These heaters are used in enclosures where damage from condensation must be prevented, or where the temperature may not fall below a minimum value. The aluminium profile heater body design has a chimney effect and distributes the heat evenly. The heaters are designed for permanent operation. Pressure clamb connectors save time and simplify installation.

    TECHNICAL PARAMETER

    Operating voltage

    120-240V AC/DC* (min. 110V, max. 265V)

    Heating element

    PTC resistor, temperature limiting

    Heater body

    extruded aluminium profile, anodised

    Connection

    3 pressure clamps for stranded wire 0.5-1.5mm² (with wire end ferrule) and rigid wire 0.5- 2.5mm²

    Connection casing

    plastic according to UL94 V-0, black

    Mounting

    clip for 35mm DIN rail, EN 60715

    Fitting position

    vertical airflow (air outlet up, connection on bottom)

    Operating/Storage temperature

    -45 to +70 °C (-49 to +158 °F)

    Operating / Storage humidity

    max. 90 % RH (non-condensing)

    Protection type/Protection class

    IP20 / I (earthed)

    Approvals

    VDE + UL File No. E150057

    Accessoires

    screw fixing, Art. No. 09024.0-00 (1 packing unit = 2 pieces)

    *Operating with voltages below 140V AC/DC reduces heating performance by approx. 10%.


    Art. No.Heating capacity*Inrush current max.Pre-fuse T (time-delay)Length (L)Weight (approx.)
    14000.0-0015W1.5A1A65mm0.3kg
    14001.0-0030W3.0A2.5A65mm0.3kg
    14003.0-0045W3.5A2.5A65mm0.3kg
    14005.0-0060W2.5A2.5A140mm0.4kg
    14006.0-0075W4.0A4A140mm0.5kg
    14007.0-00100W4.5A4A140mm0.5kg
    14008.0-00150W9.0A6.3A220mm0.7kg

    WIRING DIAGRAM
