    IP20 Industrial Electric Heaters With Temperature Controller , PTC Resistor Heaters

    Ask Lasest Price
    Brand Name : Winston/OEM
    Model Number : CSK060
    Certification : CE,ROSH
    Price : Negotiable
    Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD
    Supply Ability : 10000PCS/Month
    Delivery Time : 3-15days after get payment.
    • Product Details
    • Company Profile

    IP20 Industrial Electric Heaters With Temperature Controller , PTC Resistor Heaters

    IP20 Industrial Electric Heaters With Temperature Controller , PTC Resistor Heaters


    Product Description


    Touch-safe small Heater CSK 060 CSK060 Series (Semiconductor)
    Low surface temperature
    Double insulated (plastic housing)
    Wide voltage range
    Dynamic heating up
    Clip fixing


    The heaters are used in enclosures where condensation is to be prevented or the temperature may not fall below a minimum value. In this way corrosion is avoided and an even temperature is ensured. The heaters are designed for permanent operation.


    Technic data


    Operating voltage120 - 240V AC/DC* (min. 110V, max. 265V)
    Heating elementPTC resistor - temperature limiting
    Surface temperature< 85°C (185°F) (according to VDE 0100),
    except upper protective grille
    Connection2-pole terminal 2.5mm², torque 0.8Nm max.
    Casingplastic according to UL94 V-0, black
    Dimensions98 x 38 x 75mm
    Mountingclip for 35mm DIN rail, EN 60715
    Fitting position

    vertical airflow

    (air outlet up, connection on bottom)

    Operating/Storage temperature-45°C to +70°C (-49°F to +158°F)
    Operating/Storage humiditymax. 90% RH (non-condensing)
    Protection type/Protection classIP20 / II (double insulated)
    Approvals
    Noteother voltages on request
    Operating with voltages below 140V AC/DC reduces heating performance by approx 10%.
    Art. No.Heating capacity*Inrush current max.Pre-fuse T (time-delay)Weight (approx.)
    06040.0-0010W1.0A1A0.2kg
    06030.0-0020W2.5A2A0.3kg

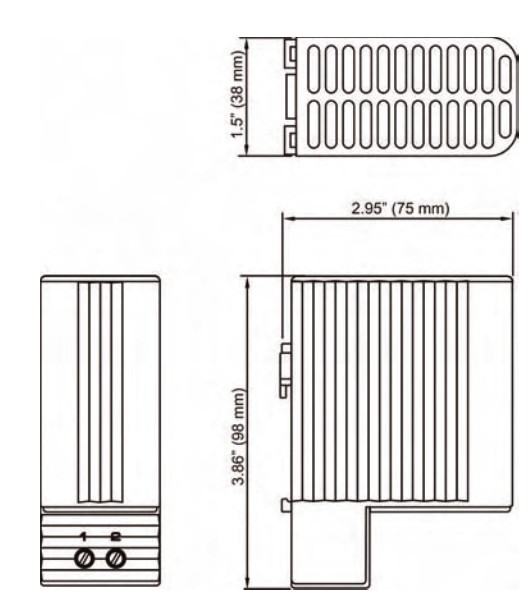

    Overall dimensions



    Product picture
