    IP67 Dustproof Inductive Type Proximity Sensor Anti Interference DC 6V - 36V

    Ask Lasest Price
    Brand Name : Winston/OEM
    Model Number : LM14
    Certification : CE,ROSH
    Price : Negotiable
    Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD
    Supply Ability : 10000PCS/Month
    Delivery Time : 3-15days after get payment.
    • Product Details
    • Company Profile

    IP67 Dustproof Inductive Type Proximity Sensor Anti Interference DC 6V - 36V

    IP67 Dustproof Inductive Type Proximity Sensor Anti Interference DC 6V - 36V

    Technique parameter
    DETECTION DISTANCE 3mm
    FlushDC 10-30VNPNNOLM14-3003NA
    NCLM14-3003NB
    NO+NCLM14-3003NC
    PNPNOLM14-3003PA
    NCLM14-3003PB
    NO+NCLM14-3003PC
    two wire systemNOLM14-3003LA
    NCLM14-3003LB
    AC 90-250VSCR Control-lable siliconNOLM14-2003A
    NCLM14-2003B
    NO+NC
    Relay output
    DETECTION DISTANCE 5mm
    Non-FlushDC 10-30VNPNNOLM14-3005NA
    NCLM14-3005NB
    NO+NCLM14-3005NC
    PNPNOLM14-3005PA
    NCLM14-3005PB
    NO+NCLM14-3005PC
    two wire systemNOLM14-3005LA
    NCLM14-3005LB
    AC 90-250VSCR Control-lable siliconNOLM14-2005A
    NCLM14-2005B
    NO+NC
    Relay output
    ControloutputDC200mA
    SCR/ Relay300mA
    Output voltagc dropDC/ACNPN/PNP< 3V, Two wire< 3.9V, AC< 10V
    Consumption currentDC< 15mA, AC< 10mA
    Standard detected object15*15*1(A3 iron)
    Repeated precision0.02
    DC/AC300Hz/25Hz
    Working environment temperature-25~+70º C
    Insulation resistance50MΩ
    Shell materialMetal
    Protection gradeIP67
    Altemative model at home and abroadLJ14A3

    Product Description:

    Compact volume
    High precision of repeated location
    Diversified exterior structures
    Good performance of anti-interference.
    Many output forms
    High on-off frequency.
    Wide voltage range
    Dust proof, vibration proof, water proof and oil proof.
    With short-circuit protection and inverted connecting protection.
    Long service life

    Model explanation of proximity switch


    LM 18 30 05 N A □ / L

    —— —— - —— —— —— —— —— ——

    1 2 3 4 5 6 7 8


    Switch categoryOutput form

    Lm: Inductance type

    Cm: Capacitance type

    Sm: Hall type

    Am: Safety Explosion-proof type

    Xm: Mimic Linear type

    Hm: Reed type

    Ru: Ultrasonic type

    N: Three-wire Dc NpN Output

    P: Three-wire Dc PnP Output

    L: Two-wire Dc Output

    : Ac Two-wire Output

    J: Relay Contact Output

    Np: NpN+PnP Double Output

    Outward appearance codeOutput state

    □: Cylinder type

    F□: Angular Colum Type And Plane Installation Type



    A: (no) normally Open (no)

    B: (nc) Normally Close (nc)

    C: (no-nc) normally Open-Normally Close (no+nc)

    Mu: Mimic Voltage

    Mi: Mimic Current

    Mui: Voltage+Current


    Working voltageSubsidiart functions

    30: 6-36VDC 310:5-24VDC 320:12-60VDC

    330: 10-30VDC 340:10-55VDC 350:10-60VDC

    360: 5-36VDC 20:90-250VAC 210:24-250VAC

    220: 380VAC40:12-240VDC/24-240AC

    50: Special voltage


    T: with aviation connector

    Y: water proof,oil proof

    I: special requirement

    H: high temp resistance

    R: ring type

    Detection distanceLong-distance

    01:1mm 05:5mm 10:10mm ......

    L: Long-distance

    Working priciple inductive proximity switch


    Inductive proximity switch is composed of three parts:oscillator,switch circuit and magnified output circuit.The oscillator will generate an alternating electric field.When hemetal object approaches this electric field and reaches the induction distance, whirlpool will generate in metal object, resulting in attenuation of vibrati on and then stop.The changeof vibration and stop of oscillator is treated by begid stage magnified circuit and convertedto switching sign,triggering driving con-contact detection.

    Current consumption of inductive proximity switch decreases proportional to the metal object distance.


    Application illustration of proximity switch


    1. Various location detection of machinery process center

    2. Bottle lid detection

    3. Stopper detection of grinding machine

    4. Arm location detection of robot

    5. Inspection of the exiating of milk inside the paper package

    6. Spacing detection

    7. Mounting non screw type pillar switch

    8. Gusrd of switch lead-wire


    Product Dimension

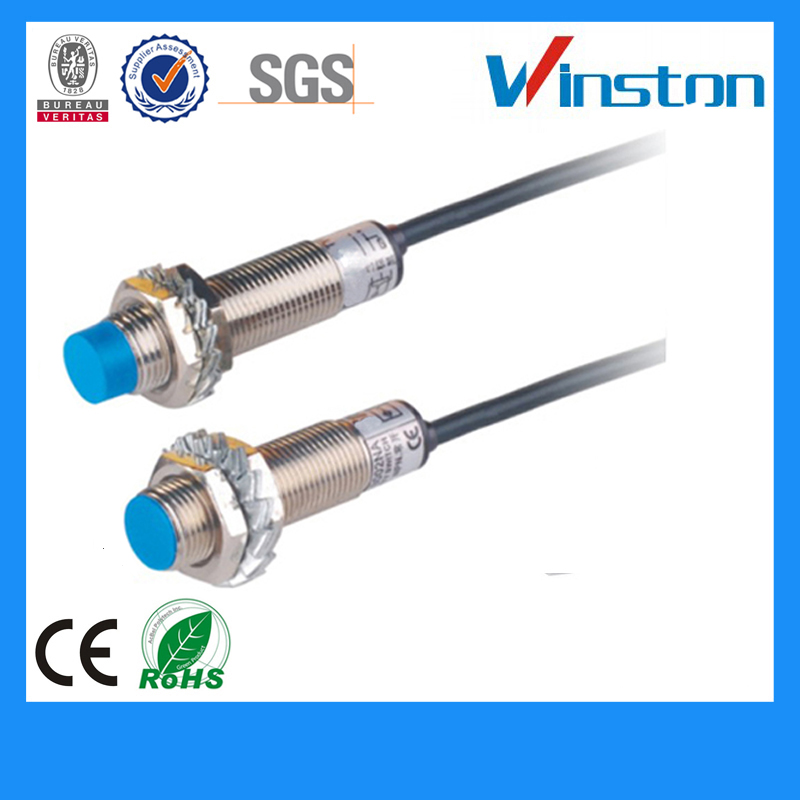

    Product Picture



    FAQ

    Q 1. what's the payment term?

    A. We accept TT,30% deposit and 70% balance agaisnt copy of BL

    Q 2. how's the delivery time ?

    A. usually it will take about 15 days for production

    Q 3. tell me the standard of package?

    A. Export standard carton box


    Q 4. Could you offer Form A or C/O ?

    A. It totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for this certificate.

    Q 5. Would you accept to use our logo ?

    A. If you have good quantity,it absolute no problem to do OEM.

    Q 6. We want to know month capacity.

    A. It depends on which model.For example for M12 type normal type, month capacity can reach near 20000pcs.

    Q 7. Where is your market?

    A. Our products are popular in Russia, Indonisia, Philippines,Italy, America, Brazil and so on.Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.
