    Winston NO / NC Inductive Proximity Sensor Switch High Precision Vibtation proof LM6

    Ask Lasest Price
    Brand Name : Winston/OEM
    Model Number : LM6
    Certification : CE,ROSH
    Price : Negotiable
    Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD
    Supply Ability : 10000PCS/Month
    Delivery Time : 3-15days after get payment.
    • Product Details
    • Company Profile

    Winston NO / NC Inductive Proximity Sensor Switch High Precision Vibtation proof LM6

    Winston NO / NC Inductive Proximity Sensor Switch High Precision Vibtation proof LM6
    Technique parameter

    Flush

    Detection distance

    1mm


    DC
    6~
    36
    VDC

    NPN

    NO

    LM6-3001NA

    NC

    LM6-3001NB

    PNP

    NO

    LM6-3001PA

    NC

    LM6-3001PB

    Two wire system

    NO

    LM6-3001LA

    NC

    LM6-3001LB


    AC
    90~
    250
    VAC

    Controllable silicon

    NO

    LM6-2001A

    NC

    LM6-2001B

    Non-flush

    Detection distance

    1.5mm


    DC
    6~
    36
    VDC

    NPN

    NO

    LM6-3002NA

    NC

    LM6-3002NB

    PNP

    NO

    LM6-3002PA

    NC

    LM6-3002PB

    Two wire system

    NO

    LM6-3002LA

    NC

    LM6-3002LB


    AC
    90~
    250
    VAC

    Controllable silicon

    NO

    LM6-2002A

    NC

    LM6-2002B

    Features:

    1 . high precision of repeated location
    2 . Diversified exterior structures
    3 . Good performance of anti-interference
    4 . Many output forms
    5 . Dust proof,vibration proof,water proof and oil proof.
    6 . With short-circuit protection and inverted connecting protection.
    7 . Long service life

    Model explanation of proximity switch


    LM 18 30 05 N A □ / L

    —— —— - —— —— —— —— —— ——

    1 2 3 4 5 6 7 8


    Switch categoryOutput form

    Lm: Inductance type

    Cm: Capacitance type

    Sm: Hall type

    Am: Safety Explosion-proof type

    Xm: Mimic Linear type

    Hm: Reed type

    Ru: Ultrasonic type

    N: Three-wire Dc NpN Output

    P: Three-wire Dc PnP Output

    L: Two-wire Dc Output

    : Ac Two-wire Output

    J: Relay Contact Output

    Np: NpN+PnP Double Output

    Outward appearance codeOutput state

    □: Cylinder type

    F□: Angular Colum Type And Plane Installation Type



    A: (no) normally Open (no)

    B: (nc) Normally Close (nc)

    C: (no-nc) normally Open-Normally Close (no+nc)

    Mu: Mimic Voltage

    Mi: Mimic Current

    Mui: Voltage+Current


    Working voltageSubsidiart functions

    30: 6-36VDC 310:5-24VDC 320:12-60VDC

    330: 10-30VDC 340:10-55VDC 350:10-60VDC

    360: 5-36VDC 20:90-250VAC 210:24-250VAC

    220: 380VAC40:12-240VDC/24-240AC

    50: Special voltage


    T: with aviation connector

    Y: water proof,oil proof

    I: special requirement

    H: high temp resistance

    R: ring type

    Detection distanceLong-distance

    01:1mm 05:5mm 10:10mm ......

    L: Long-distance

    Working priciple inductive proximity switch


    Inductive proximity switch is composed of three parts:oscillator,switch circuit and magnified output circuit.The oscillator will generate an alternating electric field.When hemetal object approaches this electric field and reaches the induction distance, whirlpool will generate in metal object, resulting in attenuation of vibrati on and then stop.The changeof vibration and stop of oscillator is treated by begid stage magnified circuit and convertedto switching sign,triggering driving con-contact detection.

    Current consumption of inductive proximity switch decreases proportional to the metal object distance.


    Application illustration of proximity switch


    1. Various location detection of machinery process center

    2. Bottle lid detection

    3. Stopper detection of grinding machine

    4. Arm location detection of robot

    5. Inspection of the exiating of milk inside the paper package

    6. Spacing detection

    7. Protection against the interference of non detected object

    8. Gusrd of switch lead-wire


    Dimension

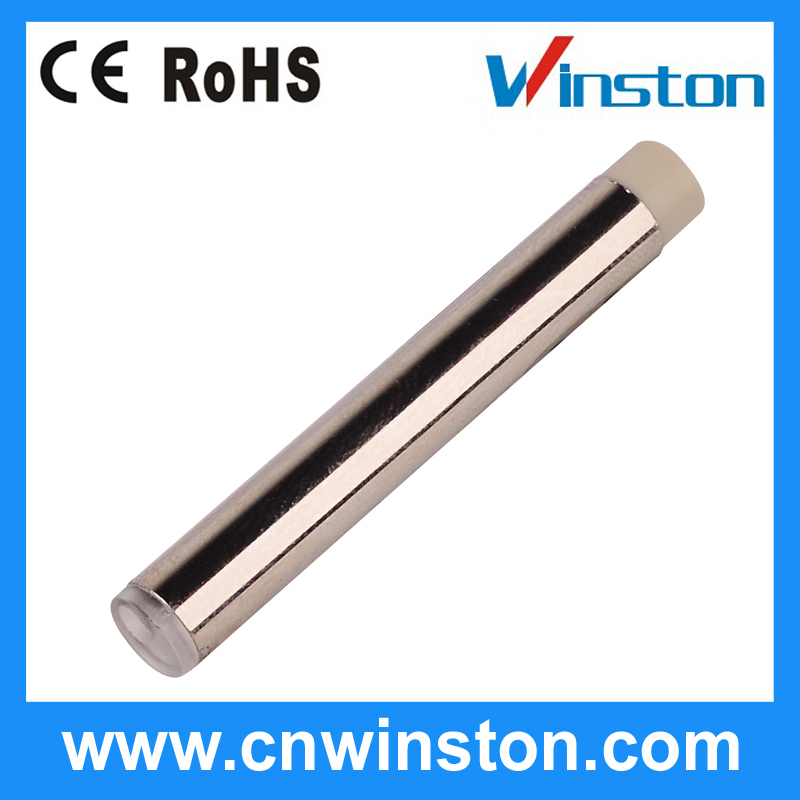

    Product Picture



    FAQ

    Q 1. what's the payment term?

    A. We accept TT,30% deposit and 70% balance agaisnt copy of BL

    Q 2. how's the delivery time ?

    A. usually it will take about 15 days for production

    Q 3. tell me the standard of package?

    A. Export standard carton box


    Q 4. Could you offer Form A or C/O ?

    A. It totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for this certificate.

    Q 5. Would you accept to use our logo ?

    A. If you have good quantity,it absolute no problem to do OEM.

    Q 6. We want to know month capacity.

    A. It depends on which model.For example for M12 type normal type, month capacity can reach near 20000pcs.

    Q 7.Where is your market?

    A. Our products are popular in Russia, Indonisia, Philippines,Italy, America, Brazil and so on.Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.
