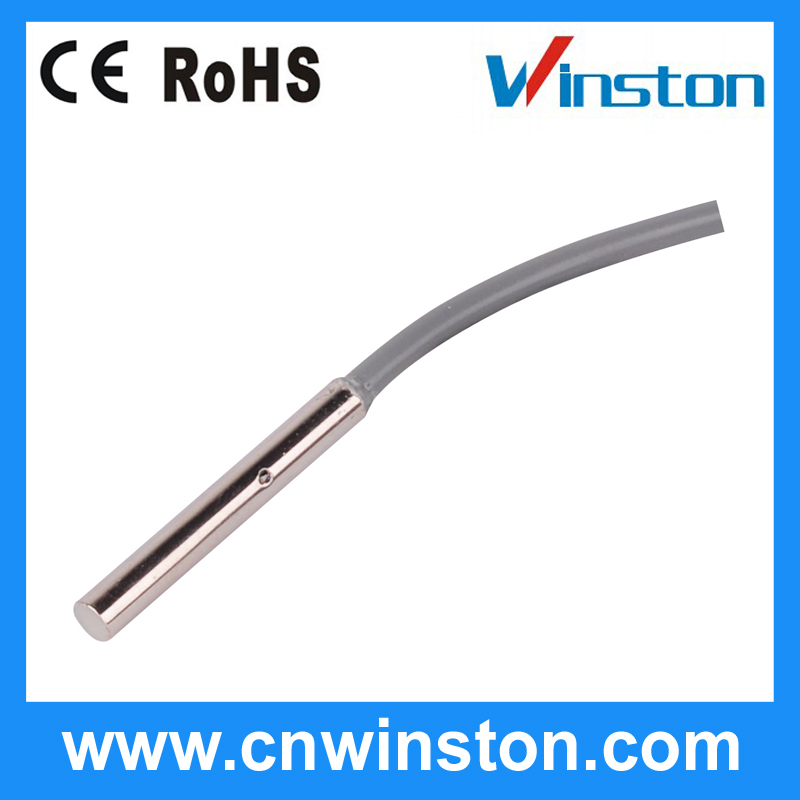

    LM4 / LM5 Adjustable PNP Proximity Switch Inductive Infrared Detection With LED

    Ask Lasest Price
    Brand Name : Winston/OEM
    Model Number : LM4 , LM5
    Certification : CE,ROSH
    Price : Negotiable
    Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD
    Supply Ability : 10000PCS/Month
    Delivery Time : 3-15days after get payment.
    • Product Details
    • Company Profile

    LM4 / LM5 Adjustable PNP Proximity Switch Inductive Infrared Detection With LED

    LM4 / LM5 Adjustable PNP Proximity Switch Inductive Infrared Detection With LED
    Technique parameter

    DC ULTRA-MINI INDUCTIVE PROXIMITY SENSOR

    Diameter

    LM4,LM5

    Shielded Non-shielded

    Shielded

    Switching Distance Sn:(mm)

    0.8mm / 1.0mm / 1.2mm /1.5mm

    Housing Material

    Stainless steel

    With LED Without LED

    With LED

    Operating Voltage

    10-30V

    Ripple

    <10%

    No Load Current

    <10mA

    Max.Load Current

    150mA

    Leakage Current

    <0.01mA

    Voltage Drop

    <1.5V

    Switching Frequency

    2KHz

    Response Time

    0.1ms/0.1ms

    Switching Hysteresis

    <15%(Sr)

    Repeat Accuracy

    <1.0%(Sr)

    Protection Category

    IP67

    Operating Temperature

    -25°C - +70°C

    Temperature Drift

    <10%(Sr)

    Short Circuit Protection

    YES

    Overload Trip Point

    180mA

    EMC

    RFI>3V/M / EFT>1KV / ESD>4KV(contact)

    Shock/Vibration

    IEC 60947-5-2,Part 7.4.1 / IEC 60947-5-2,Part 7.4.2

    Material Active Face

    PA66

    DC 3wire 10-30V NPN N.O.

    IA1T - S05 * N - OPA3

    25

    DC 3wire 10-30V NPN N.O.

    IA1T - S05 * N - CPA3

    25

    DC 3wire 10-30V PNP N.O.

    IA1T - S05 * P - OPA3

    26

    DC 3wire 10-30V PNP N.C.

    IA1T - S05 * P - CPA3

    26

    Cable2M (PVC )


    Weight (g)

    Approx.14g



    Features:
    1 . Compact volume
    2 . high precision of repeated location
    3 . Good performance of anti-interference
    4 . Many output forms
    5 . High on-off frequency
    6 . With short-circuit protection and inverted connecting protection.
    7 . Long service life
    Technique parameter:

    1. Switch category(LM: Inductance type; CM: Capactitance type; SM: Hall type; AM: Safety explosion-proof type; XM: Mimic linear type)

    2. Outward appearance code(C: Cylinder type; F: Angular column type and planeinstallation type)

    3. Operating voltage(30: 6-36VDC; 310: 5-24VDC; 320: 12-60VDC; 20: 90-250VAC; 210: 24-250VAC; 220: 380VAC; 40: 12-240VDC/24-240AC; 50: Special voltage)

    4. Detection distance( 01: 1mm; 05: 5mm; 10: 10mm)

    5. Output method (N: Three-line DC NPN output; P: Three-line DC PNP output; L: Two-line DC output; AC two-wire output; J: Relay output; NP: NPN+PNP output)

    6. Output status(A: NO; B: NC; C: NO+NC; MU: Mimic voltage; MI: Mimic current)

    7. Auxi function code(T: With connector; Y: Water proof, oil proof; I: Special requirement; H: High temp resistance; R: Ring type)
    Model explanation of proximity switch

    LM 18 30 05 N A □ / L

    —— —— - —— —— —— —— —— ——

    1 2 3 4 5 6 7 8


    Switch categoryOutput form

    Lm: Inductance type

    Cm: Capacitance type

    Sm: Hall type

    Am: Safety Explosion-proof type

    Xm: Mimic Linear type

    Hm: Reed type

    Ru: Ultrasonic type

    N: Three-wire Dc NpN Output

    P: Three-wire Dc PnP Output

    L: Two-wire Dc Output

    : Ac Two-wire Output

    J: Relay Contact Output

    Np: NpN+PnP Double Output

    Outward appearance codeOutput state

    □: Cylinder type

    F□: Angular Colum Type And Plane Installation Type



    A: (no) normally Open (no)

    B: (nc) Normally Close (nc)

    C: (no-nc) normally Open-Normally Close (no+nc)

    Mu: Mimic Voltage

    Mi: Mimic Current

    Mui: Voltage+Current


    Working voltageSubsidiart functions

    30: 6-36VDC 310:5-24VDC 320:12-60VDC

    330: 10-30VDC 340:10-55VDC 350:10-60VDC

    360: 5-36VDC 20:90-250VAC 210:24-250VAC

    220: 380VAC40:12-240VDC/24-240AC

    50: Special voltage


    T: with aviation connector

    Y: water proof,oil proof

    I: special requirement

    H: high temp resistance

    R: ring type

    Detection distanceLong-distance

    01:1mm 05:5mm 10:10mm ......

    L: Long-distance

    Working priciple inductive proximity switch


    Inductive proximity switch is composed of three parts:oscillator,switch circuit and magnified output circuit.The oscillator will generate an alternating electric field.When hemetal object approaches this electric field and reaches the induction distance, whirlpool will generate in metal object, resulting in attenuation of vibrati on and then stop.The changeof vibration and stop of oscillator is treated by begid stage magnified circuit and convertedto switching sign,triggering driving con-contact detection.

    Current consumption of inductive proximity switch decreases proportional to the metal object distance.


    Application illustration of proximity switch


    1. Various location detection of machinery process center

    2. Bottle lid detection

    3. Stopper detection of grinding machine

    4. Arm location detection of robot

    5. Inspection of the exiating of milk inside the paper package

    6. Spacing detection

    7. Mounting screw switch

    8. Adjustable switch actiondistance(sensitivity)


    Product Picture


    FAQ

    Q 1. what's the payment term?

    A. We accept TT,30% deposit and 70% balance agaisnt copy of BL

    Q 2. how's the delivery time ?

    A. usually it will take about 15 days for production

    Q 3. tell me the standard of package?

    A. Export standard carton box


    Q 4. Could you offer Form A or C/O ?

    A. It totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for this certificate.

    Q 5. Would you accept to use our logo ?

    A. If you have good quantity,it absolute no problem to do OEM.

    Q 6. We want to know month capacity.

    A. It depends on which model.For example for M12 type normal type, month capacity can reach near 20000pcs.

    Q 7. Where is your market?

    A. Our products are popular in Russia, Indonisia, Philippines,Italy, America, Brazil and so on.Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.
