    Cylinder Adjustable Inductance Proximity Sensor Dustproof IP67 A3 Iron LM8-T

    Ask Lasest Price
    Brand Name : Winston/OEM
    Model Number : LM8-T
    Certification : CE,ROSH
    Price : Negotiable
    Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD
    Supply Ability : 10000PCS/Month
    Delivery Time : 3-15days after get payment.
    • Product Details
    • Company Profile

    Cylinder Adjustable Inductance Proximity Sensor Dustproof IP67 A3 Iron LM8-T

    Cylinder Adjustable Inductance Proximity Sensor Dustproof IP67 A3 Iron LM8-T

    Specifications:


    Model NO.

    Detection distance

    Detection distance

    Output

    Flush

    Form

    State

    LM8-3001NAT

    1mm

    DC6-36V

    NPN

    NO

    Flush

    LM8-3001NBT

    1mm

    DC6-36V

    NPN

    NC

    Flush

    LM8-3001PAT

    1mm

    DC6-36V

    PNP

    NO

    Flush

    LM8-3001PBT

    1mm

    DC6-36V

    PNP

    NC

    Flush

    LM8-3001LAT

    1mm

    DC6-36V

    Two wire system

    NO

    Flush

    LM8-3002NAT

    2mm

    DC6-36V

    NPN

    NO

    Non-flush

    LM8-3002NBT

    2mm

    DC6-36V

    NPN

    NC

    Non-flush

    LM8-3002PAT

    2mm

    DC6-36V

    PNP

    NO

    Non-flush

    LM8-3002PBT

    2mm

    DC6-36V

    PNP

    NC

    Non-flush

    LM8-3002LAT

    2mm

    DC6-36V

    Two wire system

    NO

    Non-flush

    LM8-2002AT

    2mm

    AC90-250V

    SCR Control
    label silicon

    NO

    Non-flush


    Description:


    Compact volume, High on-off frequency

    High precision of repeated location

    Diversified exterior structures

    Good performance of anti-interference

    Many output forms, Wide voltage range

    Dust proof, vibration proof, water proof and oil proof

    With short-circuit protection and inverted

    connecting protection

    Long service life



    Model explanation of proximity switch


    LM 18 30 05 N A □ / L

    —— —— - —— —— —— —— —— ——

    1 2 3 4 5 6 7 8


    Switch categoryOutput form

    Lm: Inductance type

    Cm: Capacitance type

    Sm: Hall type

    Am: Safety Explosion-proof type

    Xm: Mimic Linear type

    Hm: Reed type

    Ru: Ultrasonic type

    N: Three-wire Dc NpN Output

    P: Three-wire Dc PnP Output

    L: Two-wire Dc Output

    : Ac Two-wire Output

    J: Relay Contact Output

    Np: NpN+PnP Double Output

    Outward appearance codeOutput state

    □: Cylinder type

    F□: Angular Colum Type And Plane Installation Type



    A: (no) normally Open (no)

    B: (nc) Normally Close (nc)

    C: (no-nc) normally Open-Normally Close (no+nc)

    Mu: Mimic Voltage

    Mi: Mimic Current

    Mui: Voltage+Current


    Working voltageSubsidiart functions

    30: 6-36VDC 310:5-24VDC 320:12-60VDC

    330: 10-30VDC 340:10-55VDC 350:10-60VDC

    360: 5-36VDC 20:90-250VAC 210:24-250VAC

    220: 380VAC40:12-240VDC/24-240AC

    50: Special voltage


    T: with aviation connector

    Y: water proof,oil proof

    I: special requirement

    H: high temp resistance

    R: ring type

    Detection distanceLong-distance

    01: 1mm 05: 5mm 10: 10mm ......

    L: Long-distance

    Working priciple inductive proximity switch


    Inductive proximity switch is composed of three parts:oscillator,switch circuit and magnified output circuit.The oscillator will generate an alternating electric field.When hemetal object approaches this electric field and reaches the induction distance, whirlpool will generate in metal object, resulting in attenuation of vibrati on and then stop.The changeof vibration and stop of oscillator is treated by begid stage magnified circuit and convertedto switching sign,triggering driving con-contact detection.

    Current consumption of inductive proximity switch decreases proportional to the metal object distance.


    Application illustration of proximity switch


    1. Various location detection of machinery process center

    2. Bottle lid detection

    3. Stopper detection of grinding machine

    4. Arm location detection of robot

    5. Inspection of the exiating of milk inside the paper package

    6. Spacing detection

    7. High on-off frequency

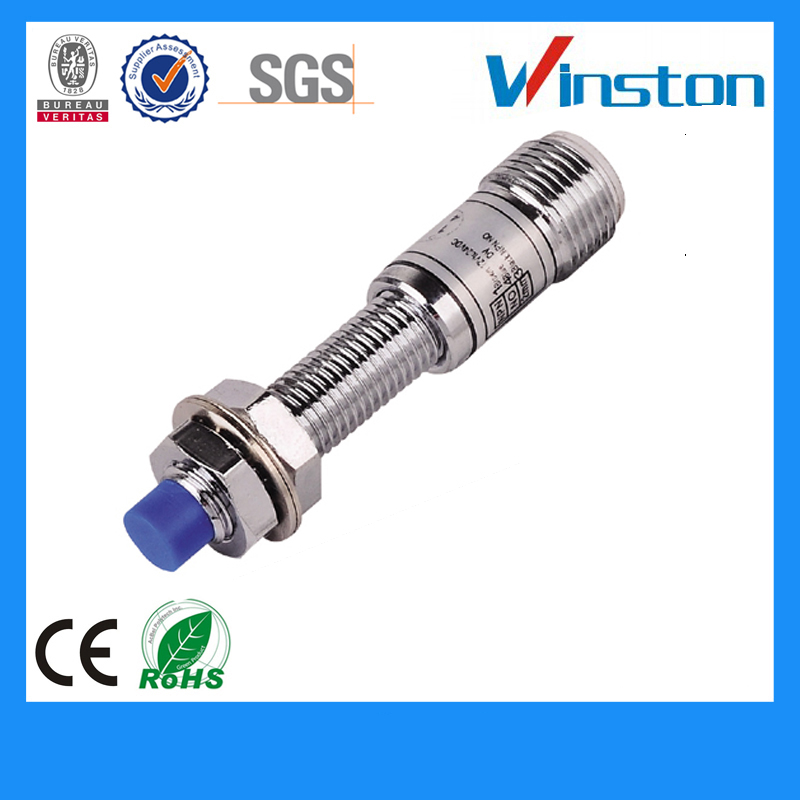

    Product Picture


    Cylinder Adjustable Inductance Proximity Sensor Dustproof IP67 A3 Iron LM8-T


    Cylinder Adjustable Inductance Proximity Sensor Dustproof IP67 A3 Iron LM8-T


    PS: If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.
