    Winston LMF30 Non-Flush Inductive Displacement Sensor 4MM Straight Connector

    Ask Lasest Price
    Brand Name : Winston/OEM
    Model Number : LMF30
    Certification : CE,ROSH
    Price : Negotiable
    Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD
    Supply Ability : 10000PCS/Month
    Delivery Time : 3-15days after get payment.
    • Product Details
    • Company Profile

    Winston LMF30 Non-Flush Inductive Displacement Sensor 4MM Straight Connector

    Winston LMF30 Non-Flush Inductive Displacement Sensor 4MM Straight Connector
    Technique parameter
    Model NO.Detection distanceDetection distanceOutputFlush
    FormState
    LMF30-3004NA4mmDC6-36VNPNNONon-flush
    LMF30-3004NB4mmDC6-36VNPNNCNon-flush
    LMF30-3004NC4mmDC6-36VNPNNO+NCNon-flush
    LMF30-3004PA4mmDC6-36VPNPNONon-flush
    LMF30-3004PB4mmDC6-36VPNPNCNon-flush
    LMF30-3004PC4mmDC6-36VPNPNO+NCNon-flush
    LMF30-3004LA4mmDC6-36VTwo wire systemNONon-flush
    LMF30-3004A4mmAC90-250VSCR Control Lable siliconNONon-flush
    LMF30-3004B4mmAC90-250VSCR Control Lable siliconNCNon-flush

    Output voltage dropDC/ACDC < 3V , DC (Two wire system) < 3.9 , AC < 10V
    Consumption currentDC<15mA AC<10mA
    Standard detected object15×15×1(A3 iron)
    Repeated precision0.01
    DC/AC Response frequency300Hz
    Working environment temperature-25°C~70°C
    Insulation resistance50MΩ
    Shell materialABS Resin
    Protection gradeIEC standard IP67
    Altemative model at home and abroad


    Features:

    1 . Diversified exterior structures

    2 . Good performance of anti-interference.
    3 . Many output forms
    4 . High on-off frequency.
    5 . Wide voltage range
    6 . Dust proof, vibration proof, water proof and oil proof.

    7 . Compact volume

    8 . High precision of repeated location

    Model explanation of proximity switch


    LM 18 30 05 N A □ / L

    —— —— - —— —— —— —— —— ——

    1 2 3 4 5 6 7 8


    Switch categoryOutput form

    Lm: Inductance type

    Cm: Capacitance type

    Sm: Hall type

    Am: Safety Explosion-proof type

    Xm: Mimic Linear type

    Hm: Reed type

    Ru: Ultrasonic type

    N: Three-wire Dc NpN Output

    P: Three-wire Dc PnP Output

    L: Two-wire Dc Output

    : Ac Two-wire Output

    J: Relay Contact Output

    Np: NpN+PnP Double Output

    Outward appearance codeOutput state

    □: Cylinder type

    F□: Angular Colum Type And Plane Installation Type



    A: (no) normally Open (no)

    B: (nc) Normally Close (nc)

    C: (no-nc) normally Open-Normally Close (no+nc)

    Mu: Mimic Voltage

    Mi: Mimic Current

    Mui: Voltage+Current


    Working voltageSubsidiart functions

    30: 6-36VDC 310:5-24VDC 320:12-60VDC

    330: 10-30VDC 340:10-55VDC 350:10-60VDC

    360: 5-36VDC 20:90-250VAC 210:24-250VAC

    220: 380VAC40:12-240VDC/24-240AC

    50: Special voltage


    T: with aviation connector

    Y: water proof,oil proof

    I: special requirement

    H: high temp resistance

    R: ring type

    Detection distanceLong-distance

    01: 1mm 05: 5mm 10: 10mm ......

    L: Long-distance

    Working priciple inductive proximity switch


    Inductive proximity switch is composed of three parts:oscillator,switch circuit and magnified output circuit.The oscillator will generate an alternating electric field.When hemetal object approaches this electric field and reaches the induction distance, whirlpool will generate in metal object, resulting in attenuation of vibrati on and then stop.The changeof vibration and stop of oscillator is treated by begid stage magnified circuit and convertedto switching sign,triggering driving con-contact detection.

    Current consumption of inductive proximity switch decreases proportional to the metal object distance.


    Application illustration of proximity switch


    1 . Spacing detection

    2 . Stopper detection of grinding machine

    3 . Arm location detection of robot

    4 . Gusrd of switch lead-wire

    5 . Various location detection of machinery process center

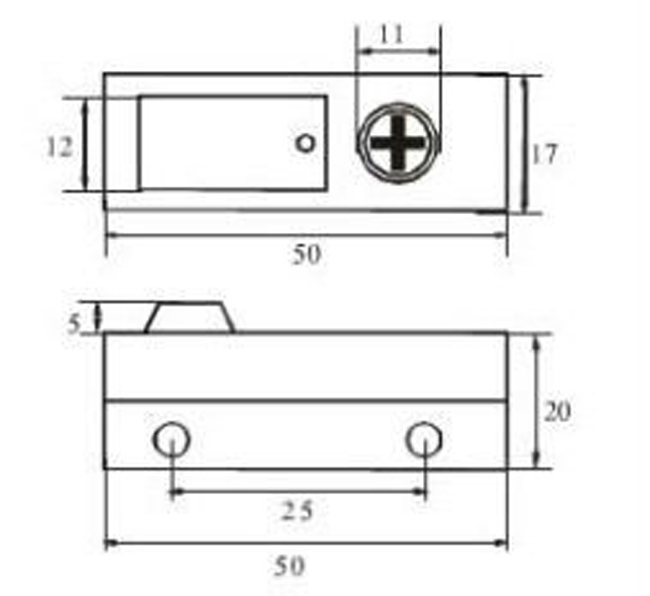

    Dimension

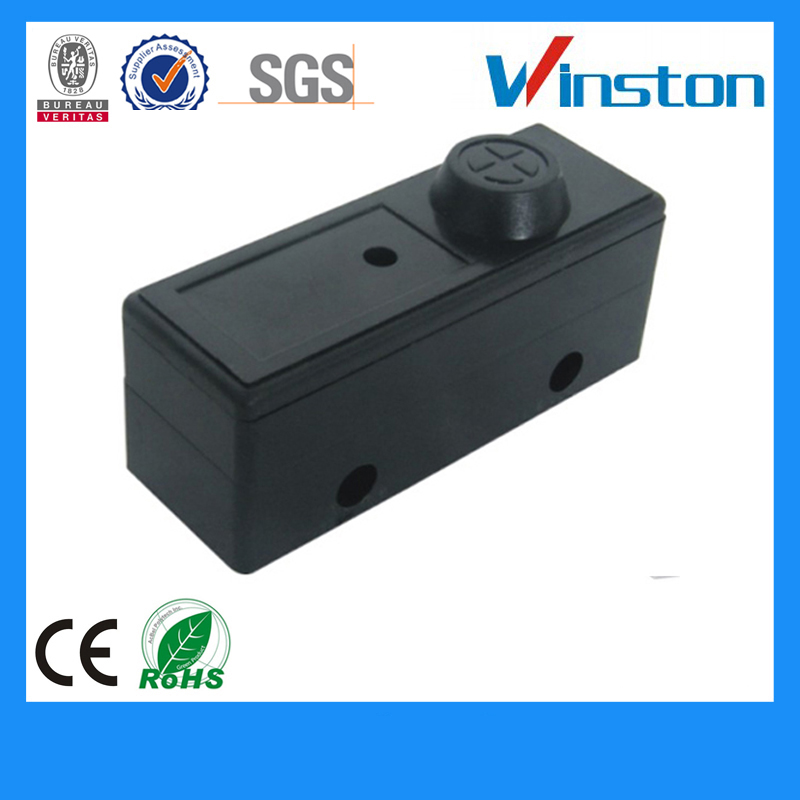

    Product Picture
