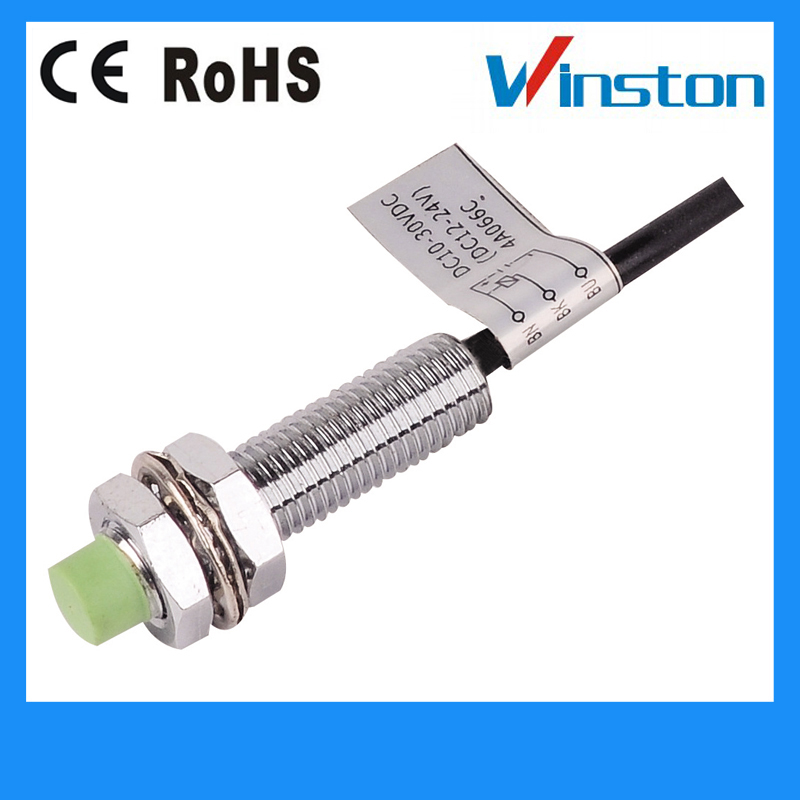

    Micro Switches Inductive Type Proximity Sensor PR08 Built-In Surge Protection Circuit

    Ask Lasest Price
    Brand Name : Winston/OEM
    Model Number : PR08
    Certification : CE,ROSH
    Price : Negotiable
    Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD
    Supply Ability : 10000PCS/Month
    Delivery Time : 3-15days after get payment.
    • Product Details
    • Company Profile

    Micro Switches Inductive Type Proximity Sensor PR08 Built-In Surge Protection Circuit

    Micro Switches Inductive Type Proximity Sensor PR08 Built-In Surge Protection Circuit
    Technique parameter

    ModelPR08-1.5DO
    PR08-1.5DC
    PR08-2DO
    PR08-2DC
    PR12-2 D O PR12-2 D CPR12-4 D O PR12-4 D CPR18-5 D O
    PR18-5 D C
    PR18-8 D O PR18-8 D CPR30-10 D O
    PR30-10 D C
    PR30-10 D O-V
    PR30-15 D O PR30-15 D C

    Sensing

    distance

    1.5mm2mm2mm4mm5mm8mm10mm15mm
    HysteresisMax. 10% of sensing distance

    Standard

    sensing target

    8×8×1mm
    (Iron)
    12×12×1mm
    (Iron)

    18×18×

    1mm
    (Iron)

    25×25×

    1mm
    (Iron)

    30×30×

    1mm
    (Iron)

    45×45×

    1mm
    (Iron)

    Sensing

    distance

    0 to 1.05mm0 to 1.4mm0 to 1.4mm0 to 2.8mm0 to 3.5mm0 to 5.6mm0 to 7mm0 to 10.5mm

    Power supply
    (Operating

    voltage)

    12- 24VDC (10 -30VDC)

    Current

    consumption

    Max. 0.6mA

    Response

    frequency 1

    1.5kHz1kHz1.5kHz500Hz350Hz400Hz200Hz
    Residual voltage 2Max. 3.5V(Non-polarity type is Max. 5V)
    Affection by Temp.Max. ±10% for sensing distance at ambient temperature 20(For PRT08 Series : ±20% Max.)
    Control output2 to 100mA
    Insulation resistanceMin. 50M(at 500VDC megger)
    Dielectric strength1500VAC 50/60Hz for 1minute
    Vibration1mm amplitude at frequency of 10 to 55Hz(for 1 min.) in each of X, Y, Z directions for 2 hours
    Shock500m/s²(approx. 50G) in X, Y, Z direction for 3 times
    IndicatorOperation indicator(red LED)
    EnvironmentAmbient temperature-25 to 70, storage: -30 to 80
    Ambient humidity35 to 95% RH, storage: 35 to 95% RH
    Protection circuitSurge protection circuitSurge protection circuit, Overcurrent protection circuit
    ProtectionIP67(IEC standard)
    Cableø3.5, 3-wire, 2m
    (AWG24, Core diameter: 0.08mm,
    Number of cores: 40,
    Insulator diameter: ø1)
    ø4, 2-wire, 2mø5, 2-wire, 2m
    (AWG22, Core diameter: 0.08mm, Number of cores: 60, Insulator diameter: ø1.25)
    MaterialCase/Nut: Nickel plated Brass, Washer: Nickel plated Iron, Sensing surface: PBT,
    Standard cable(Black): Polyvinyl chloride(PVC), Oil resistant cable(Gray): Oil resistant Polyvinyl chloride(PVC)
    Approval
    Weight 3Approx. 64g(approx. 52g)

    Approx.84g

    (approx. 72g)

    Approx.122g

    (approx. 110g)

    Approx.207g

    (approx. 170g)

    Features:


    1 . Improved the noise resistance with dedicated IC
    2 . Built-in reverse polarity protection circuit (DC 3-wire type)
    3 . Built-in overcurrent protection circuit(DC type)
    4 . Long life cycle and high reliability, and simple operation
    5 . Replaceable for micro switches and limit switches


    Model explanation of proximity switch

    LM 18 30 05 N A □ / L
    —— —— - —— —— —— —— —— ——
    1 2 3 4 5 6 7 8

    Switch categoryOutput form


    Lm: Inductance type
    Cm: Capacitance type
    Sm: Hall type
    Am: Safety Explosion-proof type
    Xm: Mimic Linear type
    Hm: Reed type
    Ru: Ultrasonic type

    N: Three-wire Dc NpN Output
    P: Three-wire Dc PnP Output
    L: Two-wire Dc Output
    : Ac Two-wire Output
    J: Relay Contact Output
    Np: NpN+PnP Double Output

    Outward appearance codeOutput state


    □: Cylinder type
    F□: Angular Colum Type And Plane Installation Type


    A: (no) normally Open (no)
    B: (nc) Normally Close (nc)
    C: (no-nc) normally Open-Normally Close (no+nc)
    Mu: Mimic Voltage
    Mi: Mimic Current
    Mui: Voltage+Current

    Working voltageSubsidiart functions


    30: 6-36VDC 310:5-24VDC 320:12-60VDC
    330: 10-30VDC 340:10-55VDC 350:10-60VDC
    360: 5-36VDC 20:90-250VAC 210:24-250VAC
    220: 380VAC40:12-240VDC/24-240AC
    50: Special voltage

    T: with aviation connector
    Y: water proof,oil proof
    I: special requirement
    H: high temp resistance
    R: ring type

    Detection distanceLong-distance


    01: 1mm 05: 5mm 10: 10mm ......

    L: Long-distance



    Working priciple inductive proximity switch

    Inductive proximity switch is composed of three parts:oscillator,switch circuit and magnified output circuit.The oscillator will generate an alternating electric field.When hemetal object approaches this electric field and reaches the induction distance, whirlpool will generate in metal object, resulting in attenuation of vibrati on and then stop.The changeof vibration and stop of oscillator is treated by begid stage magnified circuit and convertedto switching sign,triggering driving con-contact detection.
    Current consumption of inductive proximity switch decreases proportional to the metal object distance.

    Application illustration of proximity switch

    1 . Spacing detection
    2 . Stopper detection of grinding machine
    3 . Bottle lid detection

    4 . Various location detection of machinery process center

    5 . Arm location detection of robot


    Dimension


    Product Picture



    FAQ

    Q: How to order our product ?

    A:1). Please tell us the model and quantity and other request you need.

    2). We make the PI for you.

    3). After you confirm the PI, we arrange the order for you after receiving your payment.

    4). After the goods finished, we send the goods out to you and tell you the tracking number.

    5). We will track your goods until you receive the goods.


    Q: What's your warranty ?

    A: Two years


    Q: What's your shipment method?

    A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.


    Q: What's about MOQ?

    A: First order MOQ=1pcs


    Q: If i want to release order, what's the payment method you accept ?

    A: We accept T/T, Paypal, Western union, L/C.


    Q: If i want to release order, what's the process?

    A: Thanks. You can send inquiry to us by Maoyt or send us by email, we will reply within 24hrs.
