    Winston Yellow Inductive Proximity Sensor NPN LMF33 , Adjustable Proximity Switch

    Ask Lasest Price
    Brand Name : Winston/OEM
    Model Number : LMF33
    Certification : CE,ROSH
    Price : Negotiable
    Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD
    Supply Ability : 10000PCS/Month
    Delivery Time : 3-15days after get payment.
    • Product Details
    • Company Profile

    Winston Yellow Inductive Proximity Sensor NPN LMF33 , Adjustable Proximity Switch

    Winston Yellow Inductive Proximity Sensor NPN LMF33 , Adjustable Proximity Switch
    Technique parameter

    Model NO.Detection distanceVoltageOutputFlush
    FormState
    LMF33-3005NA5mmDC6-36VNPNNOFlush
    LMF33-3005NB5mmDC6-36VNPNNCFlush
    LMF33-3005NC5mmDC6-36VNPNNO+NCFlush
    LMF33-3005PA5mmDC6-36VPNPNOFlush
    LMF33-3005PB5mmDC6-36VPNPNCFlush
    LMF33-3005PC5mmDC6-36VPNPNO+NCFlush
    LMF33-3005LA5mmAC90-250VTwo wire systemNOFlush
    LMF33-3005LB5mmAC90-250VTwo wire systemNCFlush
    LMF33-2005A5mmAC90-250VSCR Control Lable siliconNOFlush
    LMF33-2005B5mmAC90-250VSCR Control Lable siliconNCFlush
    LMF33-3008NA8mmDC6-36VNPNNONon-flush
    LMF33-3008NB8mmDC6-36VNPNNCNon-flush
    LMF33-3008NC8mmDC6-36VNPNNO+NCNon-flush
    LMF33-3008PA8mmDC6-36VPNPNONon-flush
    LMF33-3008PB8mmDC6-36VPNPNCNon-flush
    LMF33-3008PC8mmDC6-36VPNPNO+NCNon-flush
    LMF33-3008LA8mmAC90-250VTwo wire systemNONon-flush
    LMF33-3008LB8mmAC90-250VTwo wire systemNCNon-flush
    LMF33-2008A8mmAC90-250VSCR Control Lable siliconNONon-flush
    LMF33-2008B8mmAC90-250VSCR Control Lable siliconNCNon-flush

    Features:
    1 . Compact volume
    2 . High precision of repeated location
    3 . Gusrd of switch lead-wire
    4 . Good performance of anti-interference.
    5 . Many output forms
    6 . With short-circuit protection and inverted connecting protection

    Model explanation of proximity switch

    LM 18 30 05 N A □ / L
    —— —— - —— —— —— —— —— ——
    1 2 3 4 5 6 7 8

    Switch categoryOutput form


    Lm: Inductance type
    Cm: Capacitance type
    Sm: Hall type
    Am: Safety Explosion-proof type
    Xm: Mimic Linear type
    Hm: Reed type
    Ru: Ultrasonic type

    N: Three-wire Dc NpN Output
    P: Three-wire Dc PnP Output
    L: Two-wire Dc Output
    : Ac Two-wire Output
    J: Relay Contact Output
    Np: NpN+PnP Double Output

    Outward appearance codeOutput state


    □: Cylinder type
    F□: Angular Colum Type And Plane Installation Type


    A: (no) normally Open (no)
    B: (nc) Normally Close (nc)
    C: (no-nc) normally Open-Normally Close (no+nc)
    Mu: Mimic Voltage
    Mi: Mimic Current
    Mui: Voltage+Current

    Working voltageSubsidiart functions


    30: 6-36VDC 310:5-24VDC 320:12-60VDC
    330: 10-30VDC 340:10-55VDC 350:10-60VDC
    360: 5-36VDC 20:90-250VAC 210:24-250VAC
    220: 380VAC40:12-240VDC/24-240AC
    50: Special voltage

    T: with aviation connector
    Y: water proof,oil proof
    I: special requirement
    H: high temp resistance
    R: ring type

    Detection distanceLong-distance


    01: 1mm 05: 5mm 10: 10mm ......

    L: Long-distance



    Working priciple inductive proximity switch

    Inductive proximity switch is composed of three parts:oscillator,switch circuit and magnified output circuit.The oscillator will generate an alternating electric field.When hemetal object approaches this electric field and reaches the induction distance, whirlpool will generate in metal object, resulting in attenuation of vibrati on and then stop.The changeof vibration and stop of oscillator is treated by begid stage magnified circuit and convertedto switching sign,triggering driving con-contact detection.
    Current consumption of inductive proximity switch decreases proportional to the metal object distance.

    Application illustration of proximity switch

    1 . Spacing detection
    2 . Stopper detection of grinding machine
    3 . Adjustable swicth actiondistance(sensitivity)

    4 . Various location detection of machinery process center

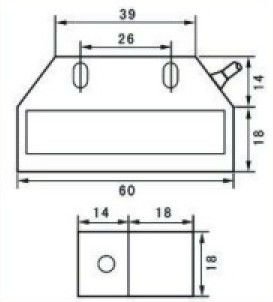

    Dimension


    Product Picture



    Our Services
    • Customized Samples are acceptable
    • Accept different payment methods, such as T/T, L/C, Western Union, Escrow to meet your different financial requirements
    • Welcome and accept 100% customers factory inspection before the production
    • Supply skills training including product basic knowledge, installation, operation, maintenance skills training for the local people
    • We provide 7 days 24 hours service!
