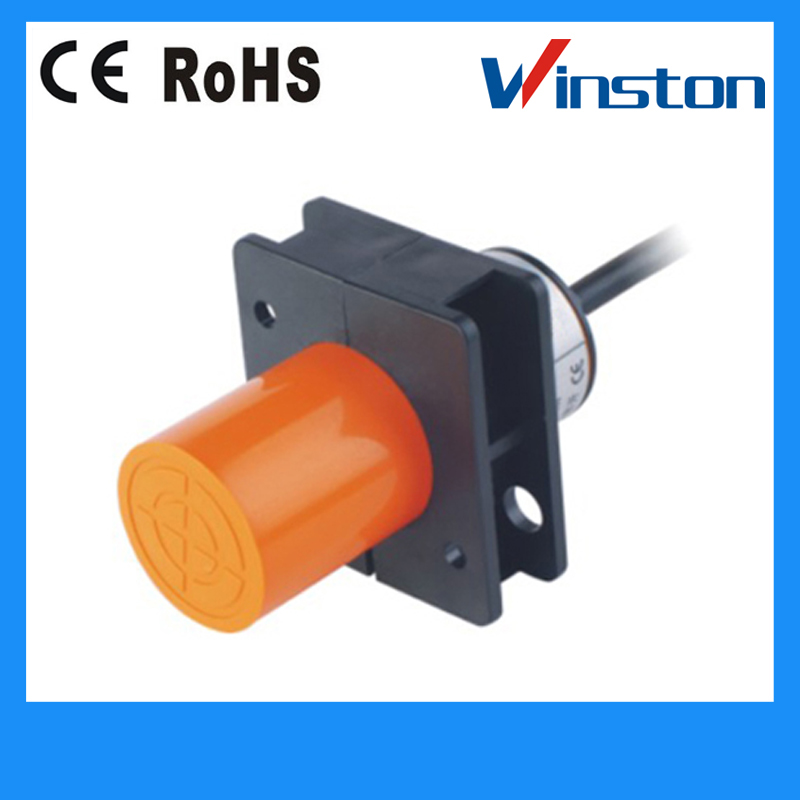

Silicon 2 Wire Proximity Sensor Capacitive CM34 , Infrared Proximity Switch

Ask Lasest Price
Brand Name :	Winston/OEM
Model Number :	CM34
Certification :	CE,ROSH
Price :	Negotiable
Payment Terms :	T/T,L/C,Paypal,Online Payment,RMB/USD
Supply Ability :	10000PCS/Month
Delivery Time :	3-15days after get payment.

Add to Cart

Product Details
Company Profile

Silicon 2 Wire Proximity Sensor Capacitive CM34 , Infrared Proximity Switch

Silicon 2 Wire Proximity Sensor Capacitive CM34 , Infrared Proximity Switch

Technique parameter

DETECTION DISTANCE
F l u s h	DC 6- 36 VDC AC 90- 250 VAC	NPN	NO
			NC
			NO+NC
		PNP	NO
			NC
			NO+NC
		SCR Control- lable silicon	NO
			NC
DETECTION DISTANCE 0-20mm
F l u s h	DC 6- 36 VDC AC 90- 250 VAC	NPN	NO	CM34-3020NA
			NC	CM34-3020NB
			NO+NC	CM34-3020NC
		PNP	NO	CM34-3020PA
			NC	CM34-3020PB
			NO+NC	CM34-3020PC
		SCR Control- lable silicon	NO	CM34-2020A
			NC	CM34-2020B
Detectable object				conductor and dielectric body
Consumption current				DC< 15mAAC< 10mA
Controloutput				DC: 200mA, AC: 300mA
Output voltagc dropDC/AC				DC< 3VAC< 7V
DC/AC Response frequency				DC: 50Hz, AC: 10Hz
Shell material				ABS Plastic
Working environment temperature				-25~70º C
Insulation resistance				50MΩ
Protection structure				IECstandard lp54
Altemative model at home and abroad				E2K-C25

Features:

1) Multiplicity appearance
2) Compact volume
3) High repeat orientation precision
4) Many output form
5) Strong protection distribution
6) High on-off frequency commonly 600Hz
7) Wide voltage range

Model explanation of proximity switch

LM 18 30 05 N A □ / L
—— —— - —— —— —— —— —— ——
1 2 3 4 5 6 7 8

Switch category	Output form
Lm: Inductance type Cm: Capacitance type Sm: Hall type Am: Safety Explosion-proof type Xm: Mimic Linear type Hm: Reed type Ru: Ultrasonic type	N: Three-wire Dc NpN Output P: Three-wire Dc PnP Output L: Two-wire Dc Output : Ac Two-wire Output J: Relay Contact Output Np: NpN+PnP Double Output
Outward appearance code	Output state
□: Cylinder type F□: Angular Colum Type And Plane Installation Type	A: (no) normally Open (no) B: (nc) Normally Close (nc) C: (no-nc) normally Open-Normally Close (no+nc) Mu: Mimic Voltage Mi: Mimic Current Mui: Voltage+Current
Working voltage	Subsidiart functions
30: 6-36VDC 310:5-24VDC 320:12-60VDC 330: 10-30VDC 340:10-55VDC 350:10-60VDC 360: 5-36VDC 20:90-250VAC 210:24-250VAC 220: 380VAC40:12-240VDC/24-240AC 50: Special voltage	T: with aviation connector Y: water proof,oil proof I: special requirement H: high temp resistance R: ring type
Detection distance	Long-distance
01: 1mm 05: 5mm 10: 10mm ......	L: Long-distance

Working priciple inductive proximity switch

Inductive proximity switch is composed of three parts:oscillator,switch circuit and magnified output circuit.The oscillator will generate an alternating electric field.When hemetal object approaches this electric field and reaches the induction distance, whirlpool will generate in metal object, resulting in attenuation of vibrati on and then stop.The changeof vibration and stop of oscillator is treated by begid stage magnified circuit and convertedto switching sign,triggering driving con-contact detection.
Current consumption of inductive proximity switch decreases proportional to the metal object distance.

Application illustration of proximity switch

1 . Spacing detection
2 . Various location detection of machinery process center

3 . Inspection of the exiating of milk inside the paper package

4 . Arm location detection of robot

5 . Bottle lid detection

6 . Stopper detection of grinding machine

Dimension

Product Picture

FAQ

Q: How to order our product ?

A: 1). Please tell us the model and quantity and other request you need.

2). We make the PI for you.

3). After you confirm the PI, we arrange the order for you after receiving your payment.

4). After the goods finished, we send the goods out to you and tell you the tracking number.

5). We will track your goods until you receive the goods.

Q: What's your warranty ?

A: Two years

Q: What's your shipment method?

A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.

Q: What's about MOQ?

A: First order MOQ=1pcs

Q: If i want to release order, what's the payment method you accept ?

A: We accept T/T, Paypal, Western union, L/C.

Q: If i want to release order, what's the process?

A: Thanks. You can send inquiry to us by Maoyt or send us by email, we will reply within 24hrs.
