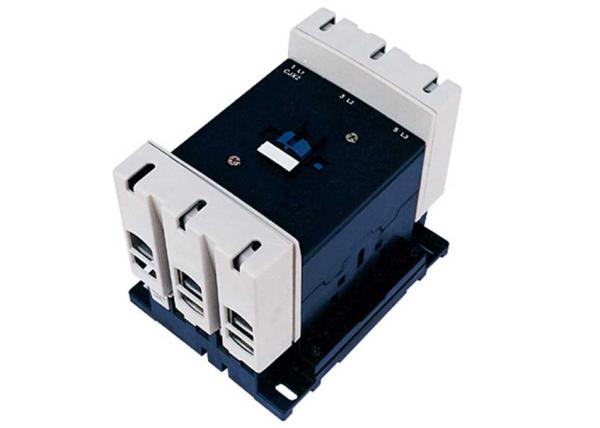

    CJX2(LC1-D) 115A to 630A 3 Phase Magnetic AC Contactor

    Ask Lasest Price
    Brand Name : Winston/OEM
    Model Number : CJX2-D115 CJX2-D150 CJX2-170 CJX2-205 CJX2-245 CJX2-300 CJX2-410 CJX2-475 CJX2-620
    Certification : CE,ROSH
    Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD
    Supply Ability : 10000PCS/Month
    Delivery Time : 3-15days after get payment.
    • Product Details
    • Company Profile

    CJX2(LC1-D) 115A to 630A 3 Phase Magnetic AC Contactor

    CJX2(LC1-D) 115A to 630A 3 Phase Magnetic AC Contactor


    CJX2 series AC Contactor is suitable for using in the circuits up to the rated voltage 660V AC50Hz or 60Hz, rated current up to 620A, for making, breaking, frequently starting & controllingthe AC motor. Combined with the auxiliary contact block, timer delay & machine-interlockingdevice etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter.With the thermal relay, it is combined into the electromagnetic starter. The product conforms toIEC60947-4-1 stardand.

    TECHNICAL PARAMETER

    TypeCJX2-D115CJX2-D150CJX2-D170CJX2-D205CJX2-D245CJX2-D300CJX2-D410CJX2-D475CJX2-D620
    Rated workingcurrent (A)AC3115150170205245300410475620
    AC452607585105117138147180

    Standard powerratings of 3-phase

    motors50/60Hz incategory AC-3

    220/230V3040556375100110147200
    380/400V557590110132160220265335
    415V5980100110132180220280375
    500V7590110129160200250355400
    660/690V80100110129160220280355450
    Rated heat current (A)2002502502753154005007001000
    Electrical lifeAC3 (x104)2006060505050303020
    AC4 (x104)151515151515885
    Mechanical life (x104)300300300300300300300100100100

    Type

    CJX2-D115

    CJX2-D150

    CJX2-D170

    CJX2-D205

    CJX2-D245

    CJX2-D300

    CJX2-D410

    CJX2-D475

    CJX2-D620

    Rated workingcurrent (A)

    AC3

    115

    150

    170

    205

    245

    300

    410

    475

    620


    AC4

    52

    60

    75

    85

    105

    117

    138

    147

    180

    Standard powerratings of 3-phase motors50/60Hz incategory AC-3

    220/230V

    30

    40

    55

    63

    75

    100

    110

    147

    200

    380/400V

    55

    75

    90

    110

    132

    160

    220

    265

    335

    415V

    59

    80

    100

    110

    132

    180

    220

    280

    375

    500V

    75

    90

    110

    129

    160

    200

    250

    355

    400

    660/690V

    80

    100

    110

    129

    160

    220

    280

    355

    450

    Rated heat current (A)

    200

    250

    250

    275

    315

    400

    500

    700

    1000

    Electrical life

    AC3 (x104)

    200

    60

    60

    50

    50

    50

    30

    30

    20

    AC4 (x104)

    15

    15

    15

    15

    15

    15

    8

    8

    5

    Mechanical life (x104)

    300

    300

    300

    300

    300

    300

    300

    100

    100

    100


    Standard Control Circuit Voltage

    Volts244248110220230240380400415440500600
    50HzB5D5E5F5M5P5U5Q5V5N5R5S5Y5
    60HzB6D6E6F6M6-U6Q6--R6--
    50/60HzB7D7E7F7M7P7U7Q7V7N7R7-

    -


    WIRING DIAGRAM


    FAQ

    Q: How to order our product ?

    A:1). Please tell us the model and quantity and other request you need.

    2). We make the PI for you.

    3). After you confirm the PI, we arrange the order for you after receiving your payment.

    4). After the goods finished, we send the goods out to you and tell you the tracking number.

    5). We will track your goods until you receive the goods.


    Q: What's your warranty ?

    A: Two years
