    Long Distance Stopping Motor AC Capacitor Contactor 1000V Rated Insulation Voltage

    Ask Lasest Price
    Brand Name : Winston/OEM
    Model Number : CJX1-N(3TF-N)
    Certification : CE,ROSH
    Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD
    Supply Ability : 10000PCS/Month
    Delivery Time : 3-15days after get payment.
    • Product Details
    • Company Profile

    Long Distance Stopping Motor AC Capacitor Contactor 1000V Rated Insulation Voltage

    Long Distance Stopping Motor AC Capacitor Contactor 1000V Rated Insulation Voltage

    CJX1 series AC contactors are suitable for frequency 50/60Hz,rated insulation voltage up to1000V,rated operation current 9~475A under AC-3 duty.It is mainly used for making/breakingelectric circuit at a long distance & for frequent starting/stopping & with thermal relay to com-pose a magnetic motor starter.The product conforms to IEC60947-4-1 stardand.

    TECHNICAL PARAMETER

    TypeRated thermalcurrent (A)Rated operationcurrent (A)Controllable power of motor(KW)
    AC 3AC 4
    380V660V380V660V380V660V
    CJX1-09N2093.345.51.42.4
    CJX1-12N20124.35.57.51.93.3
    CJX1-16N30167.77.5113.56
    CJX1-22N30228.5111146.6
    CJX1-32N453215.615237.513
    CJX1-45N453818.518.523915.5
    CJX1-63N70452422391220.8
    CJX1-75N70632830551424.3
    CJX1-85N90753437671729.5
    CJX1-110N90854245672136
    CJX1-140N15011054551002746.9
    CJX1-170N15014068751003560
    CJX1-205N18017075901563866
    CJX1-250N220205961101565086
    CJX1-300N30025011013223558100
    CJX1-400N

    300

    30012516023566114

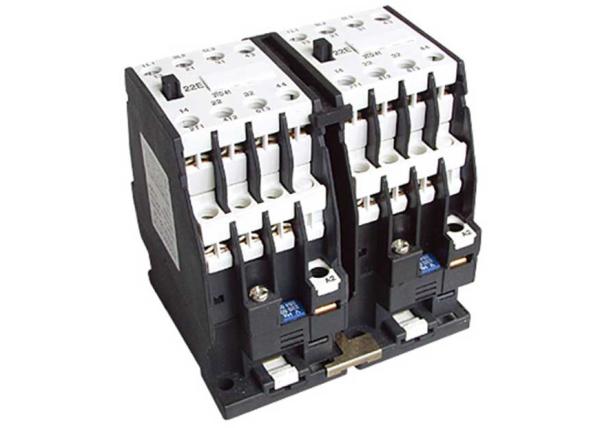

    PRODUCT PICTURE
