    Moderate Leakage Current 50Hz 60HZ Frequency Inverter Filter 0.4KW - 315KW

    Ask Lasest Price
    Brand Name : Winston/OEM
    Model Number : DL Series
    Certification : CE,ROSH
    Price : USD50 to USD1500
    Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD
    Supply Ability : 10000PCS/Month
    Delivery Time : 3-15days after get payment.
    • Product Details
    • Company Profile

    Moderate Leakage Current 50Hz 60HZ Frequency Inverter Filter 0.4KW - 315KW

    Moderate Leakage Current 50Hz 60HZ Frequency Inverter Filter 0.4KW - 315KW

    Main Features


    Wire current area
    Moderate leakage current
    The filters are suited for power supplies for industrial installations ,Particularly for the output filter used on inverter equipments . Such as inverter speed controlled systems .
    Rated voltage: 275/480VAC
    Operating frequency : 50/60HZ
    Rated current: 5A-1000A


    Input fiter & Output Filter for inverter selection

    VoltageInverter PowerCurrent (A)Input filterOutput filter
    220V0.4KW~0.75KW6ADL-6TH1
    1.5KW10ADL-10TH3
    2.2KW15ADL-15TH1
    380V1.5KW5ADL-5EBK5DL-5EBL5
    2.2KW10ADL-10EBK5DL-10EBL5
    3-5.5KW16ADL-16EBK5DL-16EBL5
    7.5KW25ADL-25EBK5DL-25EBL5
    11KW35ADL-35EBK5DL-35EBL5
    15-22KW50ADL-50EBK5DL-50EBL5
    30KW65ADL-65EBK5DL-65EBL5
    37KW80ADL-80EBK5DL-80EBL5
    45KW100ADL-100EBK5DL-100EBL5
    55KW130ADL-130EBK5DL-130EBL5
    75KW160ADL-160EBK5DL-160EBL5
    95KW200ADL-200EBK5DL-200EBL5
    110-132KW300ADL-300EBK3DL-300EBL3
    160KW400ADL-400EBK3DL-400EBL3
    200-250KW600ADL-600EBK3DL-600EBL3
    315KW800ADL-800EBK5DL-800EBL5


    Outline& Mounting Dimension(Unit:mm)

    ModelABCDEFGHIJKMNPL
    5EBK51841602024260861858M438---M46.4x9.4
    10EBK5
    16EBK5
    25EBK524322426558701022592M658M47449M66.4x9.4
    35EBK5
    50EBK5
    65EBK5
    80EBK5354323388661551889092M862M48656M86.4x9.4
    100EBK5
    130EBK5
    160EBK5
    200EBK5
    250EBK529021035044023426225160M122512
    320EBK5
    400EBK5
    600EBK5
    800EBK529023035653625528025220M122513

    Dimension:

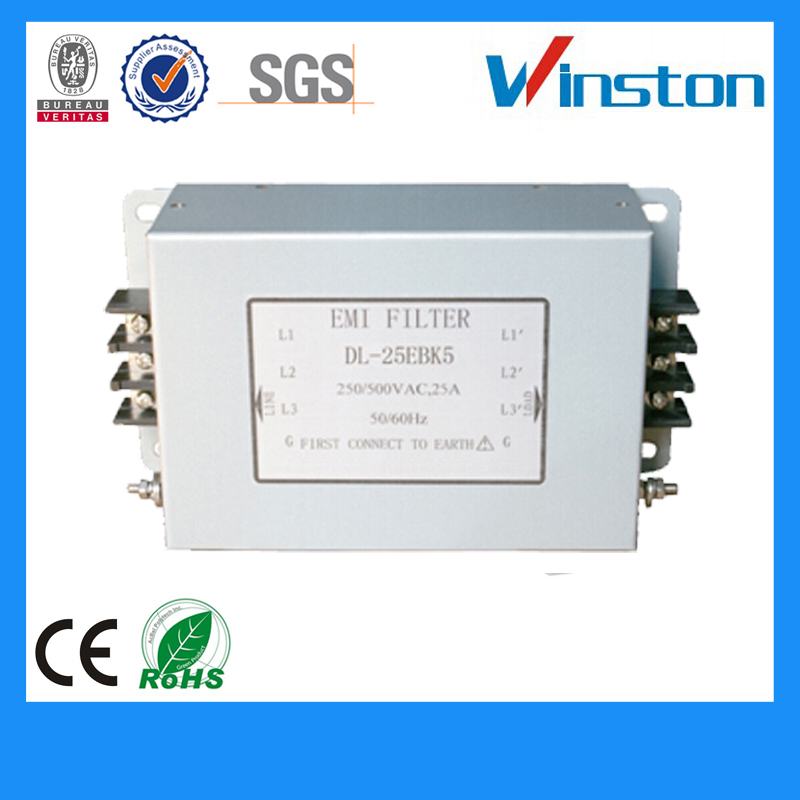

    Product picture:



    Our Services
    • Customized Samples are acceptable
    • Accept different payment methods, such as T/T, L/C, Western Union, Escrow to meet your different financial requirements
    • Welcome and accept 100% customers factory inspection before the production
    • Supply skills training including product basic knowledge, installation, operation, maintenance skills training for the local people
    • We provide 7 days 24 hours service!

    PS: If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.
