    WST Series Three Phase Braking Resistor Fireproof High Temperature Resistant

    Ask Lasest Price
    Brand Name : Winston/OEM
    Model Number : WST Series
    Certification : CE,ROSH
    Price : USD50 to USD1500
    Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD
    Supply Ability : 10000PCS/Month
    Delivery Time : 3-15days after get payment.
    • Product Details
    • Company Profile

    WST Series Three Phase Braking Resistor Fireproof High Temperature Resistant

    WST Series Three Phase Braking Resistor Fireproof High Temperature-Resistant

    Two terminal extensions are fixed on both ends of a ceramic tube on whose surface winds wave-shaped alloy resistance wire and a high temperature-resistant and fireproof coating are applied. The ceramic tube can function as resistance wire skeleton and heat radiator as well . This product can be customized to special needs of customers and applicable to simulation load test, equipend discharge, automated control and inverter’s energy loss brake.

    Technical Data :
    Rated Power Range: 50W-2500W
    Voltage Range: 0.5KV—10KV
    Resistance Range: 1R-1KR
    Dielectric Voltage: AC2.5KV-20KV/1min 50Hz
    IP Class: IP00
    Vibration: 1g
    Rated Temperature Rise: 375℃
    Temperature Coefficient: 80-400ppm/℃
    Carrier Material: 0Cr25AL5/Ni80Cr20 Optional
    Advantage: Work in high voltage
    Disadvantage: Inferior vibration
    Packing: Paper box

    Technique parameter:


    Rated power (w)Dimension(mm)
    L1(±2)L2(±5)L3(±3)D(±2)BB1HH1(±3)N¢dO
    50102124146286.5282861104.51.2
    60102124146286.5282861104.51.2
    80152174196286.5282861104.51.2
    100182204226286.5282861104.51.2
    120182204226286.5282861104.51.2
    150195217239408404181125.52
    200195217239408404181125.52
    300282304326408404181125.52
    400282304326408404181125.52
    50031633836050850451011662
    600345367389408404181125.52
    75031633836050850451011662
    1000300325350608.560601191662
    1200415440465608.560601191662
    1500415440465608.560601191662
    2000510535560608.560601191662
    2500600625650608.560601191662

    Outline& Mounting Dimension(Unit:mm)

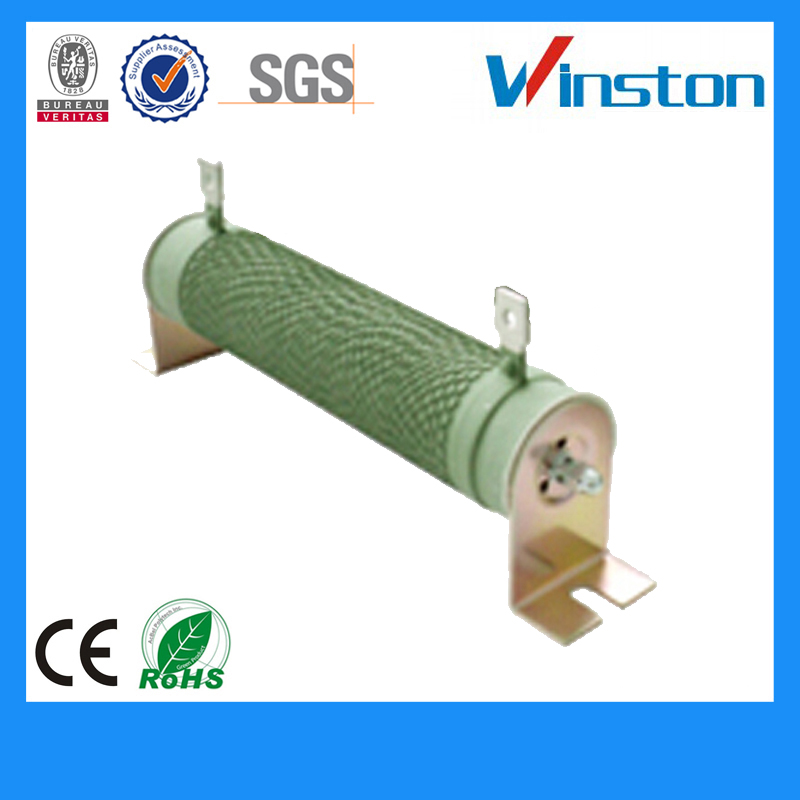

    Product picture:
