    DC10V - 30V Color Mark NPN Proximity Switch Coaxial Reflection Self Locating CE ROHS

    Ask Lasest Price
    Brand Name : Winston/OEM
    Model Number : BZJ-311
    Certification : CE,ROSH
    Price : negotion
    Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD
    Supply Ability : 10000PCS/Month
    Delivery Time : 3-15days after get payment.
    • Product Details
    • Company Profile

    DC10V - 30V Color Mark NPN Proximity Switch Coaxial Reflection Self Locating CE ROHS

    DC10V - 30V Color Mark NPN Proximity Switch Coaxial Reflection Self Locating CE ROHS


    Main features:


    BZJ series color code sensor applies the light emitting and the receiving principle.It will send out modulating light,receive the reflecting lights from detected object,and distinguish the color or recognize the existence of objects according the intensity of the receiving signals.It can serve for sensor in the automaticcontrol systems for packing machiney,printing machinery,texture and paper making machinery ect and be used with other instruments to detect the existence of the object marked with color code,pattern code,line or others.It has the functions of self-locating,recognizing colors,rectifying deviation,pattern checking and countering.The sensor applies optical technique,semi-conductor electronic technique and modulation demodulation,and has the features of high sensitivity,quick response speed,strong anti-background interference,compact structure and convenient operation.

    Specifications:


    BZJ Series of color-sensor
    Model and technical parameters
    Outward appearance codeBZJ-311
    Size(mm)38×62×100
    Supply Voltage10-30VDC
    Ambient temperature0-50°C
    Detecting methodCoaxial reflection
    Detecting distance9mm
    Chromatogram of lightRed,Green,Blue,White
    Faculacircular
    Response time50us
    Output current<200mA
    Output typeNPN
    Shell materialmetal
    Cable Length2m
    ProtectionRP-power protection,load short-circuit protection
    Weight500g

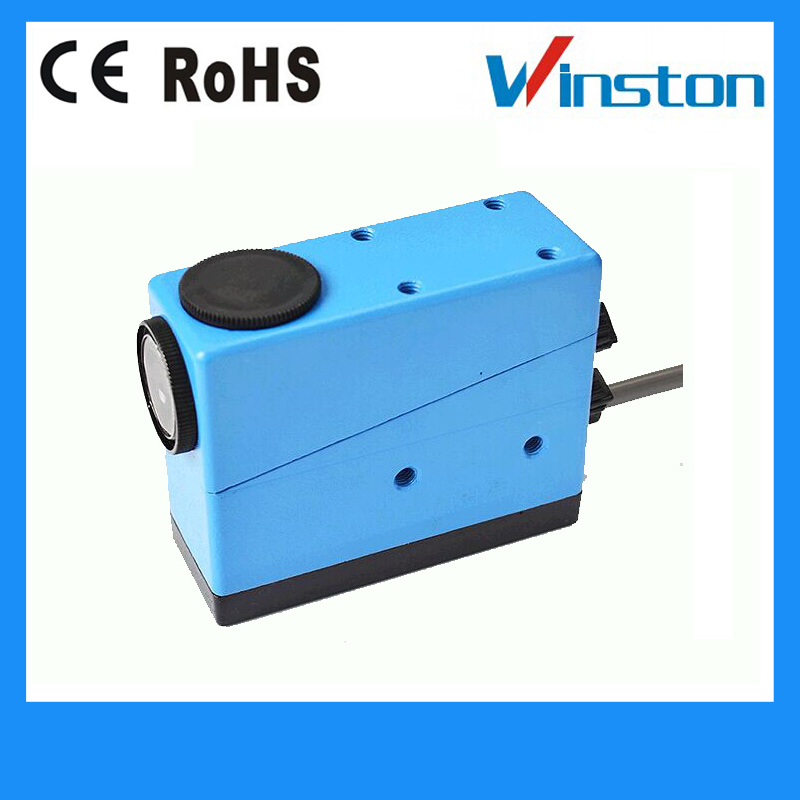

    Product Picture



    Control diagram
