    Engineering Color Mark Photoelectric Proximity Sensor , Color Detector Sensor

    Ask Lasest Price
    Brand Name : Winston/OEM
    Model Number : KS-C2(C22)
    Certification : CE,ROSH
    Price : negotion
    Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD
    Supply Ability : 10000PCS/Month
    Delivery Time : 3-15days after get payment.
    • Product Details
    • Company Profile

    Engineering Color Mark Photoelectric Proximity Sensor , Color Detector Sensor

    Engineering Color Mark Photoelectric Proximity Sensor , Color Detector Sensor


    Description:


    Photoelectric sensor, or photo eye, is a device used to detect the distance, absence, or presence of an object by using a light transmitter, often infrared, and a photoelectric receiver. They are used extensively in industrial manufacturing. Taiwan Kontec Photoelectric sensor adopts the coaxial reflective type; emission sources used special Poly-type LED light; and several different light sources for option. Widely used for all kinds of vertical automatic packaging machines, Horizontal packaging machines, all kinds of bag making machines, cutting machine, slitting machine, and printing machines. As a color-coded identification sign, it can precisely control bags' length and auto-correction.


    1. Outputting white and green light for option.
    2. Coaxial reflective type optical design
    3. Small light spot, precise detection.
    4. Output short circuit protection design.
    5. Power supply: DC 12-30V.
    Main features:

    1 . Coaxial optical design, more adaptable to surfaces of high-reflectance(such as Aluminum foil)

    2 . Small light spot, excellent resolution.

    3 . With sensitivity adjustment knob, need no tool to adjust.

    4 . With light sources of blue, green, red, and various other colors for selection, more accurately to identify various colors.


    Specifications:


    Type

    Light source

    Cable

    Type

    Light source

    cable

    TR22

    Red

    Four wire

    TR2

    Red

    Three wire

    RG22

    Green

    Four wire

    RG2

    Green

    Three wire

    T22

    Red+green

    Four wire

    T2

    Red+green

    Three wire

    C2(C22)

    Green+blue

    Four wire

    TB2

    Green+blue

    Three wire

    TW22

    Green-white

    Four wire

    TW2

    Green-white

    Three wire




    KS-C2W

    KS-C2G

    KS-C2R

    KS-C2R/G

    KS-C2W/G

    Light source

    White

    Green

    Red

    Red/green

    White/green

    Detection

    coaxial reflective type

    Detection distance

    10mm±2mm

    Cast bare point

    1.0mm

    Supply voltage

    DC12-30V

    Power consumption

    40mA or less

    Response time

    Less 1mS

    Output form

    NPN type lights moving / dark dynamic dual output

    Protection function

    Supply voltage reverse polarity protection, short-circuit protection

    Operation instruction

    red LED, bright Activity directions

    Operating ambient

    temperature: -5 ° C -50 ° C sunshine <10000Lux incandescent <30000Lux

    Lead

    four-core cable (brown, yellow, white, blue) standard length 2m

    Dimensions

    95(L)×45(H)×15(W)mm

    Control diagram

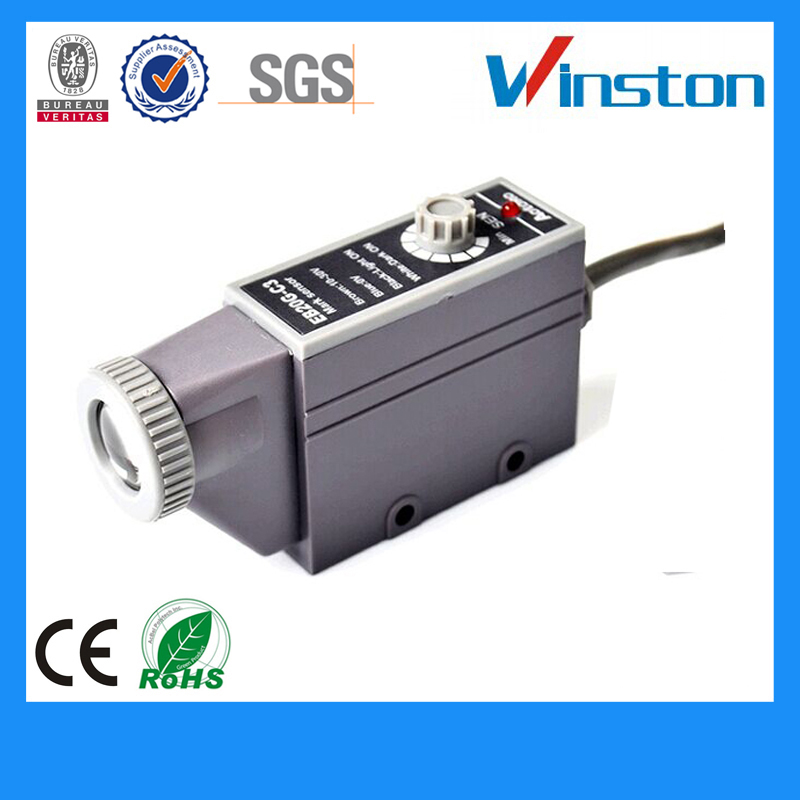

    Product Picture
