SM18 Waterproof Hall Proximity Sensor Logic Circuit Transistor 24v Metal

    Buy cheap SM18 Waterproof Hall Proximity Sensor Logic Circuit Transistor 24v Metal from wholesalers

    Buy cheap SM18 Waterproof Hall Proximity Sensor Logic Circuit Transistor 24v Metal from wholesalers
    • Buy cheap SM18 Waterproof Hall Proximity Sensor Logic Circuit Transistor 24v Metal from wholesalers
    • Buy cheap SM18 Waterproof Hall Proximity Sensor Logic Circuit Transistor 24v Metal from wholesalers
    • Buy cheap SM18 Waterproof Hall Proximity Sensor Logic Circuit Transistor 24v Metal from wholesalers

    SM18 Waterproof Hall Proximity Sensor Logic Circuit Transistor 24v Metal

    Ask Lasest Price
    Brand Name : Winston/OEM
    Model Number : SM18
    Certification : CE,ROSH
    Price : Negotiable
    Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD
    Supply Ability : 10000PCS/Month
    Delivery Time : 3-15days after get payment.
    • Product Details
    • Company Profile

    SM18 Waterproof Hall Proximity Sensor Logic Circuit Transistor 24v Metal

    SM18 Waterproof Hall Proximity Sensor Logic Circuit Transistor

    Brief Introduction
    SM series Hall sensor is a kind of magnetic-sensitive sensor consisting of voltage regulator, Hall voltage generator, differential amplifer, Schmidt trigger and the output pole of collector open circuit. Its input is the magnetic flux density. The output is adigital voltage signal.
    Technique parameter
    Detectable objectPermanent magnet
    Mains current8mA
    ON-OFF frequency320KHz
    Working point magnetic density22mT
    Shell materiaMetal


    Order code
    Working voltageOutput formOutput state
    Detection distance : 10mm,
    SM18-31010NADC4.5-24VNPNNO
    SM18-31010PADC4.5-24VPNPN0
    SM18-31010NBDC4.5-24VNPNNC
    SM18-31010PBDC4.5-24VPNPNC

    Features:


    1 . Wide mains voltage range
    2 . Long service life, compact volume, and convenient installation

    3 . Directly connect to transistor and logic circuit pore like, TTL.MOS

    4 . high precision of repeated location


    Model explanation of proximity switch

    LM 18 30 05 N A □ / L
    —— —— - —— —— —— —— —— ——
    1 2 3 4 5 6 7 8

    Switch categoryOutput form


    Lm: Inductance type
    Cm: Capacitance type
    Sm: Hall type
    Am: Safety Explosion-proof type
    Xm: Mimic Linear type
    Hm: Reed type
    Ru: Ultrasonic type

    N: Three-wire Dc NpN Output
    P: Three-wire Dc PnP Output
    L: Two-wire Dc Output
    : Ac Two-wire Output
    J: Relay Contact Output
    Np: NpN+PnP Double Output

    Outward appearance codeOutput state


    □: Cylinder type
    F□: Angular Colum Type And Plane Installation Type


    A: (no) normally Open (no)
    B: (nc) Normally Close (nc)
    C: (no-nc) normally Open-Normally Close (no+nc)
    Mu: Mimic Voltage
    Mi: Mimic Current
    Mui: Voltage+Current

    Working voltageSubsidiart functions


    30: 6-36VDC 310:5-24VDC 320:12-60VDC
    330: 10-30VDC 340:10-55VDC 350:10-60VDC
    360: 5-36VDC 20:90-250VAC 210:24-250VAC
    220: 380VAC40:12-240VDC/24-240AC
    50: Special voltage

    T: with aviation connector
    Y: water proof,oil proof
    I: special requirement
    H: high temp resistance
    R: ring type

    Detection distanceLong-distance


    01: 1mm 05: 5mm 10: 10mm ......

    L: Long-distance



    Application illustration of proximity switch

    1 . Spacing detection

    2 . Inspection of the exiating of milk inside paper package

    3 . Bottle lid detection

    4 . Various location detection of machinery process center

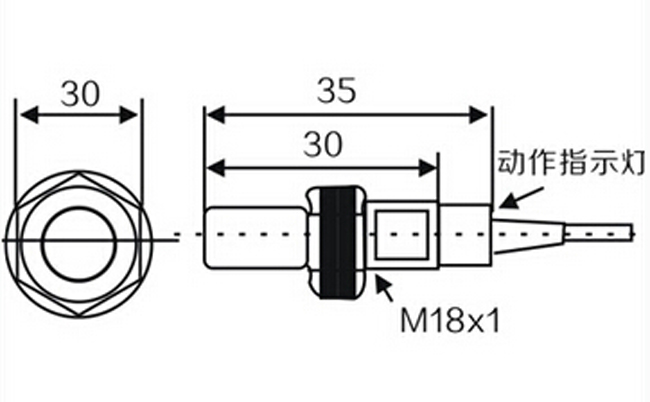

    Dimension



    Product Picture
