NS Series Moulded Case Adjustable Circuit Breaker Leakage Protection

Ask Lasest Price
Brand Name :	Winston/OEM
Model Number :	NS
Certification :	CE,ROSH
Price :	USD12 to USD450/PCS
Payment Terms :	T/T,L/C,Paypal,Online Payment,RMB/USD
Supply Ability :	10000PCS/Month
Delivery Time :	3-15days after get payment.

Add to Cart

Product Details
Company Profile

NS Series Moulded Case Adjustable Circuit Breaker Leakage Protection

NS Series Moulded Case Adjustable Circuit Breaker Leakage Protection

NS series moulded case circuit breaker is one of breaker which adopts international ad-vanced design, manufacture technology to develop. The rated insulating voltage is 750V, suit-able for AC 50Hz(60Hz),rated working voltage 690V or below, rated working current is 12.5A to1250A of circuit and used in distributing electric energy, and non-frequent breaking in the nor-mal conditions , protecting the current& equipment from overload&under voltage, circuit breakerwith rated frame current 400A or below,can be used in mousecage motor's non-frequent start,breaking during working, protecting motor from overload, short circuit&undervoltage,the prod-uct conforms to IEC60947-2 standard.

TECHNICAL PARAMETER

2. Main Technical Specifications

Type	Pole number	Rated insulating voltage(V)	Rated operating voltage(V)	Rated ultimate short circuit breaking capacity Icu (KA) at 380/415V	Rated servies short circuit breaking capacity Ics at 380/415V(KA)	Operation performance		Utilization category
						ON	OFF
NS-100N	3, 4pole	750	690 and below	25	25	1500	8500	A
NS-100H				70	70
NS-100L				150	150
NS-160N				36	36	1000	7000
NS-160H				70	70
NS-160L				150	150
NS-250N				36	36	1000	7000
AM2-250H				70	70
NS-250L				150	150
NS-400N				45	45	1000	4000
NS-400H				70	70
NS-400L				150	150
NS-630N				45	45	1000	4000
NS-630H				70	70
NS-630L				150	150
NS-1250N	3 pole			50	37.5	1000	4000
NS-1600N				50	37.5

Note: 1. The N-pole breaker has no protection which closing and opening with the other three poles.

2. The type of thermal magnetic for NS-400/630 has no four poles.

3 Trip units main technical parameter
Thermal magnetic release

NS Series Moulded Case Adjustable Circuit Breaker Leakage Protection

Type	Rated currentIn(A)	Note
NS-100	12.5,16,20,25,32,40,50,63,80,100	Tadjustable (0.8~1In)M adjustable (5~10In)
NS-160	16,20,25,32,40,50,63,80,100,125,160
NS-250	160,180,200,225,250
NS-400	315,350,400
NS-630	400,500,630
NS-1250	800,1000,1250	Tadjustable (0.8~1In)M fixed
NS-1600	1000,1250,1600	Tadjustable (0.8~1In)M fixed

Electronic release
NS 22SE: protection of low-voltage distribution networks for NS-100160250
NS Series Moulded Case Adjustable Circuit Breaker Leakage Protection

NS Series Moulded Case Adjustable Circuit Breaker Leakage Protection

1. Overload protection with adjustable threshold
2. Short-circuit protection with adjustable threshold
3. Load indication : light at 90% of Ir setting threshold;
Flashing at 105% or more of Ir setting threshold

Type	Rated current In(A)	Note
NS-100	40,100	Ir=0.4~1×In(adjustable 48 setting) Tripping between 1.05~.3×Ir (IEC60947-2) (Long-time overload protection) Im=2-3-4-5-6-7-8-10×Ir (Short-circuit protection)
NS-160	40,100,160
NS-250	40,100,160,250

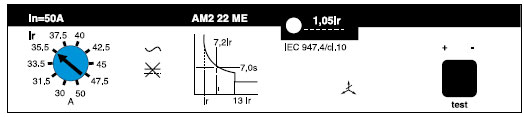

NS 22ME: protection of motor for NS-100160250

NS Series Moulded Case Adjustable Circuit Breaker Leakage Protection
1. Overload protection with adjustable threshold, as defined by IEC60947-4 (2) tripping class 10
2. Short-circuit protection with fixed threshold (13xIr)
3. phase failure protection (tripping time delay between 3.5s-6s)
4. Load indication : dark less than 105% of Ir setting threshold;
Flashing at 105% or more of Ir setting threshold

Type	Rated current In(A)	Note
NS-100	40,50,80,100	Ir=0.6-0.63-0.67-0.71-0.75-0.80-0.85-0.90-0.95-1×In
NS-160	40,50,80,100,150
NS-250	40,50,80,100,150,220

NS 23SE: protection of low-voltage distribution networks for NS-400630

NS Series Moulded Case Adjustable Circuit Breaker Leakage Protection

Type	Rated current In(A)	Note
NS-400	400	Ir=0.4~1×In(adjustable 48 setting) Tripping between 1.05~1.3×Ir (IEC60947-2) (Long-time overload protection) Im=2-3-4-5-6-7-8-10×Ir (Short-circuit protection)
NS-630	630

NS 53UE: protection of low-voltage distribution networks for NS-400630

NS Series Moulded Case Adjustable Circuit Breaker Leakage Protection

1. Overload protection with adjustable threshold, as defined by IEC60947-2
2. Short-circuit protection with adjustable threshold
3. Instantaneous short-circuit protection
4. Earth fault protection with adjustable threshold
5. Load indication : light at 90% of Ir setting threshold;
Flashing more than Ir setting threshold
6. Fault indication
LEDs indicates the type of fault that caused tripping
Overload (LT protection) or abnormal component temperature (>Ir);
Short-circuit (ST or instantaneous protection)( >Im);
Earth fault (if earth fault protection option is present)(Ig);
Microprocessor malfunction (both (>Ir) and ( >Im) LEDs go on ,plus the (Ig) LEDs if earth fault protection option is present )
Battery powered. Spare battery are supplied in an adapter box. When a fault occurs , the LED indicating the type of fault ,lights for about 10 minutes . The information is however stored in memory . The LED can be illuminated by pressing the test pushbutton. The LED automatically goes off and the memory is cleared when the circuit breaker is reset .

Type	Rated current In(A)	Note
NS-400	400	Ir=0.4~1×In(adjustable 48 setting) Tripping between 1.05~1.3×Ir (IEC60947-2) at 6×Ir Trip time: 1s, 2s, 4s, 8s, 16s(adjustable) (Long-time overload protection) Isd=1.5-2-3-4-5-6-7-8-10×Ir Trip time: 0s, 0.1s, 0.2s, 0.3s adjustable+I2t (Short-circuit short time delay protection) Ii=1.5-2-3-4-6-7-8-10-11×Ir (Instantaneous short-circuit protection) Ig=0.1-0.2-0.3-0.4-0.5-0.6-0.7-0.8-1×Ir Trip time: 0.1s, 0.2s, 0.3s, 0.4s adjustable+I2t (Earth fault protection) (If option is present)
NS-630	630

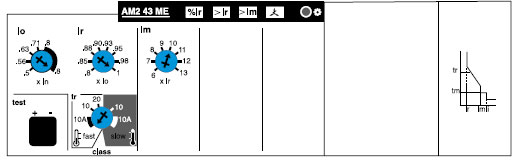

NS 43ME: protection of motor for NS-400630

NS Series Moulded Case Adjustable Circuit Breaker Leakage Protection

1. Overload protection with adjustable threshold, as defined by IEC60947-4 (2) tripping class 10A,10 and 20
2. Short-circuit protection with adjustable threshold (6...13xIr)
3. Phase failure protection (built-in electronic release: operates unbalanced single-phase currentat 40% and more than )(tripping time delay 4s¡À10%),as defined by IEC60947-4.1
4. Load indication : Flashing more than Ir setting threshold
5. Fault indication
LEDs indicates the type of fault that caused tripping
Overload (LT protection) or abnormal component temperature (>Ir);
Short-circuit (ST or instantaneous protection)( >Im);
Phase failure (right LED);
Microprocessor malfunction ( (>Ir) ( >Im) and phase failure LEDs all go on )
Battery powered. Spare battery are supplied in an adapter box. When a fault occurs ,the LEDindicating the type of fault ,lights for about 10 minutes . The information is however stored inmemory . The LED can be illuminated by pressing the test pushbutton. The LED automaticallygoes off and the memory is cleared when the circuit breaker is reset .

Type	Rated current In(A)	Note
NS-400	400	Ir=0.4~1×In(adjustable 48 setting) Trip degree: class 10A, 10,20(IEC60947-4) (Long-time overload protection) Im=6-7-8-9-10-11-12-13×Ir (Short-circuit protection)
NS-630	630

4. Accessories

Accessories	Rated operating voltage	Consumption		For type
		Pick-up	Seal-in
Shunt release(MX)	24V 100V 220/230V 380/400V	<10VA	<5VA	AM2-100~630
Under-voltagerelease(UN)	220/230V 380/400V	<10VA	<5VA

Accessories	Rated operating voltage	Consumption		For type
		AC12	AC15
Auxiliary contact(OF)	380/400V	6	3	AM2-100~630
Alarm contact(AL)	380/400V	6	3

Rotary handle
Direct rotary handle
Degree of protection:IP40
Function:
1) suitability for isolation
2) indication of three positions 0(off) I(on) and tripped
3) press "push to trip" button, can trip-free
4) visibility of and access to trip unit settings
5) the circuit breaker can be locked in the off position by one to three padlocks , diameter 5 to 8mm(not supplied)
Extended rotary handle
Degree of protection:IP55
Function:
1) Suitability for isolation
2) Indication of three positions 0(off) I(on) and tripped
3) Visibility of and access to trip unit settings when the door is open
4) Door opening prevented when circuit breaker is on
5) The circuit breaker can be locked in the off position by one to three padlocks , diameter 5 to 8mm(not supplied).Locking prevents opening of the switchboard door

5.Installation
Circuit breaker may be mounted vertically, horizontally or flat on their back without any derating of characteristics.
6.Fix
Mounting on backplate , mounting on rails
7.Connection
Front panel connection , black panel connection , plug-in connection
8. Outline and Installation Dimension

NS-100~630

mm	C	C1	C2	C3	G	G1	G4	G5	H	H1	H2
NS 100/160/250N/H/L	29	76	54	108	62.5	125	70	140	80.5	161	94
NS 400/630N/H/L	41.5	116	92.5	184	100	200	113.5	227	127.5	255	142.5

mm	H3	H4	H5	H6	H7	K	K1	K2	L	L1	L2	P1	P2	P4	P5
NS 100/160/250N/H/L	188	160.5	321	178.5	357	17.5	35	70	52.5	105	140	81	86	111*	83
NS 400/630N/H/L	285	240	480	237	474	22.5	45	90	70	140	185	95.5	110	168	107

mm	P6	R	R1	R2	R4	R5	φT	φT4	(Ue)
NS 100/160/250N/H/L	88	14.5	29	54	108	143	6	22	≤32
NS 400/630N/H/L	112	31.5	63	71.5	143	188	6	32	≤32
