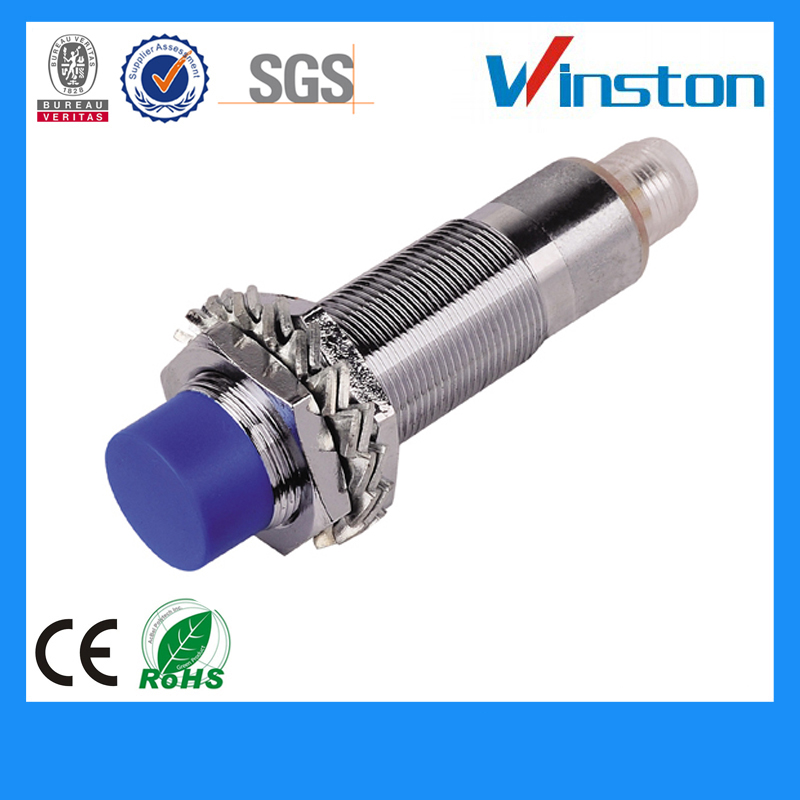

LM18-T Cylinder Inductive Proximity Sensor Detection Distance Anti-interference

    Buy cheap LM18-T Cylinder Inductive Proximity Sensor Detection Distance Anti-interference from wholesalers

    Buy cheap LM18-T Cylinder Inductive Proximity Sensor Detection Distance Anti-interference from wholesalers
    • Buy cheap LM18-T Cylinder Inductive Proximity Sensor Detection Distance Anti-interference from wholesalers
    • Buy cheap LM18-T Cylinder Inductive Proximity Sensor Detection Distance Anti-interference from wholesalers
    • Buy cheap LM18-T Cylinder Inductive Proximity Sensor Detection Distance Anti-interference from wholesalers

    LM18-T Cylinder Inductive Proximity Sensor Detection Distance Anti-interference

    Ask Lasest Price
    Brand Name : Winston/OEM
    Model Number : LM18-T
    Certification : CE,ROSH
    Price : Negotiable
    Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD
    Supply Ability : 10000PCS/Month
    Delivery Time : 3-15days after get payment.
    • Product Details
    • Company Profile

    LM18-T Cylinder Inductive Proximity Sensor Detection Distance Anti-interference

    LM18-T Cylinder Inductive Proximity Sensor Detection Distance Anti-interference
    Technique parameter

    Model NO.Detection distanceWorking voltageOutputFlush
    FormState
    LM24-3008NA8mmDC6-36VNPNNOFlush
    LM24-3008NB8mmDC6-36VNPNNCFlush
    LM24-3008NC8mmDC6-36VNPNNO+NCFlush
    LM24-3008PA8mmDC6-36VPNPNOFlush
    LM24-3008PB8mmDC6-36VPNPNCFlush
    LM24-3008PC8mmDC6-36VPNPNO+NCFlush
    LM24-3008LA8mmDC6-36VTwo wire systemNOFlush
    LM24 -3008LB8mmDC6-36VTwo wire systemNCFlush
    LM24 -2008A8mmAC90-250VSCR Control
    label silicon
    NOFlush
    LM24-2008B8mmAC90-250VSCR Control
    label silicon
    NCFlush
    LM24 -2008C8mmAC90-250VSCR Control
    label silicon
    NO+NCFlush
    LM24-3010NA10mmDC6-36VNPNNONon-flush
    LM24-3010NB10mmDC6-36VNPNNCNon-flush
    LM24-3010NC10mmDC6-36VNPNNO+NCNon-flush
    LM24-3010PA10mmDC6-36VPNPNONon-flush
    LM24-3101PB10mmDC6-36VPNPNCNon-flush
    LM24-3010PC10mmDC6-36VPNPNO+NCNon-flush
    LM24-3010LA10mmDC6-36VTwo wire systemNONon-flush
    LM24 -3010LB10mmDC6-36VTwo wire systemNCNon-flush
    LM24 -2010A10mmAC90-250VSCR Control
    label silicon
    NONon-flush
    LM24-2010B10mmAC90-250VSCR Control
    label silicon
    NCNon-flush
    LM24 -2010C10mmAC90-250VSCR Control
    label silicon
    NO+NCNon-flush

    Features:
    Compact volume
    high precision of repeated location
    Diversified exterior structures
    Good performance of anti-interference.
    Many output forms
    High on-off frequency.
    Wide voltage range
    Dust proof,vibration proof,water proof and oil proof.
    With short-circuit protection and inverted connecting protection.
    Long service life

    Model explanation of proximity switch

    1. Switch category(LM: inductance type; CM: capactitance type;SM:Hall type; AM:safety explosion-proof type; XM: mimic linear type)
    2. Outward appearance code(C: Cylinder type; F: Angular column type and planeinstallation type)
    3. Operating voltage(30: 6-36VDC; 310: 5-24VDC; 320: 12-60VDC; 20:90-250VAC; 210: 24-250VAC;220: 380VAC; 40: 12-240VDC/24-240AC; 50: Special voltage)
    4. Detection distance( 01: 1mm; 05:5mm; 10:10mm)
    5. Output method (N: Three-line DC NPN output;P: Three-line DC PNP output;
    L: Two-line DC output; AC two-wire output;J: Relay output;NP: NPN+PNP output)
    6. Output status(A: NO; B: NC; C: NO+NC; MU: Mimic voltage; MI: Mimic current)
    7. Auxi function code(T: With connector; Y: Water proof, oil proof; I: Special requirement;
    H: High temp resistance; R: Ring type)


    Model explanation of proximity switch


    LM 18 30 05 N A □ / L

    —— —— - —— —— —— —— —— ——

    1 2 3 4 5 6 7 8


    Switch categoryOutput form

    Lm: Inductance type

    Cm: Capacitance type

    Sm: Hall type

    Am: Safety Explosion-proof type

    Xm: Mimic Linear type

    Hm: Reed type

    Ru: Ultrasonic type

    N: Three-wire Dc NpN Output

    P: Three-wire Dc PnP Output

    L: Two-wire Dc Output

    : Ac Two-wire Output

    J: Relay Contact Output

    Np: NpN+PnP Double Output

    Outward appearance codeOutput state

    □: Cylinder type

    F□: Angular Colum Type And Plane Installation Type



    A: (no) normally Open (no)

    B: (nc) Normally Close (nc)

    C: (no-nc) normally Open-Normally Close (no+nc)

    Mu: Mimic Voltage

    Mi: Mimic Current

    Mui: Voltage+Current


    Working voltageSubsidiart functions

    30: 6-36VDC 310:5-24VDC 320:12-60VDC

    330: 10-30VDC 340:10-55VDC 350:10-60VDC

    360: 5-36VDC 20:90-250VAC 210:24-250VAC

    220: 380VAC40:12-240VDC/24-240AC

    50: Special voltage


    T: with aviation connector

    Y: water proof,oil proof

    I: special requirement

    H: high temp resistance

    R: ring type

    Detection distanceLong-distance

    01:1mm 05:5mm 10:10mm ......

    L: Long-distance

    Working priciple inductive proximity switch


    Inductive proximity switch is composed of three parts:oscillator,switch circuit and magnified output circuit.The oscillator will generate an alternating electric field.When hemetal object approaches this electric field and reaches the induction distance, whirlpool will generate in metal object, resulting in attenuation of vibrati on and then stop.The changeof vibration and stop of oscillator is treated by begid stage magnified circuit and convertedto switching sign,triggering driving con-contact detection.

    Current consumption of inductive proximity switch decreases proportional to the metal object distance.


    Application illustration of proximity switch


    1. Various location detection of machinery process center

    2. Bottle lid detection

    3. Stopper detection of grinding machine

    4. Arm location detection of robot

    5. Inspection of the exiating of milk inside the paper package

    6. Spacing detection

    7. Mounting screw switch

    8. Protection against the interference of non detected object


    Dimension

    Product Picture


    LM18-T Cylinder Inductive Proximity Sensor Detection Distance Anti-interference

    LM18-T Cylinder Inductive Proximity Sensor Detection Distance Anti-interference


    FAQ

    Q 1. what's the payment term?

    A. We accept TT,30% deposit and 70% balance agaisnt copy of BL

    Q 2. how's the delivery time ?

    A. usually it will take about 15 days for production

    Q 3. tell me the standard of package?

    A. Export standard carton box


    Q 4. Could you offer Form A or C/O ?

    A. It totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for this certificate.

    Q 5. Would you accept to use our logo ?

    A.If you have good quantity,it absolute no problem to do OEM.

    Q 6. We want to know month capacity.

    A. It depends on which model.For example for M12 type normal type, month capacity can reach near 20000pcs.

    Q 7.Where is your market?

    A. Our products are popular in Russia, Indonisia, Philippines,Italy, America, Brazil and so on.Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.
