    Metal Photoelectric Switch , Infrared Photoelectric Sensor Under 3000Lx Incandescent Lamp

    Ask Lasest Price
    Brand Name : Winston/OEM
    Model Number : G100
    Certification : CE,ROSH
    Price : Negotiable
    Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD
    Supply Ability : 10000PCS/Month
    Delivery Time : 3-15days after get payment.
    • Product Details
    • Company Profile

    Metal Photoelectric Switch , Infrared Photoelectric Sensor Under 3000Lx Incandescent Lamp

    Metal Photoelectric Switch , Infrared Photoelectric Sensor Under 3000Lx Incandescent Lamp

    Specifications

    * G100 Photoelectric sensor switch
    * OEM,ODM
    * Detection distance:1m,5m,10m
    * NPN,PNP
    * NO,NC,NO+NC


    Application illustration or photoelectric switch


    1 . Detection distance and facial color of the detected object

    2 . Check out the broken strip from carding machine

    3 . Built-in-power type photoelectric switch

    4 . Product accounting

    5 . Detection distance and dimensions of detected objects


    Photoelectric switch Principle of photoeletric switch


    The working principle of the photoelectric switch is that when the beam emitted by the emitter is blocked or partly reflected by the object, the beam by the emitter is blocked or partly reflected by the object, the beam receiver whereby makes a judgment and reacts.


    Model composeition and definition of infrared ray photoelectric switch


    G 18 3 A 10 N A □
    —— —— —— —— —— —— —— ——
    1 2 3 4 5 6 7 8

    Technical Parameters:


    Diffuse typeDetection distance1m
    10-30VDCNPNNOG100-3A1NA
    NCG100-3A1NB
    NO+NCG100-3A1NC
    PNPNOG100-3A1PA
    90-250VACNCG100-3A1PB
    NO+NCG100-3A1PC
    SCR Contro Hable siliconNOG100-2A1LA
    NCG100-2A1LB
    Relay outputG100-2A1JC
    Retroreflective typeDetection distance5m
    10-30VDCNPNNOG100-3B5NA
    NCG100-3B5NB
    NO+NCG100-3B5NC
    PNPNOG100-3B5PA
    90-250VACNCG100-3B5PB
    NO+NCG100-3B5PC
    SCR Contro Hable siliconNOG100-2B5LA
    NCG100-2B5LB
    Relay outputG100-2B5JC
    Through beamDetection distance10m
    10-30VDCNPNNOG100-3C101NA
    NCG100-3C101NB
    NO+NCG100-3C101NC
    PNPNOG100-3C101PA
    90-250VACNCG100-3C101PB
    NO+NCG100-3C101PC
    SCR Contro Hable siliconNOG100-2C101LA
    NCG100-2C101LB
    Relay outputG100-2C101JC
    DC/SCR Control outputDC:200mA,AC:300mA,Relay:2A
    DC/AC Consumption currentDC<15mA,AC<10mA
    DC/AC Response timeDc<2ms,AC<20ms
    Directional angle3 . -10 .
    Detected objecttransparent or opaque body
    Working environment temperature25~+55ºC
    Intensity of illumination of working environmentSunlight under 1000LX incandescent lamp under 3000LX
    Shell materialMetal
    Protection gradeIP54

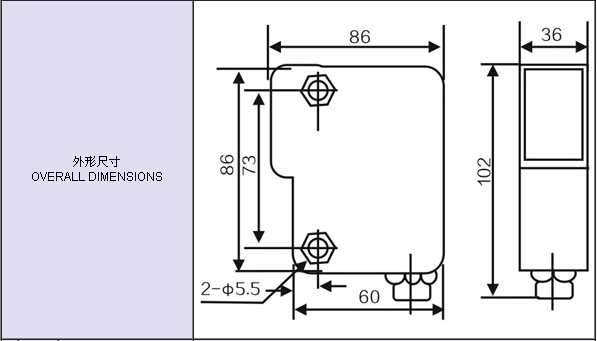

    Dimension



    Product Picture


    Our Services
    • Customized Samples are acceptable
    • Accept different payment methods, such as T/T, L/C, Western Union, Escrow to meet your different financial requirements
    • Welcome and accept 100% customers factory inspection before the production
    • Supply skills training including product basic knowledge, installation, operation, maintenance skills training for the local people
    • We provide 7 days 24 hours service!
