    Plastic Sensitivity Raintight Photoelectric Switch Correlation Type Emitter Receiver

    Ask Lasest Price
    Brand Name : Winston/OEM
    Model Number : G78
    Certification : CE,ROSH
    Price : Negotiable
    Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD
    Supply Ability : 10000PCS/Month
    Delivery Time : 3-15days after get payment.
    • Product Details
    • Company Profile

    Plastic Sensitivity Raintight Photoelectric Switch Correlation Type Emitter Receiver

    Plastic Sensitivity Raintight Photoelectric Switch Correlation Type Emitter Receiver


    Main features:


    1 . Diversified exterior structures
    2 . Good performance of anti-interference
    3 . Dust proof,vibration proof,water proof and oil proof.
    4 . With short-circuit protection and inverted connecting protection.
    5 . Long service life


    Application illustration or photoelectric switch


    1 . Detection distance and facial color of the detected object

    2 . Check out the broken strip from carding machine

    3 . Built-in-power type photoelectric switch

    4 . Product accounting


    Photoelectric switch Principle of photoeletric switch


    The working principle of the photoelectric switch is that when the beam emitted by the emitter is blocked or partly reflected by the object, the beam by the emitter is blocked or partly reflected by the object, the beam receiver whereby makes a judgment and reacts.


    Model composeition and definition of infrared ray photoelectric switch


    G 18 3 A 10 N A □
    —— —— —— —— —— —— —— ——
    1 2 3 4 5 6 7 8

    Technical Parameters:


    Diffuse typeDetection distance40cm
    10-30VDCNPNNOG78-3A40NA
    NCG78-3A40NB
    NO+NCG78-3A40NC
    PNPNOG78-3A40PA
    90-250VACNCG78-3A40PB
    NO+NCG78-3A40PC
    SCR Contro Hable siliconNOG78-2A40LA
    NCG78-2A40LB
    Relay output
    Retroreflective typeDetection distance2m
    10-30VDCNPNNOG78-3B2NA
    NCG78-3B2NB
    NO+NCG78-3B2NC
    PNPNOG78-3B2PA
    90-250VACNCG78-3B2PB
    NO+NCG78-3B2PC
    SCR Contro Hable siliconNOG78-2B2LA
    NCG78-2B2LB
    Relay output
    Through beamDetection distance5m
    10-30VDCNPNNOG78-3C5NA
    NCG78-3C5NB
    NO+NCG78-3C5NC
    PNPNOG78-3C5PA
    90-250VACNCG78-3C5PB
    NO+NCG78-3C5PC
    SCR Contro Hable siliconNOG78-2C5LA
    NCG78-2C5LB
    Relay output
    DC/SCR Control outputDC:200mA
    DC/AC Consumption currentDC<15mA,AC<10mA
    DC/AC Response timeAC/Dc<2ms
    Directional angle3 . -10 .
    Detected objecttransparent or opaque body
    Working environment temperature25~+55ºC
    Intensity of illumination of working environmentSunlight under 1000LX incandescent lamp under 3000LX
    Shell materialPlastic
    Protection gradeIP54

    Dimension

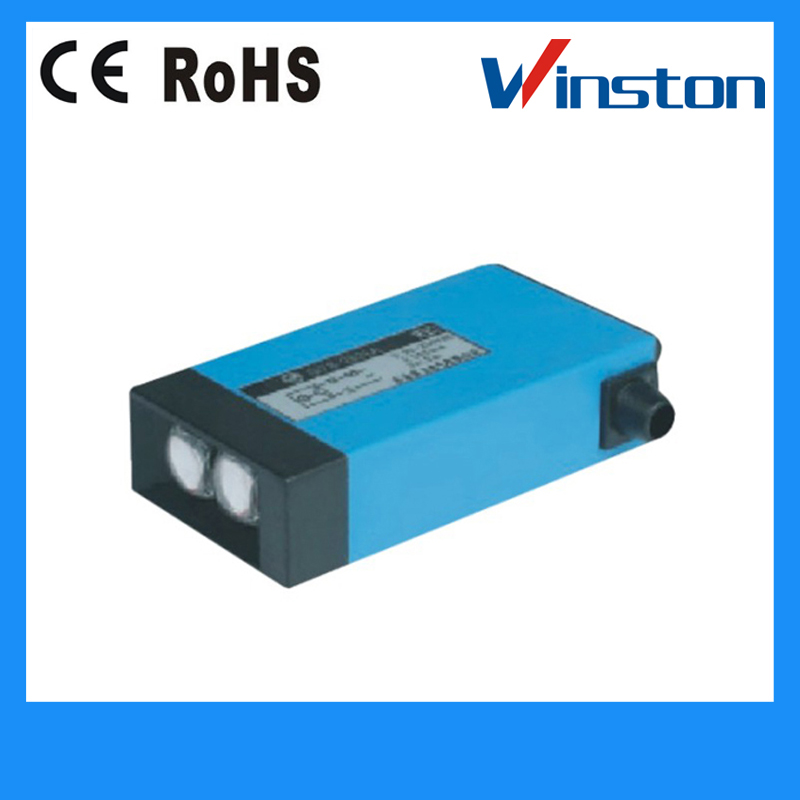

    Product Picture


    Our Services
    • Customized Samples are acceptable
    • Accept different payment methods, such as T/T, L/C, Western Union, Escrow to meet your different financial requirements
    • Welcome and accept 100% customers factory inspection before the production
    • Supply skills training including product basic knowledge, installation, operation, maintenance skills training for the local people
    • We provide 7 days 24 hours service!
