    Custom Through Beam Photoelectric Sensor Under 1000LX Sunlight G77

    Ask Lasest Price
    Brand Name : Winston/OEM
    Model Number : G77
    Certification : CE,ROSH
    Price : Negotiable
    Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD
    Supply Ability : 10000PCS/Month
    Delivery Time : 3-15days after get payment.
    • Product Details
    • Company Profile

    Custom Through Beam Photoelectric Sensor Under 1000LX Sunlight G77

    Custom Through Beam Photoelectric Sensor Under 1000LX Sunlight G77

    Specifications

    infrared ray photoelectric switch G77


    1. CE Approval
    2. Detection disance: 30cm,3m,5m
    3. Voltage: 10-30VDC, 90-250VAC


    Have 3 types :

    1. Diffuse type

    2. Retroreflictive type

    3. Trough beam


    Application illustration or photoelectric switch


    1 . Product accounting

    2 . Built-in-power type photoelectric switch

    3 . Guard again restricted zone being invaded

    4 . Check out the broken or faulted tobacco rolling paper


    Photoelectric switch Principle of photoeletric switch


    The working principle of the photoelectric switch is that when the beam emitted by the emitter is blocked or partly reflected by the object, the beam by the emitter is blocked or partly reflected by the object, the beam receiver whereby makes a judgment and reacts.


    Model composeition and definition of infrared ray photoelectric switch


    G 18 3 A 10 N A □
    —— —— —— —— —— —— —— ——
    1 2 3 4 5 6 7 8

    Technical Parameters:


    Diffuse typeDetection distance30cm
    10-30VDCNPNNOG77-3A30NA
    NCG77-3A30NB
    NO+NCG77-3A30NC
    PNPNOG77-3A30PA
    90-250VACNCG77-3A30PB
    NO+NCG77-3A30PC
    SCR Contro Hable siliconNOG77-2A30LA
    NCG77-2A30LB
    Relay output
    Retroreflective typeDetection distance3m
    10-30VDCNPNNOG77-3B3NA
    NCG77-3B3NB
    NO+NCG77-3B3NC
    PNPNOG77-3B3PA
    90-250VACNCG77-3B3PB
    NO+NCG77-3B3PC
    SCR Contro Hable siliconNOG77-2B3LA
    NCG77-2B3LB
    Relay output
    Through beamDetection distance5m
    10-30VDCNPNNOG77-3C5NA
    NCG77-3C5NB
    NO+NCG77-3C5NC
    PNPNOG77-3C5PA
    90-250VACNCG77-3C5PB
    NO+NCG77-3C5PC
    SCR Contro Hable siliconNOG77-2C5LA
    NCG77-2C5LB
    Relay output
    DC/SCR Control outputDC: 200mA
    DC/AC Consumption currentDC<15mA,AC<10mA
    DC/AC Response timeAC/Dc<2ms
    Directional angle3 . -10 .
    Detected objecttransparent or opaque body
    Working environment temperature25~+55ºC
    Intensity of illumination of working environmentSunlight under 1000LX incandescent lamp under 3000LX
    Shell materialPlastic
    Protection gradeIP54

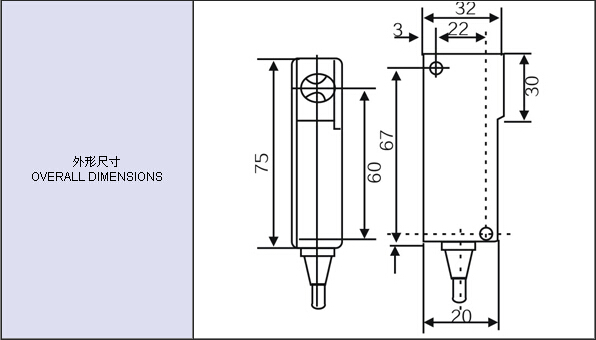

    Dimension

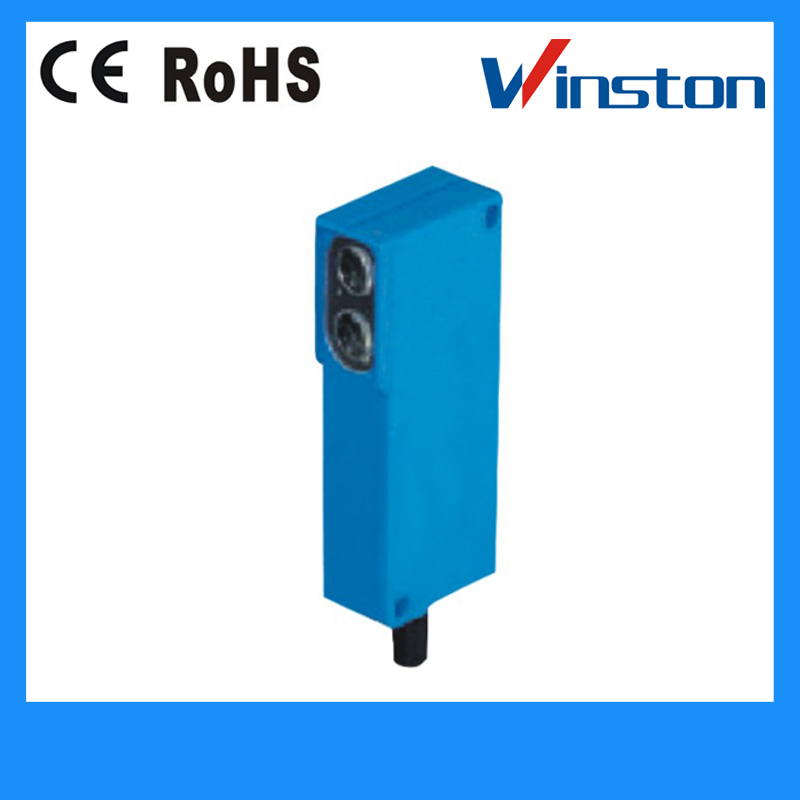

    Product Picture


    Our Services
    • Customized Samples are acceptable
    • Accept different payment methods, such as T/T, L/C, Western Union, Escrow to meet your different financial requirements
    • Welcome and accept 100% customers factory inspection before the production
    • Supply skills training including product basic knowledge, installation, operation, maintenance skills training for the local people
    • We provide 7 days 24 hours service!
