    High Precision Photoelectric Proximity Switch Adjustable Metal Shell

    Ask Lasest Price
    Brand Name : Winston/OEM
    Model Number : G75
    Certification : CE,ROSH
    Price : Negotiable
    Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD
    Supply Ability : 10000PCS/Month
    Delivery Time : 3-15days after get payment.
    • Product Details
    • Company Profile

    High Precision Photoelectric Proximity Switch Adjustable Metal Shell

    High Precision Photoelectric Proximity Switch Adjustable Metal Shell

    Specifications

    1 . Multiplicity appearance
    2 . Compact volume
    3 . High repeat orientation precision
    4 . Many output form
    5 . Strong protection


    Photoelectric switch Principle of photoeletric switch


    The working principle of the photoelectric switch is that when the beam emitted by the emitter is blocked or partly reflected by the object, the beam by the emitter is blocked or partly reflected by the object, the beam receiver whereby makes a judgment and reacts.


    Model composeition and definition of infrared ray photoelectric switch


    G 18 3 A 10 N A □
    —— —— —— —— —— —— —— ——
    1 2 3 4 5 6 7 8

    Technical Parameters:


    Diffuse typeDetection distance80cm
    10-30VDCNPNNOG75-3A80NA
    NCG75-3A80NB
    NO+NCG75-3A80NC
    PNPNOG75-3A80PA
    90-250VACNCG75-3A80PB
    NO+NCG75-3A80PC
    SCR Contro Hable siliconNOG75-2A80LA
    NCG75-2A80LB
    Relay outputG75-2A80JC
    Retroreflective typeDetection distance3m
    10-30VDCNPNNOG75-3B3NA
    NCG75-3B3NB
    NO+NCG75-3B3NC
    PNPNOG75-3B3PA
    90-250VACNCG75-3B3PB
    NO+NCG75-3B3PC
    SCR Contro Hable siliconNOG75-2B3LA
    NCG75-2B3LB
    Relay outputG75-2B3JC
    Through beamDetection distance5m
    10-30VDCNPNNOG75-3C5NA
    NCG75-3C5NB
    NO+NCG75-3C5NC
    PNPNOG75-3C5PA
    90-250VACNCG75-3C5PB
    NO+NCG75-3C5PC
    SCR Contro Hable siliconNOG75-2C5LA
    NCG75-2C5LB
    Relay outputG75-2C5JC
    DC/SCR Control outputDC:200mA
    DC/AC Consumption currentDC<15mA,AC<10mA
    DC/AC Response timeAC/Dc<2ms
    Directional angle3 . -10 .
    Detected objecttransparent or opaque body
    Working environment temperature25~+55ºC
    Intensity of illumination of working environmentSunlight under 1000LX incandescent lamp under 3000LX
    Shell materialMetal
    Protection gradeIP54

    Dimension

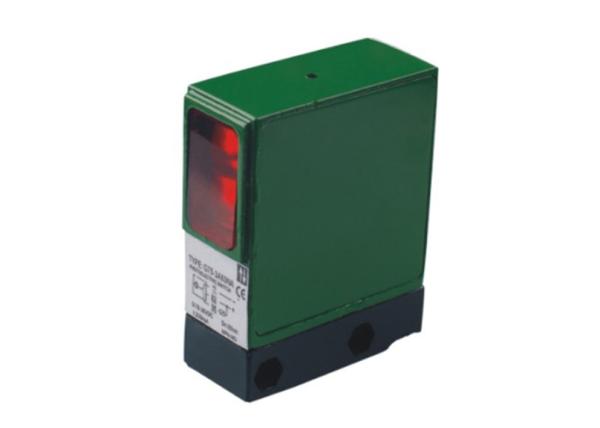

    Product Picture


    Our Services
    • Customized Samples are acceptable
    • Accept different payment methods, such as T/T, L/C, Western Union, Escrow to meet your different financial requirements
    • Welcome and accept 100% customers factory inspection before the production
    • Supply skills training including product basic knowledge, installation, operation, maintenance skills training for the local people
    • We provide 7 days 24 hours service!
