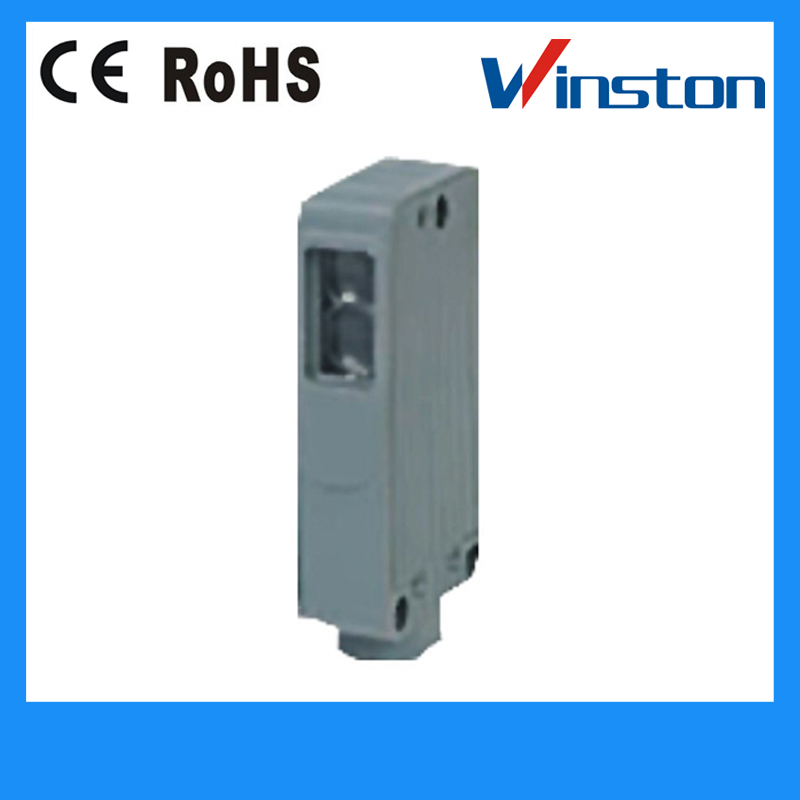

    G33 Adjustable Low Voltage Photocell Switch Diffuse Built In-Power Type

    Ask Lasest Price
    Brand Name : Winston/OEM
    Model Number : G33
    Certification : CE,ROSH
    Price : Negotiable
    Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD
    Supply Ability : 10000PCS/Month
    Delivery Time : 3-15days after get payment.
    • Product Details
    • Company Profile

    G33 Adjustable Low Voltage Photocell Switch Diffuse Built In-Power Type

    G33 Adjustable Low Voltage Photocell Switch Diffuse Built In-Power Type

    Specifications

    infrared ray photoelectric switch G33
    1. CE Approval
    2. Detection disance: 10cm,1m, 3m
    3. Voltage: 10-30VDC, 90-250VAC


    Have 3 types :

    1. Diffuse type

    2. Retroreflictive type

    3. Trough beam


    Application illustration or photoelectric switch


    1 . Guard again restricted zone being invaded

    2 . Built-in-power type photoelectric switch

    3 . Product accounting

    4 . Check out the broken or faulted tobacco rolling paper


    Photoelectric switch Principle of photoeletric switch


    The working principle of the photoelectric switch is that when the beam emitted by the emitter is blocked or partly reflected by the object, the beam by the emitter is blocked or partly reflected by the object, the beam receiver whereby makes a judgment and reacts.


    Model composeition and definition of infrared ray photoelectric switch


    G 18 3 A 10 N A □
    —— —— —— —— —— —— —— ——
    1 2 3 4 5 6 7 8

    Technical Parameters:


    Model NO.Detection distanceWorking voltageOutputDetection way
    FormState
    G33 -3A 10NA10cmDC10-30VNPNNODiffuse type
    G33 -3A 10NB10cmDC10-30VNPNNCDiffuse type
    G33 -3A 10NC10cmDC10-30VNPNNO+NCDiffuse type
    G33 -3A 10PA10cmDC10-30VPNPNODiffuse type
    G33 -3A 10PB10cmDC10-30VPNPNCDiffuse type
    G33 -3A 10PC10cmDC10-30VPNPNO+NCDiffuse type
    G33-3B1NA1mDC10-30VNPNNORetroreflective
    G33-3B1NB1mDC10-30VNPNNCRetroreflective
    G33-3B1NC1mDC10-30VNPNNO+NCRetroreflective
    G33-3B1PA1mDC10-30VPNPNORetroreflective
    G33-3B1PC1mDC10-30VPNPNO+NCRetroreflective
    G33 -3C 3NA3mDC10-30VNPNNOThrough beam
    G33 -3C 3NB3mDC10-30VNPNNCThrough beam
    G33 -3C 3NC3mDC10-30VNPNNO+NCThrough beam
    G33 -3C 3PA3mDC10-30VPNPNOThrough beam
    G33 -3C 3PB3mDC10-30VPNPNCThrough beam
    G33 -3C 3PC3mDC10-30VPNPNO+NCThrough beam

    Dimension



    Product Picture



    FAQ

    Q1: what is the warranty for your product?

    A1: We guaranteed for 2 years, any quality problem happened in this period

    of time for our reason, we will send the replacement parts in next order.

    We will compensate your loss if our quality problem caused your loss.

    Q2: How soon can I get samples for test to check quality?

    A2: We can provide 1-3pcs free samples. The lead time for our regular products

    is 2-3 days. For customized products need 5-7 days. We will also customized

    nice product to meet your requirement.


    Q3: Can you accept OEM&ODM service business?

    A3: Yes, we can.Our Month Supply Ability is 100000PCS.Our R&D team can

    customize the special product as your needs. You can visit our website to learn

    more about our excellent R & D team, and you will believe you can get

    satisfied product.


    Q4: Do you accept small quantity orders?

    A4: Yes, we accept. But no doubt that the more the amount of your order, you

    will get more discounts. If you have a regular monthly order volume, we also would

    like to give you the appropriate discount.
