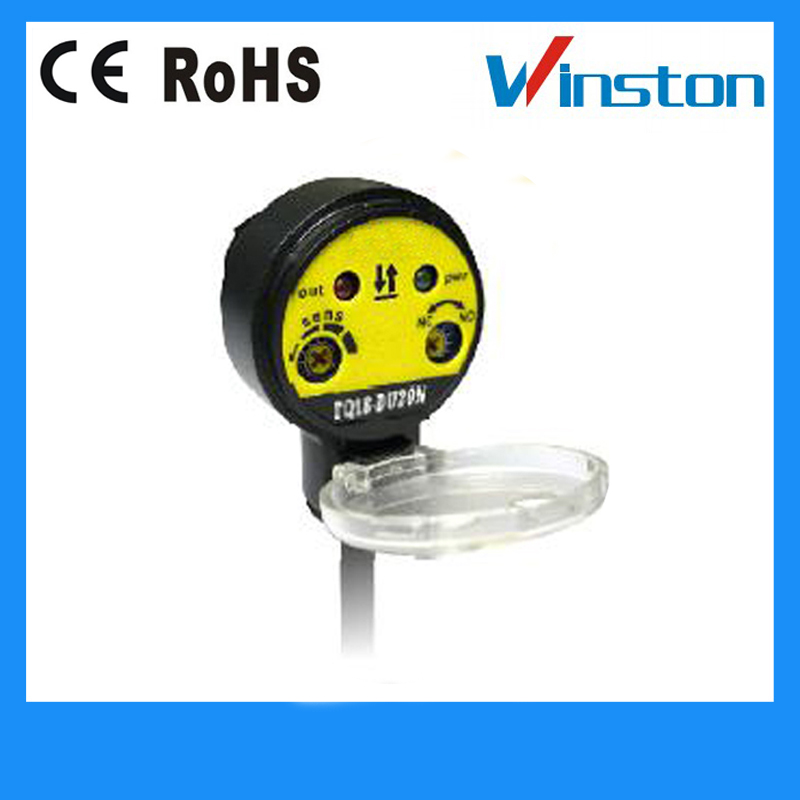

    Elevator Photoelectric Light Switch Sensitivity , Waterproof Proximity Sensor TQ18

    Ask Lasest Price
    Brand Name : Winston/OEM
    Model Number : TQ18
    Certification : CE,ROSH
    Price : Negotiable
    Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD
    Supply Ability : 10000PCS/Month
    Delivery Time : 3-15days after get payment.
    • Product Details
    • Company Profile

    Elevator Photoelectric Light Switch Sensitivity , Waterproof Proximity Sensor TQ18

    Elevator Photoelectric Light Switch Sensitivity , Waterproof Proximity Sensor TQ18

    Characteristic

    1 . Elbow housing design, space saving

    2 . N.O./N.C.function can be adjusted by N.O./N.C.Switch

    (N.C.(D.on): Turn the switch to the end of left side.

    (N.O.(L.on): Turn the switch to the end of right side.

    3 . Easy to install.(30*49.5*32.7mm)

    4 . Prevent form water and oil, dust cover attached


    Photoelectric switch Principle of photoeletric switch


    The working principle of the photoelectric switch is that when the beam emitted by the emitter is blocked or partly reflected by the object, the beam by the emitter is blocked or partly reflected by the object, the beam receiver whereby makes a judgment and reacts.


    Model composeition and definition of infrared ray photoelectric switch


    G 18 3 A 10 N A □
    —— —— —— —— —— —— —— ——
    1 2 3 4 5 6 7 8

    Technical Parameters:

    Model

    NPN L.on/D.on

    TQ18-DU10/40N

    TQ18-DU10/40NK1

    PNP L.on/D.on

    TQ18-DU10/40P

    TQ18-DU10/40PK1

    Sensing type

    Diffuse reflection

    Sensing distance

    10cm/40cm, white paper 100*100(10/40cm)

    Emitting light/

    lnfrared LED 850nm

    Operating voltage

    DC12~24V

    Current Consumption

    34mA Max

    Load current

    100mA Max.at DC24V

    Response time

    1.5ms Max.

    lnsulation resistance

    20MΩmin.(DC500V)

    Voltage withstandabiligy

    AClOOOV 60Hz for 60 Sec

    Operating temperature

    -25°C~+60°C

    Ambient humidity

    35%~85%RH

    Protection degree

    IP66

    Material

    ABS

    Wiring method

    Pre-wiredΦ4.2*2M/3-wires

    M12 plug-in connector type/M12

    Weight

    Approx.65g

    Approx.18g

    Dimension



    Product Picture



    FAQ

    Q1: what is the warranty for your product?

    A1: We guaranteed for 2 years, any quality problem happened in this period

    of time for our reason, we will send the replacement parts in next order.

    We will compensate your loss if our quality problem caused your loss.

    Q2: How soon can I get samples for test to check quality?

    A2: We can provide 1-3pcs free samples. The lead time for our regular products

    is 2-3 days. For customized products need 5-7 days. We will also customized

    nice product to meet your requirement.


    Q3: Can you accept OEM&ODM service business?

    A3: Yes, we can.Our Month Supply Ability is 100000PCS.Our R&D team can

    customize the special product as your needs. You can visit our website to learn

    more about our excellent R & D team, and you will believe you can get

    satisfied product.


    Q4: Do you accept small quantity orders?

    A4: Yes, we accept. But no doubt that the more the amount of your order, you

    will get more discounts. If you have a regular monthly order volume, we also would

    like to give you the appropriate discount.
