AC 75A / 90A SSR Solid State Relays Current Regulator Bidirectional Thyristor Output

    Buy cheap AC 75A / 90A SSR Solid State Relays Current Regulator Bidirectional Thyristor Output from wholesalers

    Buy cheap AC 75A / 90A SSR Solid State Relays Current Regulator Bidirectional Thyristor Output from wholesalers
    • Buy cheap AC 75A / 90A SSR Solid State Relays Current Regulator Bidirectional Thyristor Output from wholesalers
    • Buy cheap AC 75A / 90A SSR Solid State Relays Current Regulator Bidirectional Thyristor Output from wholesalers
    • Buy cheap AC 75A / 90A SSR Solid State Relays Current Regulator Bidirectional Thyristor Output from wholesalers
    • Buy cheap AC 75A / 90A SSR Solid State Relays Current Regulator Bidirectional Thyristor Output from wholesalers

    AC 75A / 90A SSR Solid State Relays Current Regulator Bidirectional Thyristor Output

    Ask Lasest Price
    Brand Name : Winston/OEM
    Model Number : SSR-AA-H
    Certification : CE,ROSH
    Price : USD3 to USD10
    Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD
    Supply Ability : 10000PCS/Month
    Delivery Time : 3-15days after get payment.
    • Product Details
    • Company Profile

    AC 75A / 90A SSR Solid State Relays Current Regulator Bidirectional Thyristor Output

    AC 75A / 90A SSR Solid State Relays Current Regulator Bidirectional Thyristor Output

    Specification:

    1. Bidirectional thyristor output, zero voltage, zero current turn off;
    2. Optical isolation between the input circuit and output circuit;
    3. Isolation between the input - output voltage 2500 v.
    4. 100% load current aging test, through the European CE certification

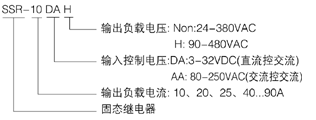

    Model explain:
    Main technical:

    Load voltage

    90-480VAC

    Load current

    10A 25A 40A,60A,75A,90A

    Control voltage

    80-250VAC

    Control current

    AC≤12mA

    On voltage

    ≤1.5V

    Off leakage current

    ≤2mA

    On-off time

    ≤10mS

    Dielectric strength

    2500VAC

    Insulation resistance

    1000MΩ/500VDC

    Ambient temperature

    -30℃~+75℃

    Mounting methods

    Nut

    The work instructions

    LED

    Weight

    132g

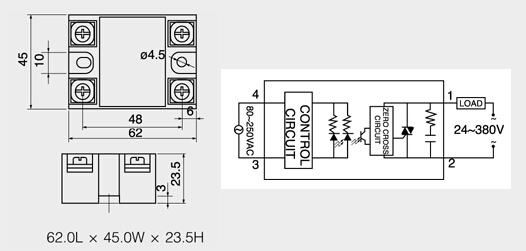

    Wiring drawing(mm)

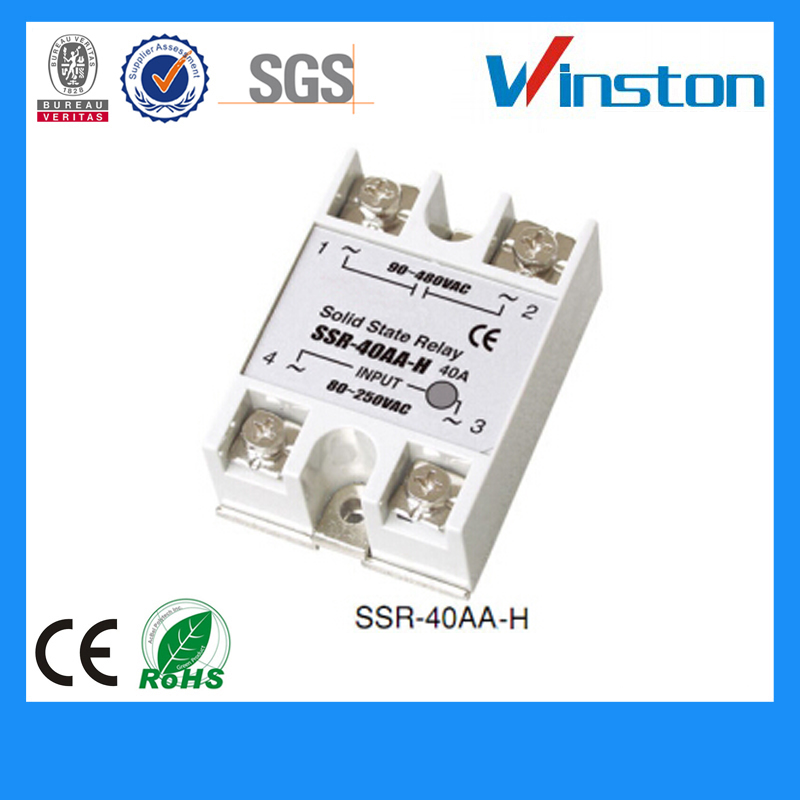

    Product picture
