    FY-150 Rainproof Switching Power Supply Single Output LED 2.5KG 100% Full Load

    Ask Lasest Price
    Brand Name : Winston/OEM
    Model Number : FY-150
    Certification : CE,ROSH
    Price : Negotiable
    Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD
    Supply Ability : 10000PCS/Month
    Delivery Time : 3-15days after get payment.
    • Product Details
    • Company Profile

    FY-150 Rainproof Switching Power Supply Single Output LED 2.5KG 100% Full Load

    FY-150 Rainproof Switching Power Supply Single Output LED 2.5KG 100% Full Load


    Features:


    1. Low-cost, high reliability

    2. Coolong by free air convection

    3. Small size, light weight

    4. 100% full load burn-in test

    5. Good quality and reliability

    6. Good Withstand voltage Insulation

    Specification:


    (Model)

    (Specification )

    FY-150-12

    FY-150-15

    FY-150-24

    FY-150-48

    output

    12V 0-12.5A

    15V 0-10A

    24V 0-6.5A

    48V 0-3.2A

    Error

    ±1%

    ±1%

    ±1%

    ±1%

    Range

    120mV

    120mV

    120mV

    200mV

    Efficiency

    80%

    80%

    84%

    84%

    AC input voltage range

    170~264VAC 47~63Hz,240~370VDC

    Input current

    1.6A/230V

    AC Inrush current

    Cold-start current 40A/230V

    Leakage current

    <1mA/240VAC

    Overload protection

    105%-135% hiccup mode, auto-recovery

    Over-voltage protection

    115%-135% cut off the output, auto-recovery

    Over load protection


    Water level

    IP44

    Setup, rise, hold up time

    200ms,100ms,20ms

    Withstand voltage

    I/P-O/P: 1.5KvAC 1 minute

    I/P-FG: 1.5KvAC 1 minute

    O/P-FG: 0.5KvAC 1 minute

    Working temperature and humidity

    -10°C~60°C, 20~90%RH

    Overall dimension

    206X125X50mm

    Weight/packing

    0.87kgS,20pcs/18.5kg

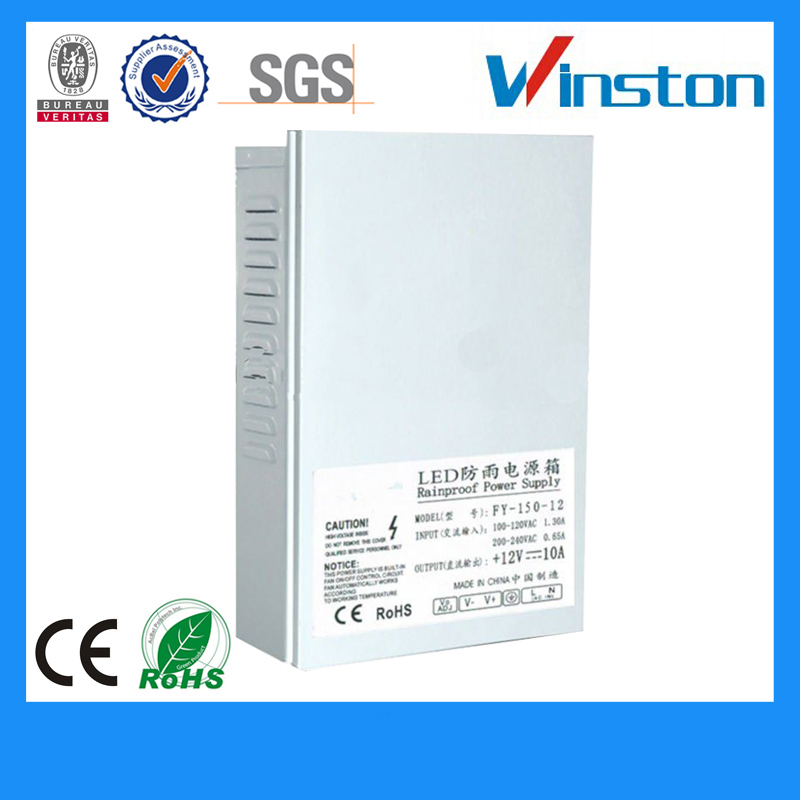

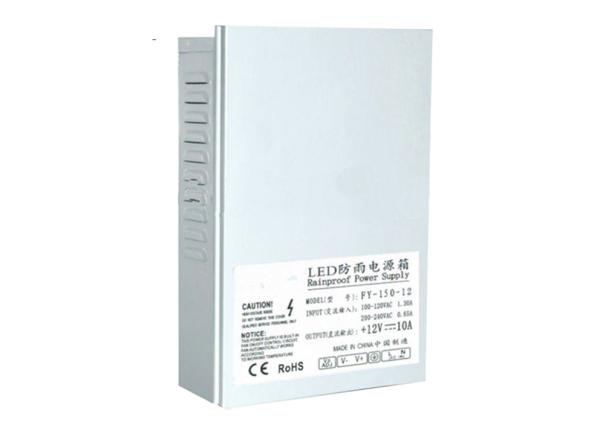

    Product Picture



    Our Services
    • Customized Samples are acceptable
    • Accept different payment methods, such as T/T, L/C, Western Union, Escrow to meet your different financial requirements
    • Welcome and accept 100% customers factory inspection before the production
    • Supply skills training including product basic knowledge, installation, operation, maintenance skills training for the local people
    • We provide 7 days 24 hours service!

    PS: If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.
