    Winston G63 Photoelectric Beam Sensor Anti Interference AC 90V - 250V IP54

    Ask Lasest Price
    Brand Name : Winston/OEM
    Model Number : G63
    Certification : CE,ROSH
    Price : Negotiable
    Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD
    Supply Ability : 10000PCS/Month
    Delivery Time : 3-15days after get payment.
    • Product Details
    • Company Profile

    Winston G63 Photoelectric Beam Sensor Anti Interference AC 90V - 250V IP54

    Winston G54 Photoelectric Beam Sensor Anti Interference AC 90V - 250V IP54

    Mains features:

    1 . Compact volume
    2 . Diversified exterior structures
    3 . Good performance of anti-interference
    4 . With short-circuit protection and inverted connecting protection.
    5 . Long service life


    Application illustration or photoelectric switch


    1 . Built-in-power tyype photoelectric switch

    2 . Detecting if beer is affixed with mark or not

    3 . Check out the borken strip from carding machine

    4 . Detection distanc and facial color of the detected object


    Photoelectric switch Principle of photoeletric switch


    The working principle of the photoelectric switch is that when the beam emitted by the emitter is blocked or partly reflected by the object, the beam by the emitter is blocked or partly reflected by the object, the beam receiver whereby makes a judgment and reacts.


    Model composeition and definition of infrared ray photoelectric switch


    G 18 3 A 10 N A □
    —— —— —— —— —— —— —— ——
    1 2 3 4 5 6 7 8

    Technical Parameters:


    Diffuse typeDetection distance
    10-30VDCNPNNO
    NC
    NO+NC
    PNPNO
    90-250VACNC
    NO+NC
    SCR Contro Hable siliconNO
    NC
    Relay output
    Retroreflective typeDetection distance
    10-30VDCNPNNO
    NC
    NO+NC
    PNPNO
    90-250VACNC
    NO+NC
    SCR Contro Hable siliconNO
    NC
    Relay output
    Through beamDetection distance3cm
    10-30VDCNPNNOG63-3E03NA
    NCG63-3E03NB
    NO+NCG63-3E03NC
    PNPNOG63-3E03PA
    90-250VACNCG63-3E03PB
    NO+NCG63-3E03PC
    SCR Contro Hable siliconNO
    NC
    Relay output
    DC/SCR Control outputDC:200mA,AC:300mA,Relay:2A
    DC/AC Consumption currentDC<15mA,AC<10mA
    DC/AC Response timeDc<2ms,AC<20ms
    Directional angle3 . -10 .
    Detected objecttransparent or opaque body
    Working environment temperature25~+55ºC
    Intensity of illumination of working environmentSunlight under 1000LX incandescent lamp under 3000LX
    Shell materialMetal/Plastic
    Protection gradeIP54

    Dimension

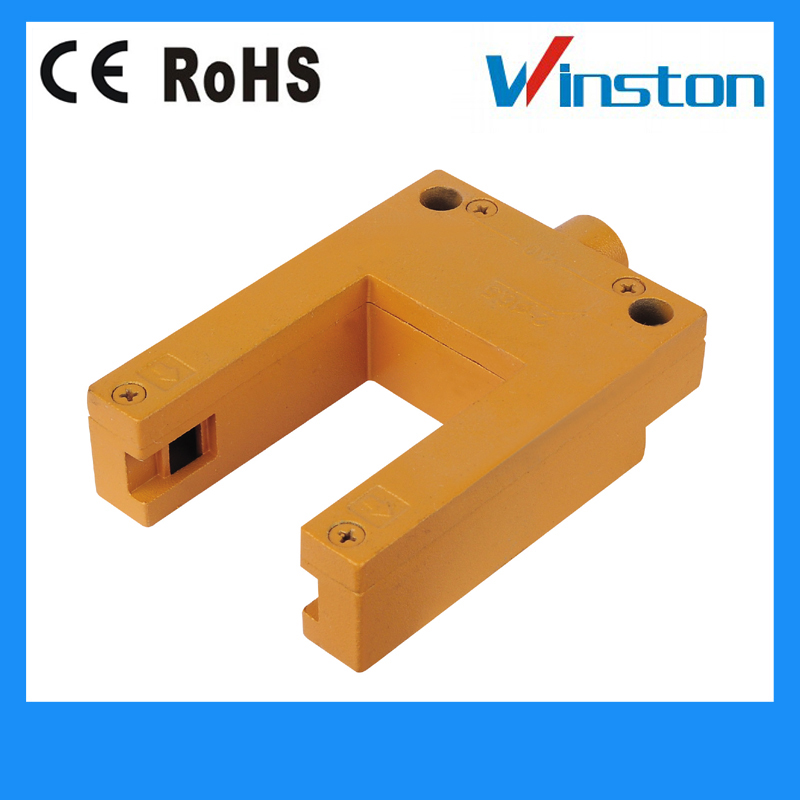

    Product Picture



    FAQ

    Q1: what is the warranty for your product?

    A1: We guaranteed for 2 years, any quality problem happened in this period

    of time for our reason, we will send the replacement parts in next order.

    We will compensate your loss if our quality problem caused your loss.

    Q2: How soon can I get samples for test to check quality?

    A2: We can provide 1-3pcs free samples. The lead time for our regular products

    is 2-3 days. For customized products need 5-7 days. We will also customized

    nice product to meet your requirement.


    Q3: Can you accept OEM&ODM service business?

    A3: Yes, we can.Our Month Supply Ability is 100000PCS.Our R&D team can

    customize the special product as your needs. You can visit our website to learn

    more about our excellent R & D team, and you will believe you can get

    satisfied product.


    Q4: Do you accept small quantity orders?

    A4: Yes, we accept. But no doubt that the more the amount of your order, you

    will get more discounts. If you have a regular monthly order volume, we also would

    like to give you the appropriate discount.
