Winston Civil Constructions / Industrial Room Thermostat 220V
WST-1000
Summary:
WST-1000 series of thermostats are usually used on the
commercial,industrial and civil constructions.which can control the
fan coil of air-conditioning ,water valve and wind valveect.It can
make the temperature balance in the setting range in the
location,and all switches are manual switch.Very simple to
manipulate.
Characteristics:
1. Dialing button for setting the temperature:The place the finger
points to is the current temperature value.
2. ON/OFF Switch for System:Press ON/OFF Key to turn on/off of the
thermostat
3. Working Mode Switch:Press HEATCOOL key to switch the heating
/Cooling mode.
4. Fan Speed Key: L-M-H.that is,Low speed-Middle speed-High
speed.Wind valve controller does not have this FL Jnction
Functions Specification:
Model Name
| Function Explanation
| Objects controlled
|
WST-1000A
| 2 tubes tan coil controller,can be set up to control the fan coil
| 3 gears of fan coil,2 and 3 wire of motorized valve,magnetic valve
on/off wind valve,3 wires of wind valve.
|
WST-1000B
| 4 tubes tan coil controller,can be set up to control the fan coil
| 3 gears of fan coil,2 and 3 wire of motorizes valve.magnetic valve
on/off wind valve,3 wires of wind valve.
|
Technique Parameters:
1. Emperature Controlling Range:10-30°C
2. Working Voltage:230VAC±10% , 50Hz/60Hz
3. Current Load:<3A(Resistant Load)
4. Sensing element:Box with the gas.
5. Temperature differential:≤1°C(at the 25°C)
6. Storing Environment:temperature:-20°C-55°C.relative
humidity:RH<92°C
7. Surface material:ABS engineering plastic,manual Switch is
Off-white,the rest is ivory-white
8. External dimension:85*130*40mm(W*H*D)
9. Installation:Standard 86 installing box
PS:If you can't find the exact type of your product.Please don't
rush to go away.Contact me and your questions will be replied
ASAP.Thank you for your time.
Our Services
1. Prompt reply: Any inquiry or questions would be replied within
24 hours. |
2. Quality Product: Manufacture company, each of the products is
tested and calibrated. |
3. Hospitality: Offer smiling service and your visiting is highly
welcomed |
4. Fast delivery: delivery time is within 3-7 days usually, other
occasion depends on the order qty. |
Trade Information
Trade Terms | FOB ,CIF ,CFR,EXW,DDP |
Payment terms | T/T,L/C,Western union,Paypal,Escrow,MoneyGram |
Payment conditions | 30% deposit in advance,70% balance before shipping. |
Delivery time | 3-7working days after deposit,2-4 working days for inventory |
Packing | Neutral carton,Wooden case for large size |
Shipping | By sea,by air and by express delivery |
Payment conditions | 30% deposit in advance,70% balance before shipping. |
Delivery time | 3-7working days after deposit,2-4 working days for inventory |
Packing | Neutral carton,Wooden case for large size |
Shipping | By sea,by air and by express delivery |

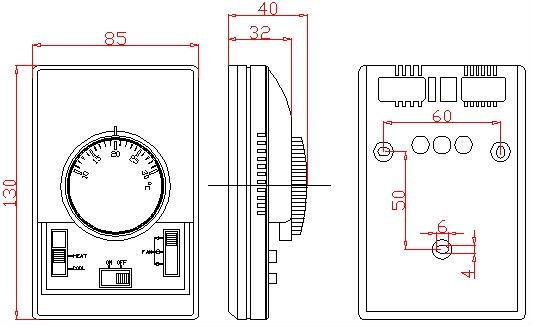

Dimension
Product picture
