LED Display Hygrostat Room Thermostat Adjustable Temperature / Humidity IP20

    Buy cheap LED Display Hygrostat Room Thermostat Adjustable Temperature / Humidity IP20 from wholesalers

    Buy cheap LED Display Hygrostat Room Thermostat Adjustable Temperature / Humidity IP20 from wholesalers
    • Buy cheap LED Display Hygrostat Room Thermostat Adjustable Temperature / Humidity IP20 from wholesalers
    • Buy cheap LED Display Hygrostat Room Thermostat Adjustable Temperature / Humidity IP20 from wholesalers
    • Buy cheap LED Display Hygrostat Room Thermostat Adjustable Temperature / Humidity IP20 from wholesalers
    • Buy cheap LED Display Hygrostat Room Thermostat Adjustable Temperature / Humidity IP20 from wholesalers

    LED Display Hygrostat Room Thermostat Adjustable Temperature / Humidity IP20

    Ask Lasest Price
    Brand Name : Winston/OEM
    Model Number : EFR012
    Certification : CE,ROSH
    Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD
    Supply Ability : 10000PCS/Month
    Delivery Time : 3-15days after get payment.
    • Product Details
    • Company Profile

    LED Display Hygrostat Room Thermostat Adjustable Temperature / Humidity IP20

    LED Display Hygrostat Room Thermostat Adjustable Temperature / Humidity IP20


    ● Temperature and humidity adjustable

    ● Optical operating display(LED)

    ● High switching capacity

    ● Clip fixing


    The electronic hygrotherm senses the ambient temperature and relative humidity in an enclosure with electric/electronic components, and turns on a heater (or alternatively, a fan) at either set point, helping prevent the formation of condensation in the enclosure. The LED integrated in the adjustment knob on the active controller is lit when the connected device is in operation.

    TECHNICAL PARAMETER

    Switch difference temperature)

    4K (±1K tolerance) at 20°C/68°F

    Sensor element

    NTC

    Reaction time(humidity)

    approx.5 sec

    Contact type

    Change-over

    Service life

    > 50000 cycles

    Max.Switching capacity(Relay output)

    240VAC, 8 (1.6) A


    120VAC, 8 (1.6) A


    24VDC, 4A

    Optical indicator

    LED

    Connection

    1.5 mm ⊃ 2; 5 terminals, clamping torque is less than 0.5 2.5 mm ⊃ 2; Rigid conductor line:

    Mounting

    Clip for 35mm DIN rail, EN6075 or for exit filter EF 118 Series

    Casing

    Plastic according to UL94 V-0, light grey

    Dimensions

    64.5 x 42 x 38mm

    Weight

    Approx.70g

    Fitting position

    Vertical

    Operating/Storage temperature

    0 to +60°C (+32 to +140°F) / -20 to +80°C (-4 to +176°F)

    Operating/storage humidity

    90% RH

    Protection type

    IP20

    WIRING DIAGRAM

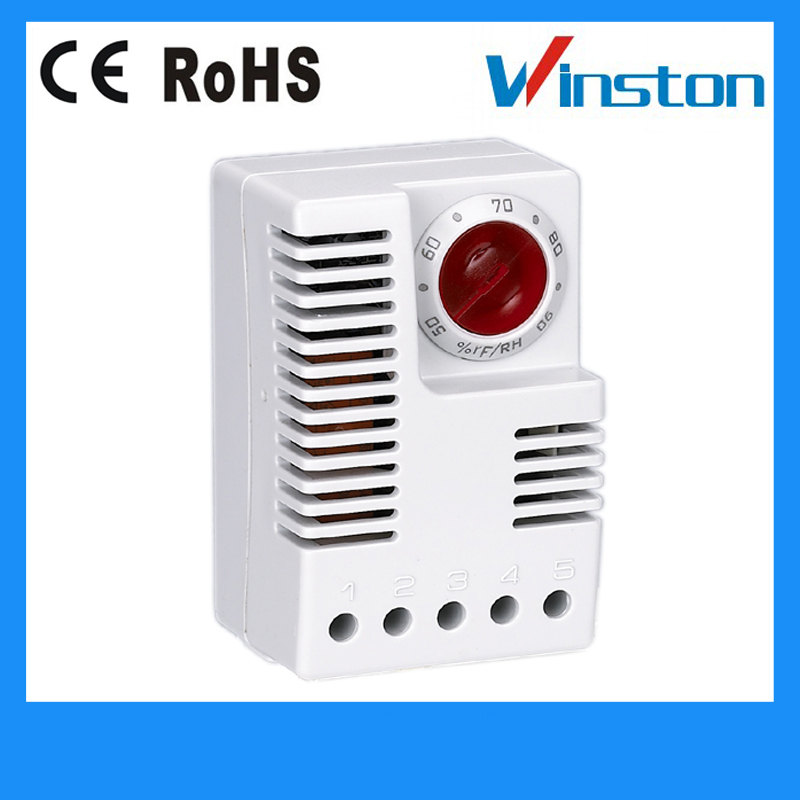

    PRODUCT PICUTRE



    Our Services
    • Customized Samples are acceptable
    • Accept different payment methods, such as T/T, L/C, Western Union, Escrow to meet your different financial requirements
    • Welcome and accept 100% customers factory inspection before the production
    • Supply skills training including product basic knowledge, installation, operation, maintenance skills training for the local people
    • We provide 7 days 24 hours service!
