    Heat Dissipation Dual Air Condition Thermostat 10A Normally Open / Closed

    Ask Lasest Price
    Brand Name : Winston/OEM
    Model Number : ZR011
    Certification : CE,ROSH
    Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD
    Supply Ability : 10000PCS/Month
    Delivery Time : 3-15days after get payment.
    • Product Details
    • Company Profile

    Heat Dissipation Dual Air Condition Thermostat 10A Normally Open / Closed

    Heat Dissipation Dual Air Condition Thermostat 10A Normally Open / Closed


    Dual Thermostat ZR 011
    ● No and Nc in one casing
    ● Separate adjustable temperatures
    ● High switching capacity
    ● Terminals easily accessible
    ● Clip fixing

    Two thermostats in one casing:
    Thermostat (contact breaker, normally closed) for regulating heaters.
    Thermostat (contact maker, normally open) for regulating filter fans and heat exchangers or switching signal devices when temperature limit has been exceeded.
    Heaters and cooling equipment can be switched independently from each other with a temperature offset as opposed to the usual change-over contacts.


    The ZR011 houses two separate themostats,allowing the independent control of heating and cooling or other equipment


    Thermostat NC(normally closed)

    Thermostat opens at temperature rise-for regulating heaters or for swithching signal devices.

    Comes with red temperature dial.


    Thermostat NO(Normally open)


    Thermostat closes at temperature rise- for regulating filter fans and heat exchangers or for swithing signal devices.Comes with blue temperature dial.

    TECHNICAL PARAMETER

    Switch temperature difference

    7K (± 4K tolerance)

    Sensor element

    thermostatic bimetal

    Contact type

    snap-action contact

    Service life

    > 100 000 cycles

    Max. switching capacity

    250VAC, 10 (2) A


    120VAC, 15 (2) A


    DC 30W

    Connection

    4-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm²,

    stranded wire (with wire end ferrule) 1.5mm²

    Mounting

    clip for 35mm DIN rail, EN60715

    Casing

    plastic according to UL94 V-0. light grey

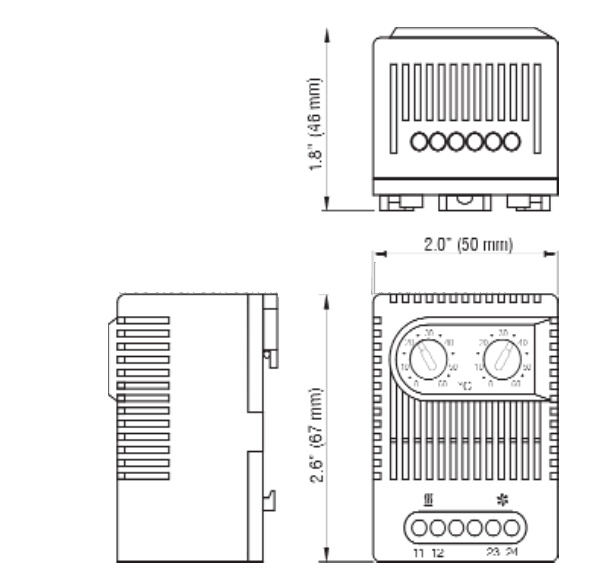

    Dimensions

    67 x 50 x 46mm

    Weight

    approx. 90g

    Fitting position

    variable

    Operating/Storage temperature

    -45 to +80°C (-49 to +176°F)

    Operating / Storage humidity

    max. 90 % RH (non-condensing)

    Protection type

    IP20

    Approvals

    UL File No. E164102

    WIRING DIAGRAM


    PRODUCT PICTURE
