Cold Start Current Switching Power Supply , Low Voltage Power Supply

Ask Lasest Price
Brand Name :	Winston/OEM
Model Number :	T-60
Certification :	CE,ROSH
Price :	Negotiable
Payment Terms :	T/T,L/C,Paypal,Online Payment,RMB/USD
Supply Ability :	10000PCS/Month
Delivery Time :	3-15days after get payment.

Add to Cart

Product Details
Company Profile

Cold Start Current Switching Power Supply , Low Voltage Power Supply

Cold Start Current Switching Power Supply , Low Voltage Power Supply

Description:

1 . T-60 Triple output switching power supply
2 . Low price and high reliability
3 . 105℃ output capacitor
4 . AC input power suitable for the world
5 . Soft-start current can reduce the AC input impact effecticly
6 . Compact size,light weight
7 . 100% full-load burning test
8 . Installed with EMI filter,minimum wave

Specification:

Model Specification	T-60A			T-60B			T-60C
Model Specification	CH1	CH2	CH3	CH1	CH2	CH3	CH1	CH2	CH3
DC output voltage	5V	12V	-5V	5V	12V	-12V	5V	15V	-15V
Output voltage error (Note:2)	±2%	±6%	±6%	±2%	±6%	±6%	±2%	±6%	±6%
Rated output current	5A	2.5A	0.5A	5A	2.5A	0.5A	5A	2.5A	0.5A
Output current rage	0.5-7A	0.2-3.5A	0-0.1A	0.5-7A	0.2-3.5A	0-0.1A	0.5-7A	0.2-3.5A	0-0.1A
Wave and noise(Note :3)	100mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p
Inlet stability(Note :4)	±0.5%	±1%	±0.5%	±0.5%	±1%	±0.5%	±0.5%	±1%	±0.5%
Load stablity (Note :5)	±1%	±4%	±1%	±1%	±4%	±1%	±1%	±4%	±1%
DC output power	57.5W			61W			62.5W
Efficiency	72%			72%			72%
Adjustable range for DC voltage	CH1;+10,-5%			CH1:+10,-5%			CH1:+10,-5%
AC input voltage range	85-264VAC 47-63Hz；120-370VDC
Input current	2A/115V 1A/230A
AC INnrush current	Cold-start current 30A/115V 60A/230V
Leakage current	<1mA/240VAC
Overload proctection	105%-150%Type:Foldback:current limiting reset:auto recovery
Over-voltage protection	CH1:5.75-6.75V
High-temperature protection	…………
Temperature coefficient	±0.03%/℃(0-50℃)ON+5V
Setup rise hold up time	800ms,50ms,10ms/115VAC 300ms.50ms,80ms/230VAC
Vibration	10-500Hz,2G 10min,/1cycle,Period for60min,Each axes
Withstand voltage	Input and output internal:1.5KVAC,Input and enclosure: 1.5KVAC,Output and enclosure: 0.5KVAC
Isolation resistance	Input and output internal:Input and enclosure,Output and enclosure: 500VDC/100MΩ
Working temperature and humidity	-10℃~+60℃(Refer to output derating curve),20%~90%RH
Store temperature and humidity	-20℃~+85℃.10%~95%RH
Overall dimension	159×97×38mm
Weight	0.56Kgs
Safety standards	UL 1012 TUV EN60950(IEC950,UL1950)
EMC standards	CISPR22(EN55022),class B,IEC801-2,-3,-4,IEC555-2 Verification
Note: 1. The testing condition for the paramenter above is :230VAC input,rated load,25℃70% RH.Humidity. 2. Error.include the setting error,line stability and load stability.(Note:5). 3. Wave test:adopting "A12"double wire for 20MHz,and 0.1UF&47UF capacitor short-circuit for interrupting. 4. Inlet voltage stability test:when is over load,the lowest voltage of inlet is up to the highest voltage. 5. Load stability test:the load is from 0% to 100%. 6. Total output canbe maximum Current,total load can not exceed the maximum output power. 7. C₂₃must be knocked down.

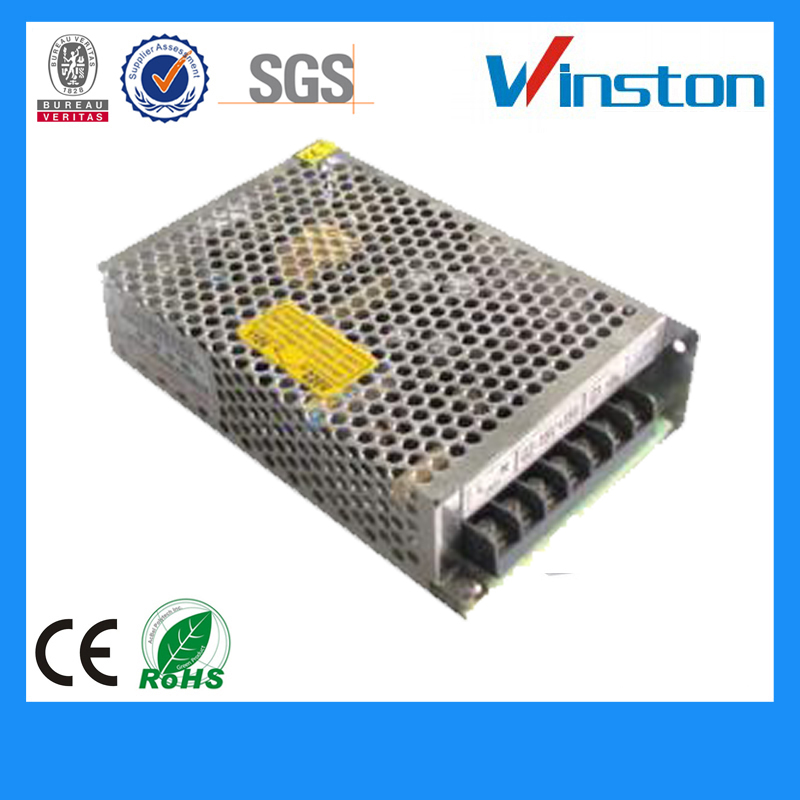

Product Picture

Dimensions

Our Services

Customized Samples are acceptable
Accept different payment methods, such as T/T, L/C, Western Union, Escrow to meet your different financial requirements
Welcome and accept 100% customers factory inspection before the production
Supply skills training including product basic knowledge, installation, operation, maintenance skills training for the local people
We provide 7 days 24 hours service!

PS:If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.
