    Input AC Winston Switching Power Supply 0.5A , Triple Power Supply

    Ask Lasest Price
    Brand Name : Winston/OEM
    Model Number : T-30
    Certification : CE,ROSH
    Price : Negotiable
    Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD
    Supply Ability : 10000PCS/Month
    Delivery Time : 3-15days after get payment.
    • Product Details
    • Company Profile

    Input AC Winston Switching Power Supply 0.5A , Triple Power Supply

    Input AC Winston Switching Power Supply 0.5A , Triple Power Supply


    Product Description:

    1. D-50 Daul output switching power supply
    2. Low price and high reliability
    3. 105℃ output capacitor
    4. AC input power suitable for the world
    5. Hight efficiency and low operation temperature
    6. Soft-start current can reduce the AC input impact effecticly
    7. Compact size,light weight
    8. 100% full-load burning test
    9. Installed with EMI filter,minimum wave

    Technique parameter:

    ModelT-30AT-30B
    SpecificationCH1CH2CH3CH1CH2CH3
    DC output voltage5V12V-5V5V24V-12V
    Output voltage error(Note,2)±2%+2,-6%+2,-10%±2%+2,-10%±6%
    Rated output current3A1A0.5A3A1A0.5A
    Output current rage0.5-3A0.1-1A0.1-0.5A0.5-3A0.1-1A0.1-0.5A
    Wave and noise(Note ,3)50mVp-p100mVp-p50mVp-p50mVp-p100mVp-p100mVp-p
    Inlet stability(Note ,4)±0.5%±1%±1%±0.5%±1%±1%
    Load stablity (Note ,5)±0.5%±5%±5%±0.5%±5%±5%
    DC output power30W33W
    Efficiency70%72%
    Adjustable range for DC voltageCH1,+10,-5%CH1,+10,-5%
    AC input voltage range85-132VAC/170-264VAC selected by switch 47-63Hz,240-370VDC
    Input current0.8A/115V 0.45A/230A
    AC INnrush currentCold-start current35A
    Leakage current<0.5mA/240VAC
    Overload proctection105%-150%Type,Foldback:current limiting reset,auto recovery
    Over-voltage protection…………
    High-temperature protection…………
    Temperature coefficient±0.03%/°C(0-50°C)
    Setup rise hold up time200ms,100ms,30ms
    Vibration10-500Hz,2G 10min,/1cycle,Period for60min,Each axes
    Withstand voltageInput and output internal,1.5KVAC,Input and enclosure,1.5KVAC,Output and enclosure,0.5KVAC
    Isolation resistanceInput and output internal,Input and enclosure,Output and enclosure,500VDC/100MΩ
    Working temperature and humidity-10°C~+60°C(Refer to output derating curve),20%~90%RH
    Store temperature and humidity-20°C~+85°C.10%~95%RH
    Overall dimension129×98×38mm
    Weight0.4Kgs
    Safety standardsMeet UL 1012R requirement (Not apply for the mark)
    EMC standardsMeet FCC Part15 J Conduction class A
    Note
    1. The testing condition for the paramenter above is ,230VAC input,rated load,25°C70% RH.Humidity.
    2. Error.include the setting error,line stability and load stability.(Note:5).
    3. Wave test:adopting "A12"double wire for 20MHz,and 0.1UF&47UF capacitor short-circuit for interrupting.
    4. Inlet voltage stability test:when is over load,the lowest voltage of inlet is up to the highest voltage.
    5. Load stability test:the load is from 0% to 100%.

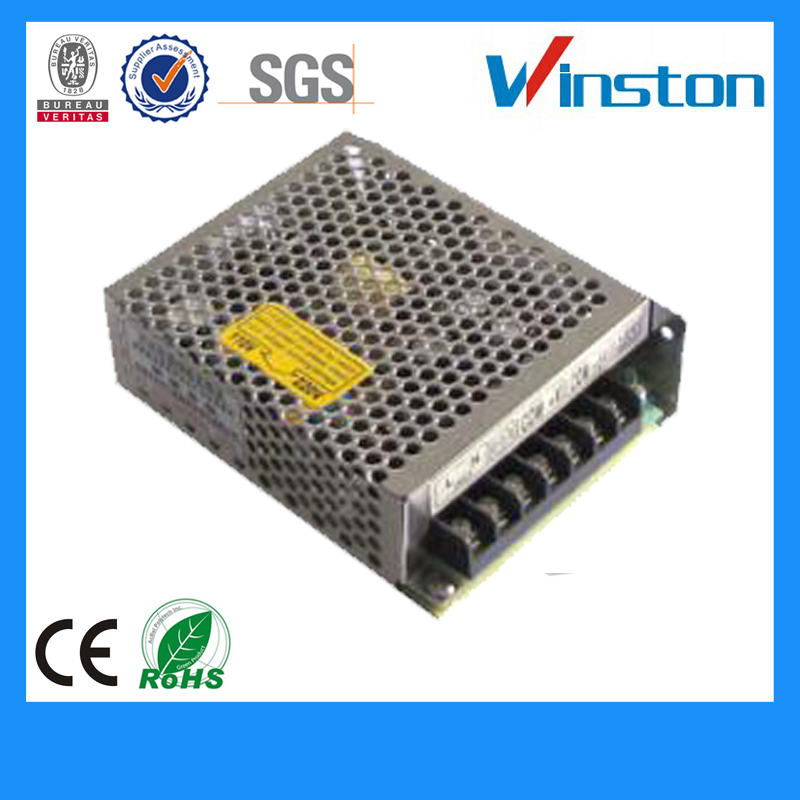

    Product Picture



    Dimensions


    Our Services
    • Customized Samples are acceptable
    • Accept different payment methods, such as T/T, L/C, Western Union, Escrow to meet your different financial requirements
    • Welcome and accept 100% customers factory inspection before the production
    • Supply skills training including product basic knowledge, installation, operation, maintenance skills training for the local people
    • We provide 7 days 24 hours service!

    PS: If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.
