    0.55Kg High Reliability Switch Mode Power Supplies Customized 159 X 98 X 38 MM

    Ask Lasest Price
    Brand Name : Winston/OEM
    Model Number : D-60
    Certification : CE,ROSH
    Price : Negotiable
    Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD
    Supply Ability : 10000PCS/Month
    Delivery Time : 3-15days after get payment.
    • Product Details
    • Company Profile

    0.55Kg High Reliability Switch Mode Power Supplies Customized 159 X 98 X 38 MM

    0.55Kg High Reliability Switch Mode Power Supplies Customized 159 X 98 X 38 MM


    Description:


    1 . Competitived price and high reliability

    2 . AC input power suitable for the world

    3 . High efficiency and low operation temperature

    4 . Soft-start current can reduce the AC input impact effect

    5 . With short-circuit and overload protection

    6 . Compact size, light weight

    7 . Installed with EMI filter, minimum wave

    Specification:


    ModelD-60AD-60B
    PerformanceCH1CH2CH1CH2
    DC output voltage5V12V5V24V
    Output Voltage Tolerance (Note 2)±2%± 6%±2%±5%
    Rated output current4A3A3A1.8A
    Output Current Range0.3-6A0.2-4A0.3-6A0.2 -2.2A
    Ripple and noise (Note 3)75mVp-p150mVp-p75mVp-p150mVp-p
    Into the line of stability (Note 4)± 0.5%± 1%± 0.5%± 0.5%
    Load stability (Note 5)± 0.5%± 4%± 0.5%± 4%
    DC output power56W58W
    Efficiency73%76%
    DC voltage adjustable rangeCH1: +10, -5%CH1: +10, -5%
    Input Voltage Range85 ~ 264VAC 47 ~ 63Hz
    Input Current2A /115V,1A/230V
    Inrush CurrentCurrent 30A/115V 60A/230V cold start
    Leakage<1A /240VAC
    Overload105% ~ 150% Type: PULSING HICCUP SHUTDOWN RESET: Automatic recovery
    Over Voltage ProtectionCH1:5.75 ~ 6.73V
    Temperature Protection…… ... ...
    Temperature Coefficient± 0.03%/ °C (0 ~ 50°C) ON+5V OUTPUT
    Start, rise, hold time800ms,50ms,10ms/115VAC 300ms,50ms,80ms/230VAC
    Earthquake resistance10 ~ 500Hz, 2G 10min. / 1 cycle, duration 60 minutes, each axis
    Pressure ofBetween input and output: 3KvAC,input and shell: 1.5KvAC, output and shell: 0.5KvAC
    Isolation ResistanceInput and output, input and shell, shell and output: 500VDC/100M Ohms
    Temperature, humidity-10°C ~ + 60°C , 20% ~ 90% RH
    Storage temperature, temperature-20°C~ + 85°C,10% ~ 95% RH
    Dimensions159*97* 38mm
    Weight0.55Kgs
    Safety StandardsTo meet the UL1012 TUV (En60950), IEC950 certified
    EMC StandardsCISPR22 (EN55022) CLASS B, IEC801-2, 3,4 IEC555-2

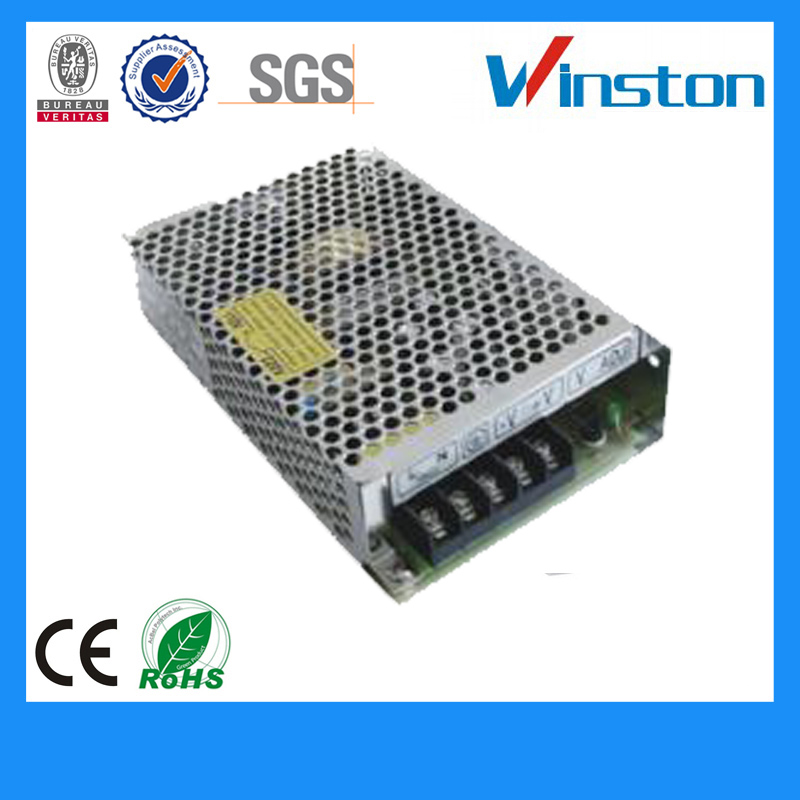

    Product Picture



    Our Services
    • Customized Samples are acceptable
    • Accept different payment methods, such as T/T, L/C, Western Union, Escrow to meet your different financial requirements
    • Welcome and accept 100% customers factory inspection before the production
    • Supply skills training including product basic knowledge, installation, operation, maintenance skills training for the local people
    • We provide 7 days 24 hours service!

    PS: If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.
