    Efficient Regulated Switching Power Supply Waterproof 36V 5V LPV-20

    Ask Lasest Price
    Brand Name : Winston/OEM
    Model Number : LPV-20
    Certification : CE,ROSH
    Price : Negotiable
    Payment Terms : T/T,L/C,Paypal,Online Payment,RMB/USD
    Supply Ability : 10000PCS/Month
    Delivery Time : 3-15days after get payment.
    • Product Details
    • Company Profile

    Efficient Regulated Switching Power Supply Waterproof 36V 5V LPV-20

    Efficient Regulated Switching Power Supply Waterproof 36V 5V LPV-20


    Features:


    1 . Constant voltage style power supply
    2 . 180~264VAC AC input
    3 · Small volume,low weight,high efficiency
    4 · Protections:short circuit/over load/over voltage/over temp
    5 · Cooling by free air convection
    6 · Fully encapsulated with IP67 level
    7 · 100% full load burn-in test

    Specification:


    ModelLPV-20-12LPV-20-24LPV-20-36
    outputDC voltage12V24V36V
    Voltage tolerance±1%±1%±1%
    Rated current1.7A0.8A0.6A
    Current range0~1.7A0~0.8A0~0.6A
    Rated power20.4W19.2W21.6W
    Ripple&noise100mvp-p100mvp-p150mvp-p
    inputVoltage range170~264VAC,235~373VDC
    Frequency47~63HZ
    AC current0.28A/230VAC
    Efficiency78%80%82%
    Inrush currentCold start current 30A/230VAC
    Leakage current<0.5mA/240VAC
    protectionOver loadRated output power 105%~135%start over load protection
    Protection type:hiccup mode,auto-recovery after fault condition is removed
    Over voltage15.6~17.8V30.6~33.2V42.6~44.2V
    Protection type:hiccup mode,auto-recovery after fault condition is removed
    Over temperaturewhen temperature of transistor inner node is over 150°C,start over temperature protection
    Protection mode:cutoff output,auto-recovery after temperature become normal
    environmentWorkingtemp,humidity-10°C~+60°C,20%~90%RH
    Storage temp.humidity-20°C~+85°C,10%~95%RH non condensing
    Withstand vibration10~500HZ,2G 10min/1cycle,period for 60minutes,each axes
    safetyWithstand voltageI/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
    Isolated resistanceI/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC
    FitsSafety standardFit UL1012,IP67 protect level
    tandardEMC standardFit EN55022,CLASSA
    OthersDimension182*30*20mm (L*W*H)
    Weight/packing0.22kg/100pcs/23kg/0.033 m⊃3;/1.18CUFT
    Note1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature.
    2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
    3. Tolerance : includes set up tolerance, line regulation and load regulation.

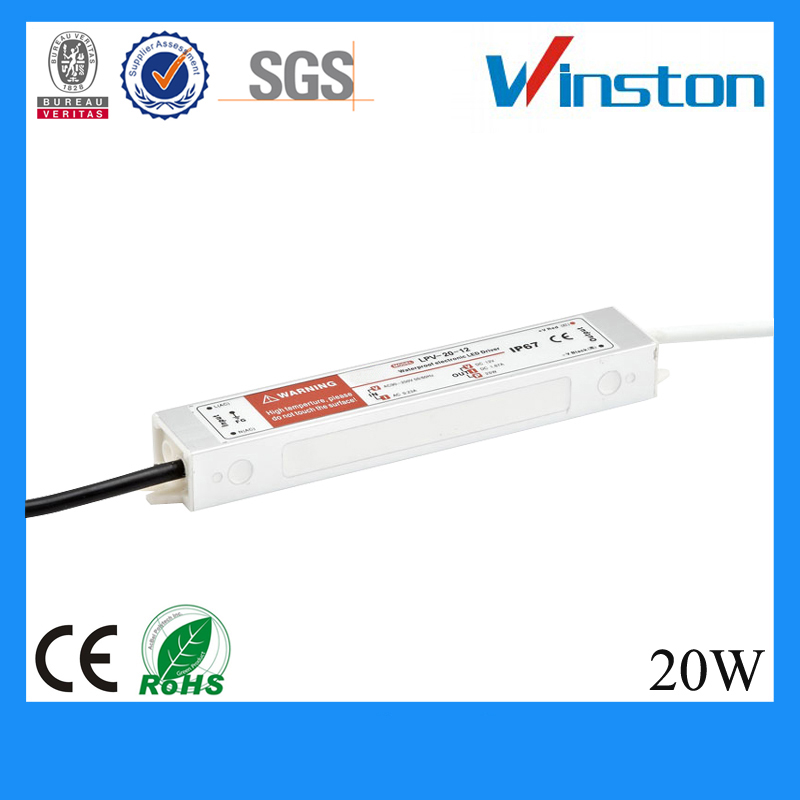

    Product Picture



    Dimension



    Our Services
    • Customized Samples are acceptable
    • Accept different payment methods, such as T/T, L/C, Western Union, Escrow to meet your different financial requirements
    • Welcome and accept 100% customers factory inspection before the production
    • Supply skills training including product basic knowledge, installation, operation, maintenance skills training for the local people
    • We provide 7 days 24 hours service!

    PS: If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.
